MP-20x Telephone Adapter 2. Cabling the MP-20x Telephone Adapter
2 Cabling the MP-20x Telephone Adapter
¾ To cable the MP-20x:
1. Connect the MP-20x's Ethernet 10/100 Base-T RJ-45 connector labeled WAN to your
cable or DSL modem (or other network connection).
2. Connect the MP-20x's Ethernet 10/100 Base-T RJ-45 connector labeled LAN/PC to a
computer.
3. Optionally, you can connect the MP-20x's connector labeled LAN/PC to a switch / hub
and connect multiple PCs to the latter.
4. Connect the MP-20x's RJ-11 ports labeled PHONE 1, PHONE 2 and so on (number of
ports depends on model) to analog telephones.
5. Connect the power cable to the electrical outlet using the AC/DC power adapter; the
POWER LED is lit (green) and when initialization completes (~ 1 minute), the STATUS
LED changes from red to green.

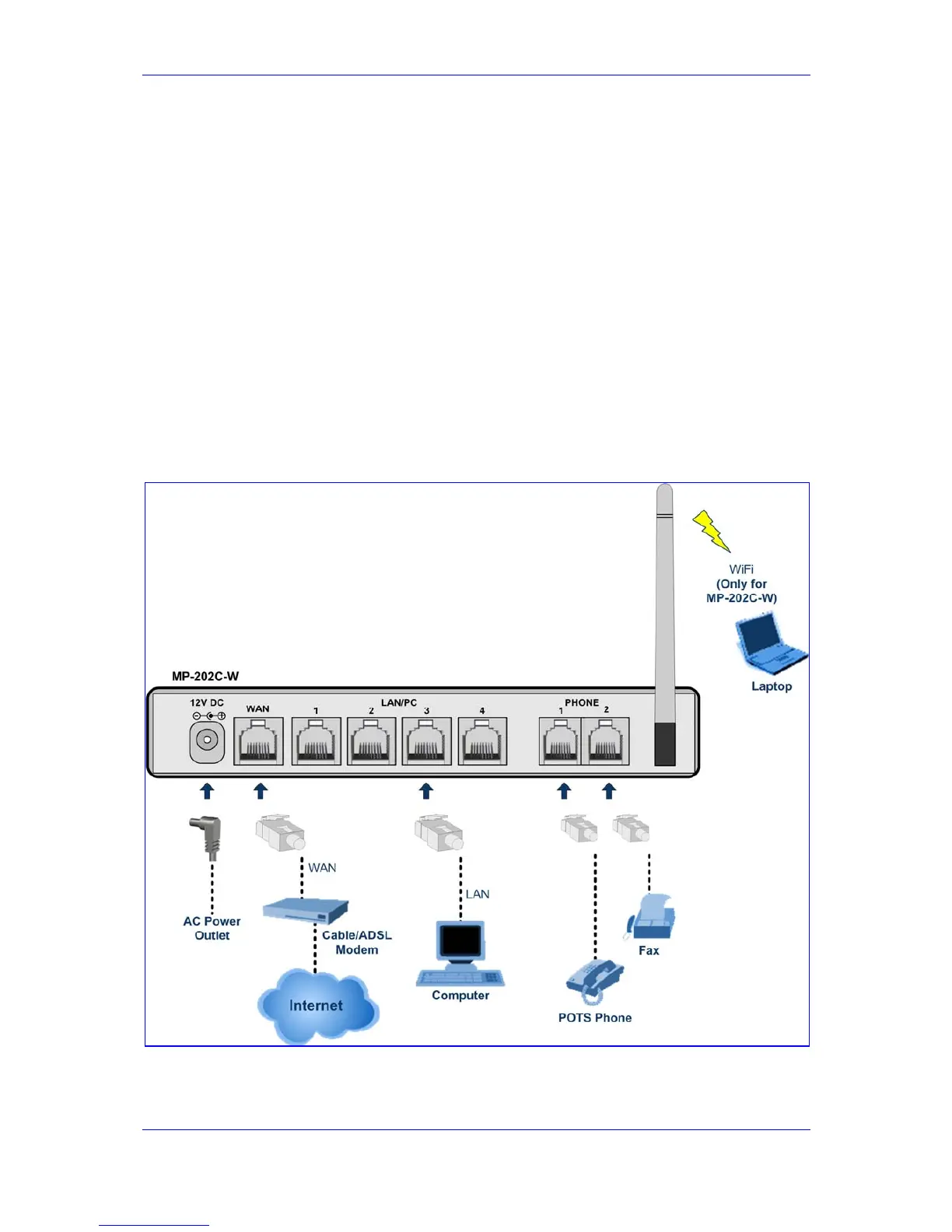

Figure 2-1: Cabling the Device (Example using MP-202C-W)
