The network map depicts various network elements, from top to bottom:
1. External network interface (WAN Internet connection)
2. Firewall
3. MP-20x
4. Telephones, LAN network computers, and peripherals connected to MP-20x
The table below describes the different network map icons:

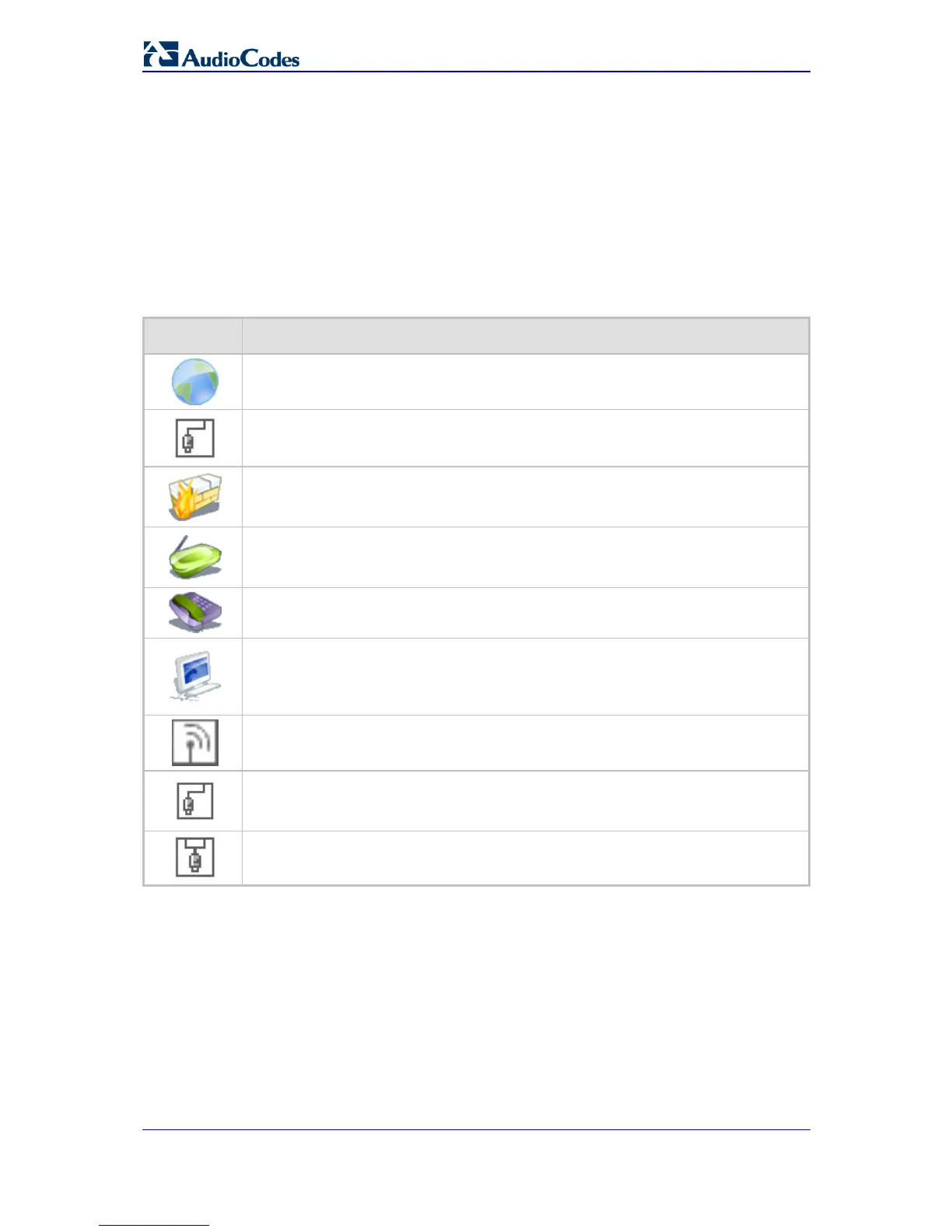

Table 4-1: Network Map Icons
Icon Description
Represents the Internet. Clicking this icon redirects you to the 'Quick Setup' screen.
Represents your Ethernet Wide Area Network (WAN) connection. Click this icon to
configure the WAN interface.
Represents the Telephone Adapter's firewall. The height of the wall (yellow "bricks")
corresponds to the security level currently selected: Minimum, Typical or Maximum.
Click this icon to configure security settings.
Represents the Telephone Adapter's model and displays the software version
currently running on the device. Click this icon to access the 'Quick Setup' screen for
performing basic device configuration.
Represents an analog telephone connected to the device. Click this icon to configure
the line settings.
Represents a computer (host) connected in the home network. Each computer
connected to the network appears below the network symbol of the network through
which it is connected. Click an icon to view network information for the corresponding
computer.
Represents a Wi-Fi connection to connect to a LAN device (PC). Click this icon to
configure the LAN wireless access properties for the device.
Represents an Ethernet Local Area Network (LAN) connection to a LAN device. Click
this icon to configure network parameters for the Ethernet LAN device. If there is no
connection to a connected PC, an "X" appears on the connecting line.
Represents a bridge connected in the home network. Click this icon to view the
bridge's underlying devices.
