CESAB S214L User Manual

© Cesab 9 – 1 T Code(s): 841, 842, 843
Repair manual: Chassis 0000 Model(s): S210, S212, S212S, S212L, S214, S214L, S220D
Publication Number: 7588857-040 Date: 2018-05-01 Applies from serial number: 6384351-
9. Chassis 0000
9.1 Support arm 0350

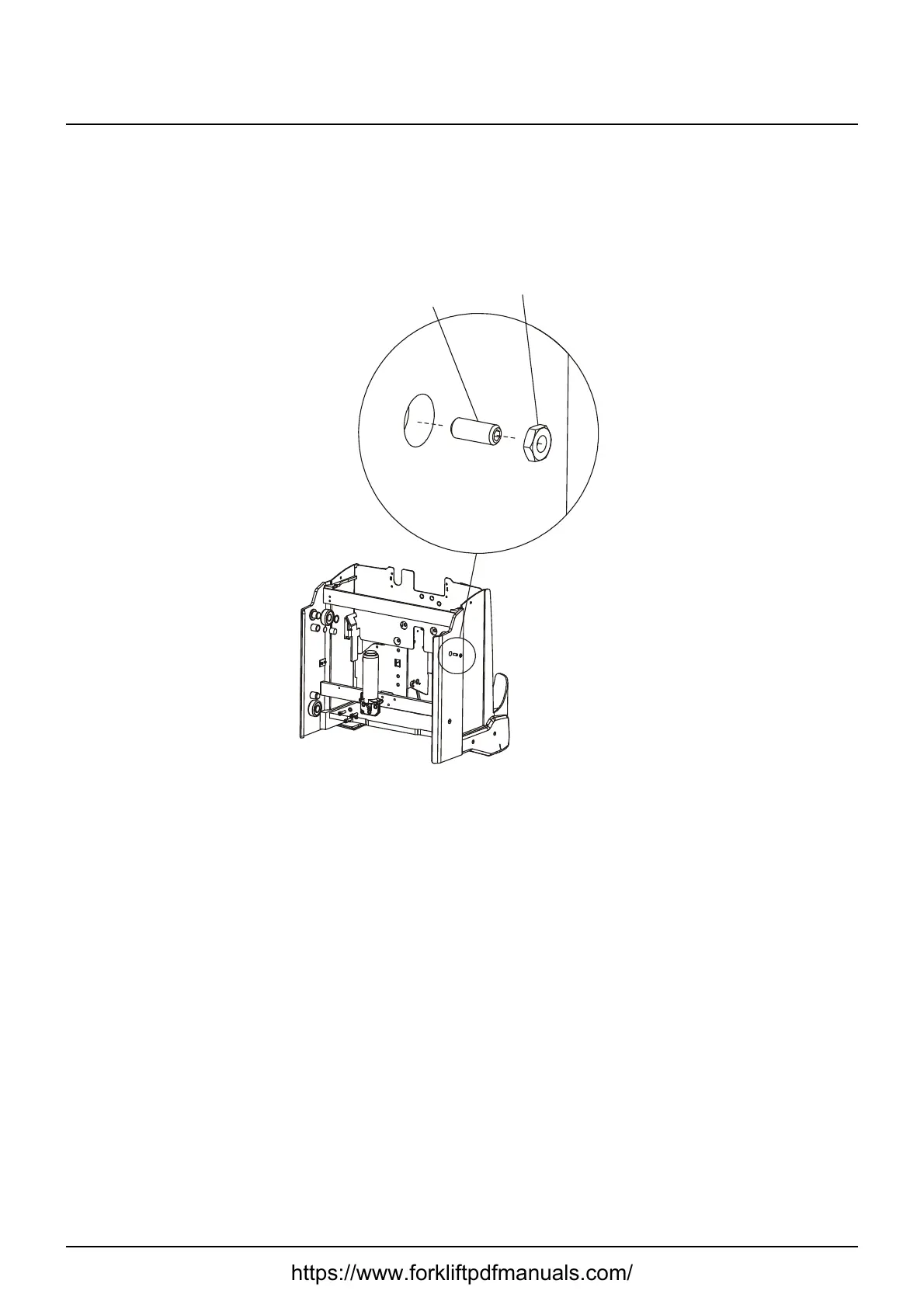

9.1.1 Support arm lift, lateral adjustment
1. Loosen the locking nut
2. Adjust the lateral guides using the adjustment screw (b). There are four
adjustment screws.
3. Adjust the lateral guides so that there is no play but so that the lowering
does not jam.
4. Lock the adjustment screws position with the locking nut.
b
a
https://www.forkliftpdfmanuals.com/
