© Cesab 10 – 6 T Code(s): 841, 842, 843
Repair manual: Electric drive motor 1700 Model(s): S210, S212, S212S, S212L, S214, S214L, S220D
Publication Number: 7588857-040 Date: 2018-05-01 Applies from serial number: 6384351-

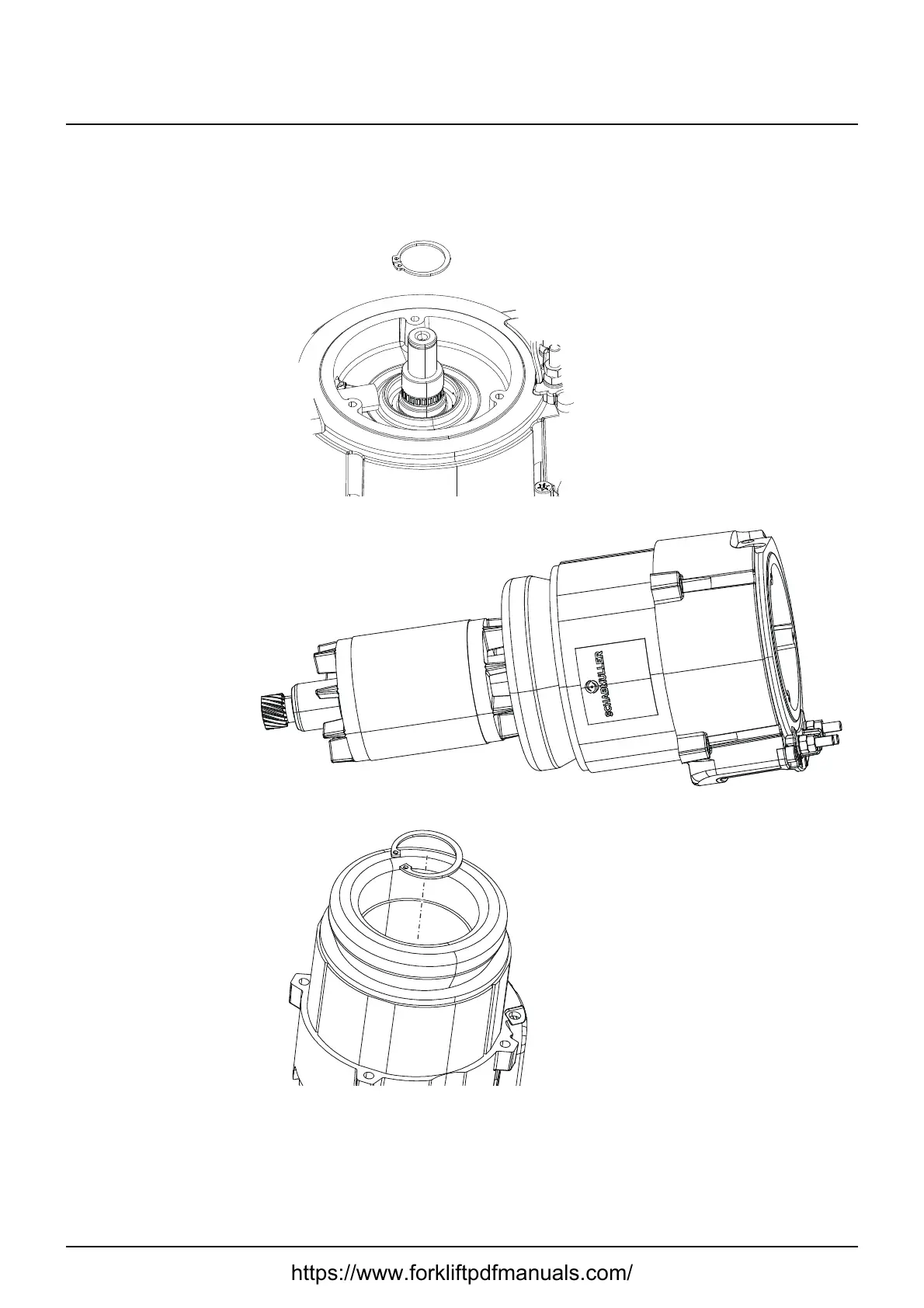

10.4 Removing motor bearings
• Remove the toothed wheel Page 10–4
6. Remove the circlip from above
7. Carefully knock out the stator
8. Remove the circlip inside the motor
