© Cesab 13 – 8 T Code(s): 841, 842, 843
Repair manual: Tiller arm 4000 Model(s): S210, S212, S212S, S212L, S214, S214L, S220D
Publication Number: 7588857-040 Date: 2018-05-01 Applies from serial number: 6384351-
13.5.4 Replacing the upper cover C4110
Removing the upper cover
• Remove the keypad. Page 13–7

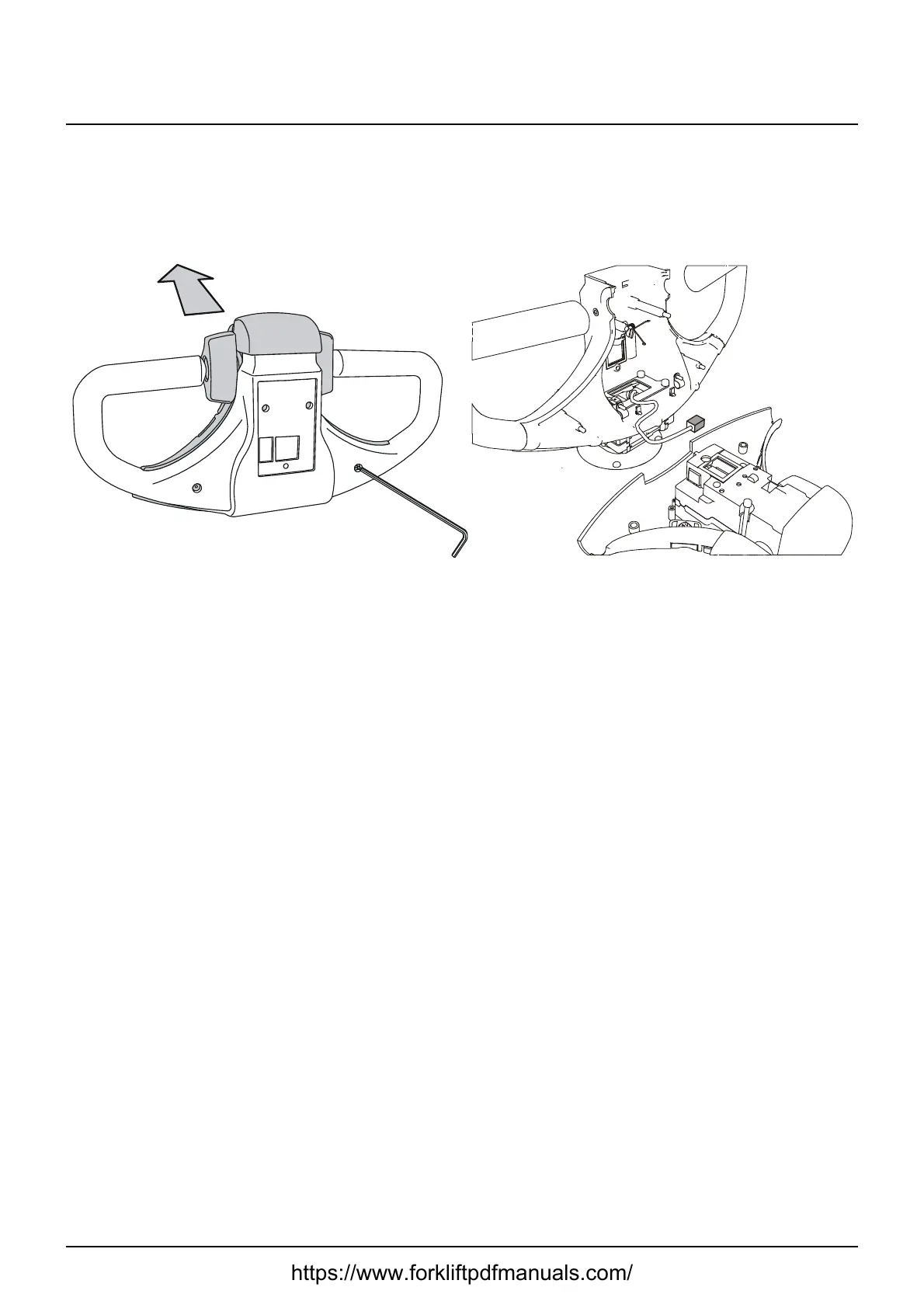

1: Remove the screws holding the upper cover and keep hold of the upper
cover to prevent damage to the cable to the logic board
2: Disconnect the CAN connection to the logic card
