© Cesab 12 – 6 T Code(s): 841, 842, 843
Repair manual: Brake system/Wheels C3000 Model(s): S210, S212, S212S, S212L, S214, S214L, S220D
Publication Number: 7588857-040 Date: 2018-05-01 Applies from serial number: 6384351-
12.5 Checking the air gap
• Remove the parking brake
1: Place the parking brake on a workbench with the magnet housing facing
downwards.

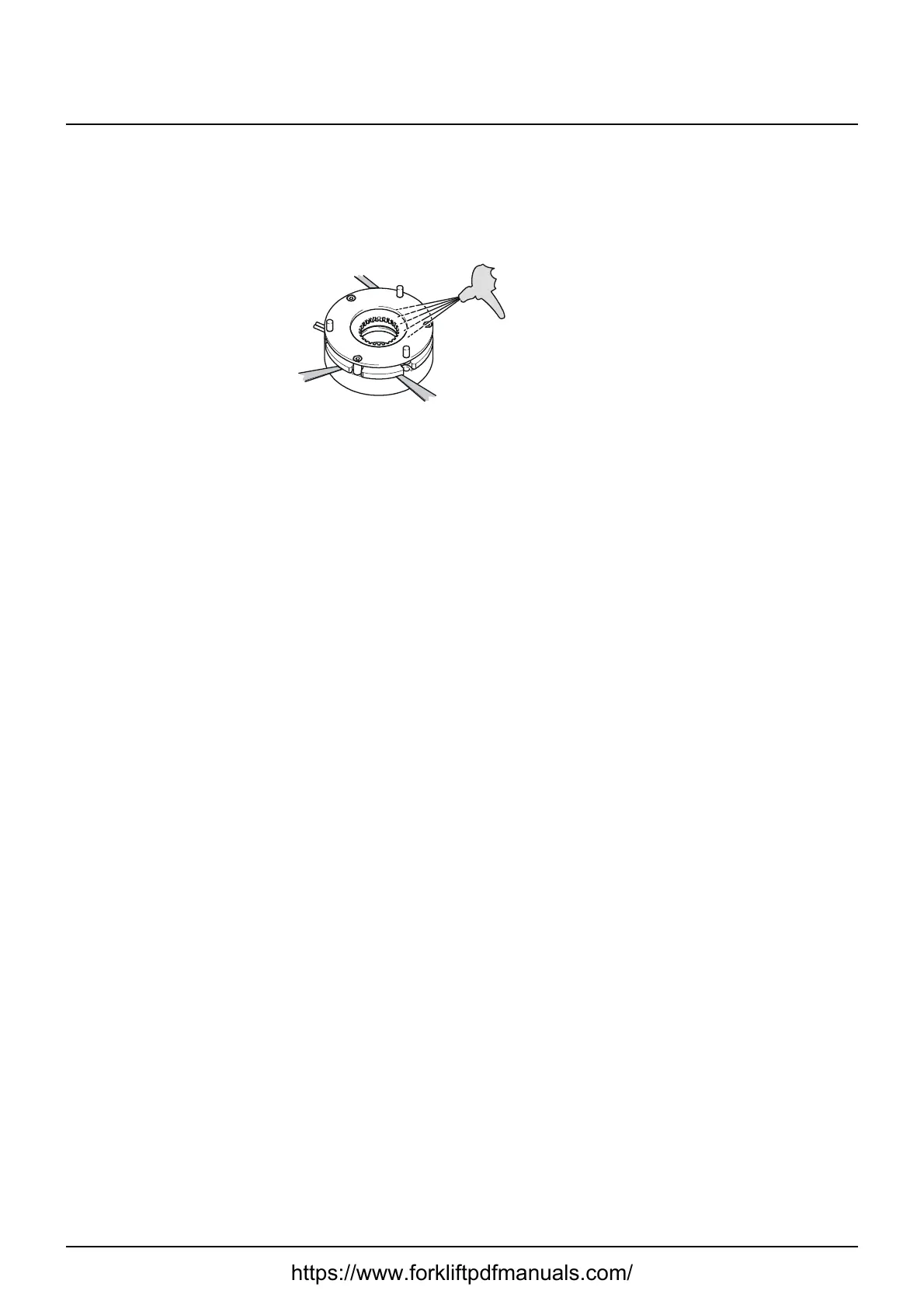

2. Clean the brake using compressed air. Clean from the inside outwards.
3. If there are particles that cannot be cleared away with compressed air,
these may be carefully scraped away.
Measure the air gap between the magnet housing of the brake unit and
the movable pressure disc. Measuring must be done around the entire
pressure disc, both on the inside and the outside.
Note:
It is most important to maintain a clearance of 0.2-0.7mm all around the
brake. If the prescribed measurement cannot be maintained, the brake must
be replaced
Steps 1, 2 and 3
Spacing=0.2 - 0.7mm
