© Cesab 9 – 5 T Code(s): 841, 842, 843
Repair manual: Chassis 0000 Model(s): S210, S212, S212S, S212L, S214, S214L, S220D
Publication Number: 7588857-040 Date: 2018-05-01 Applies from serial number: 6384351-

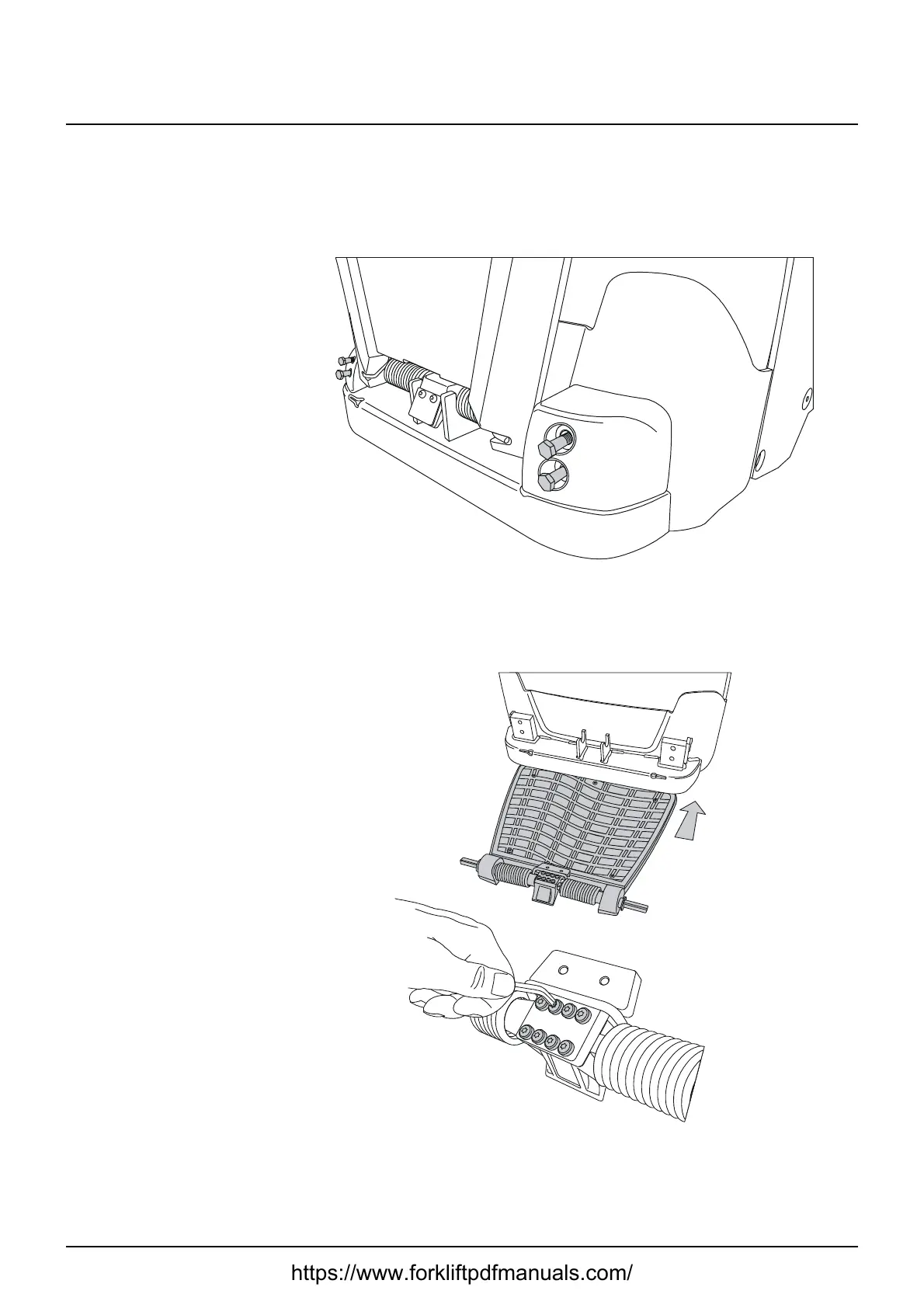

9.3 Removing the platform
1. Apply a load on the platform and loosen the upper dampening stop to-
gether with the spring cover plate.
2. Disassemble the platform from the truck by loosening the four bolts.
3. Put the platform on the floor behind the truck with the spring facing you
and placing the other edge under the truck's foot guard.
4. Loosen all 8 screws securing the bracket, which the spring clamp is push-
ing against.
