Repair manual: Brake system/Wheels C3000 Model(s): S210, S212, S212S, S212L, S214, S214L, S220D
Publication Number: 7588857-040 Date: 2018-05-01 Applies from serial number: 6384351-

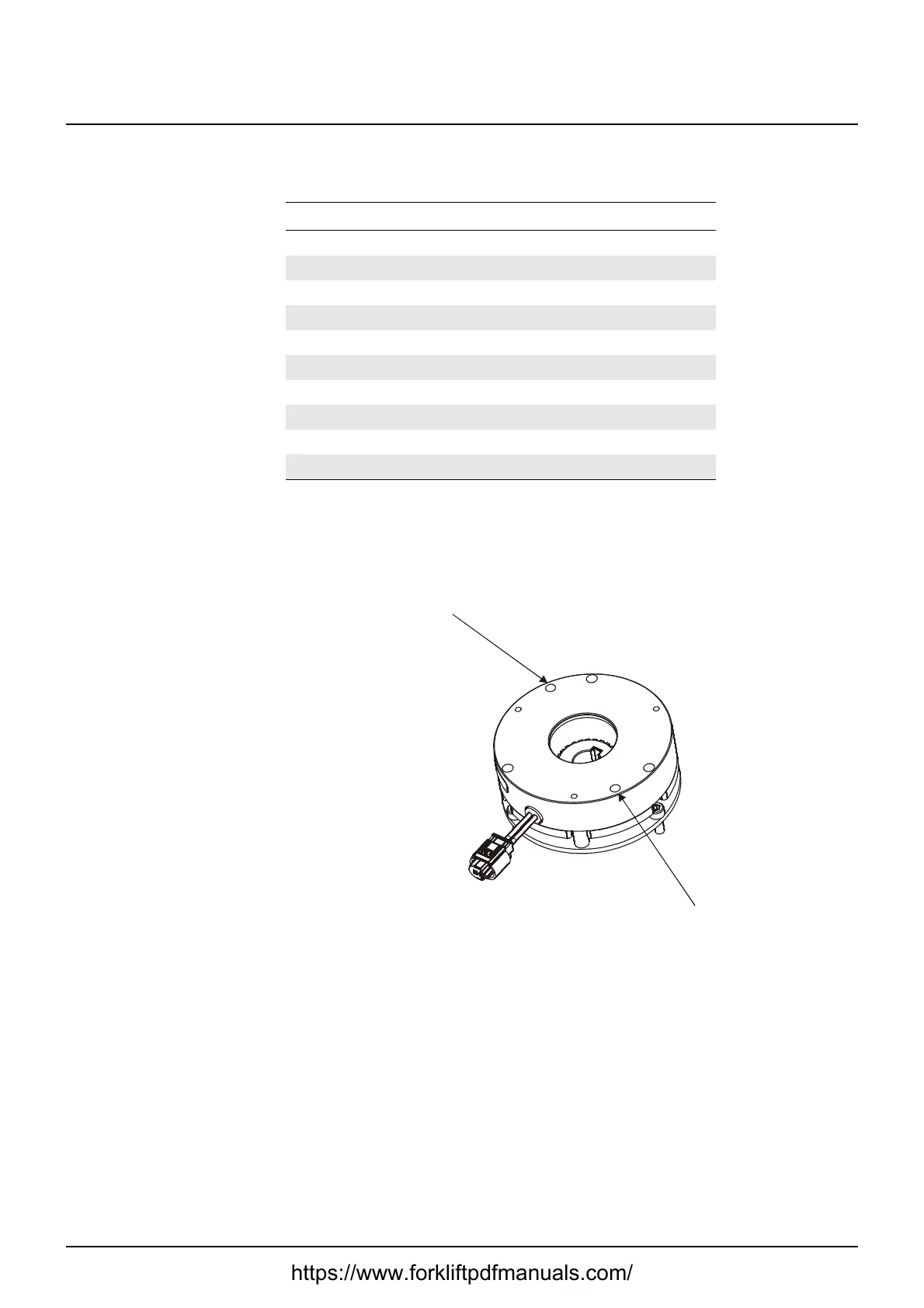

12.2.2 Emergency release of the parking brake
Note:
An emergency release of the brakes should only be performed when the
truck needs to be moved in connection with work for service and repairs.
The brakes on the truck can be manually released by screwing two screws
(M5) into the holes (A). The screws should be 30-35 mm long.
Note:
Remember to remove the screws before operating the truck again.
Pos. no. Description
a Dust seal
b O-ring
c Dust seal
d Wiring harness
e Magnet housing
f Dust seal
g Friction disc
h Hub
i Pressure disc
j Mounting plate
A
A
