© Cesab 15 – 12 T Code(s): 841, 842, 843
Repair manual: Hydraulic system 6000 Model(s): S210, S212, S212S, S212L, S214, S214L, S220D
Publication Number: 7588857-040 Date: 2018-05-01 Applies from serial number: 6384351-
15.8 Disassembling the hydraulic unit
Before commencing any work on the hydraulic unit, make sure the forks have
been fully lowered.

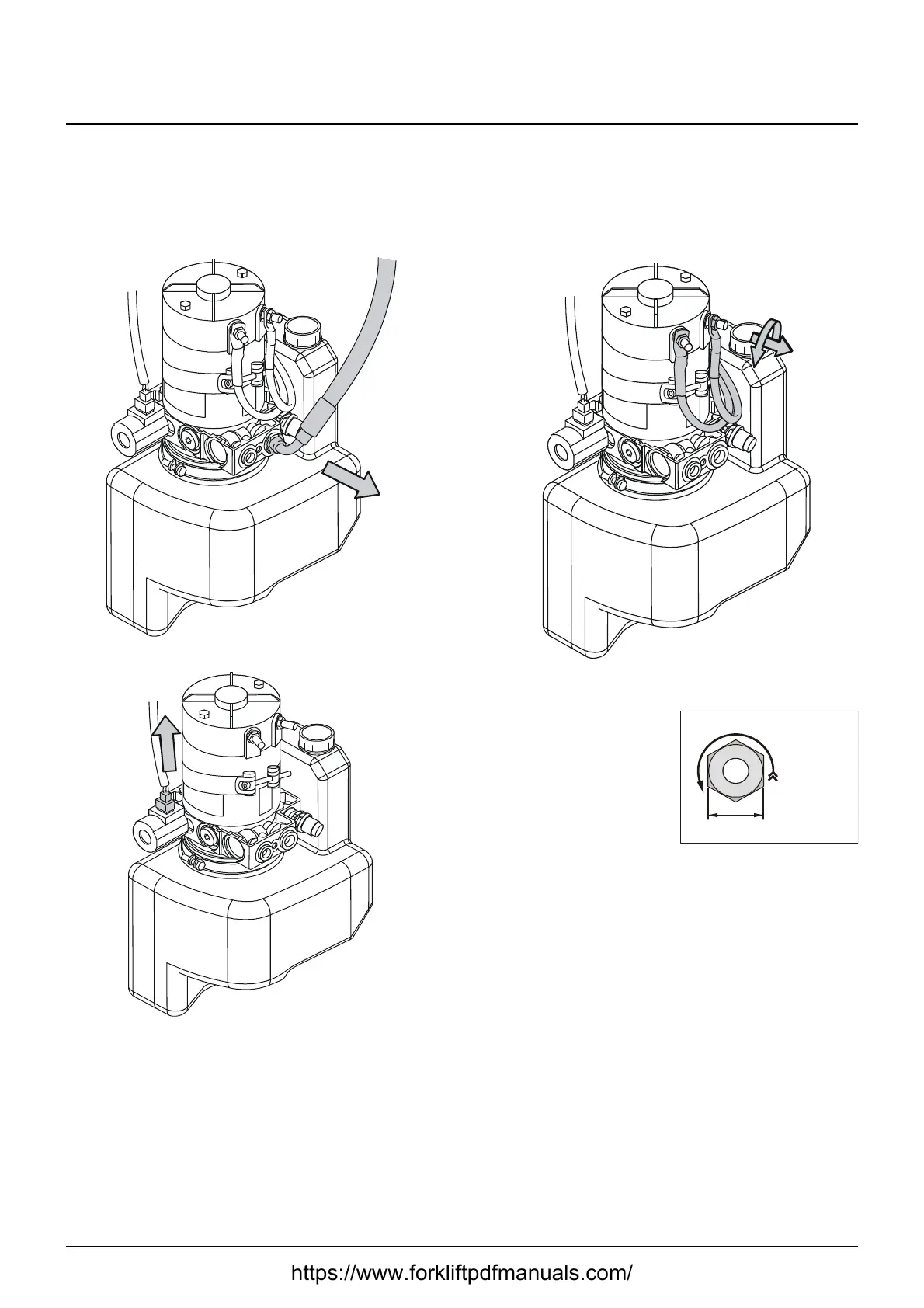

1. Disconnect the hydraulic hose. See section "15.4.1 Quick change
connectors".
2. Disconnect the motor cables using a wrench.
3. Disconnect the electric connection to the lowering valve.
Step 1.
Step 2.
Step 3.
s: 13mm, n: 2ea
