CESAB S214L User Manual

© Cesab 11 – 12 T Code(s): 841, 842, 843
Repair manual: Drive gear 2550 Model(s): S210, S212, S212S, S212L, S214, S214L, S220D
Publication Number: 7588857-040 Date: 2018-05-01 Applies from serial number: 6384351-
11.8.1 Replacing studs
The drive wheel is fixed to the hub with five studs, conical washers and nuts.
1: Remove the damaged studs.
– Use a stud tool to remove any studs with damaged threads.
– For broken studs, there are two methods:
Method 1: Drill a hole in the centre of the stud and remove it using a bolt
extractor.
Method 2: If the stud will not come loose with a bolt extractor, it will have
to be drilled out
– Drive a centre punch as close to the centre of the stud as possible
– Drill a pilot hole through the stud using a 5 mm bit
– Drill out the screw with a drill.
– Try to remove the stud remains using pliers, etc. If that does not work,
remove the remains by clearing the threads with a tap.
2: Apply Loctite
®
270 to the stud thread.
3: Use the stud tool to fit the new stud and tighten to 35 Nm.

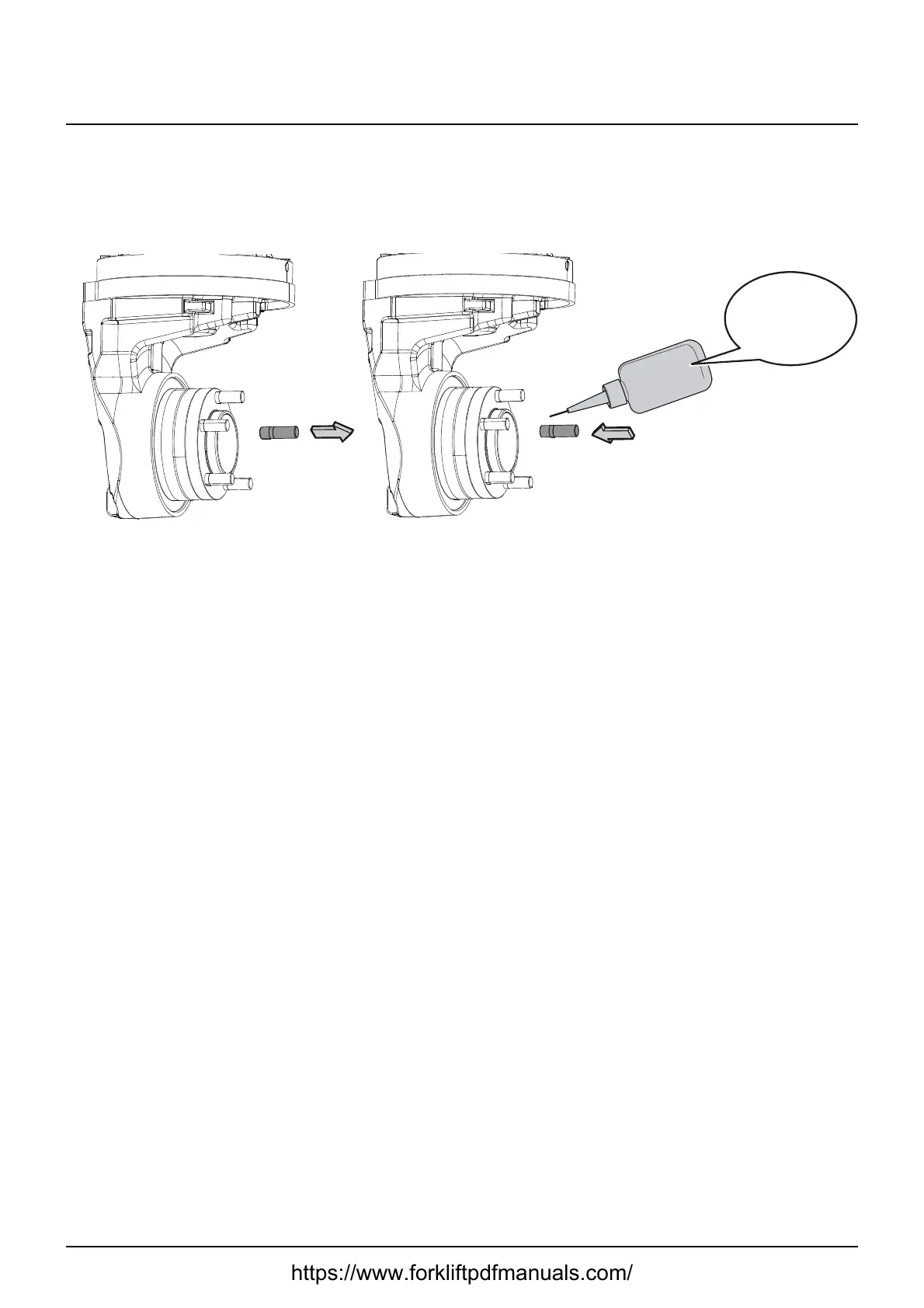

Loctite XXX
Step 1
Steps 2, 3 T=35 Nm
