© Cesab 16 – 8 T Code(s): 841, 842, 843
Repair manual: Mast C7000 Model(s): S210, S212, S212S, S212L, S214, S214L, S220D
Publication Number: 7588857-040 Date: 2018-05-01 Applies from serial number: 6384351-

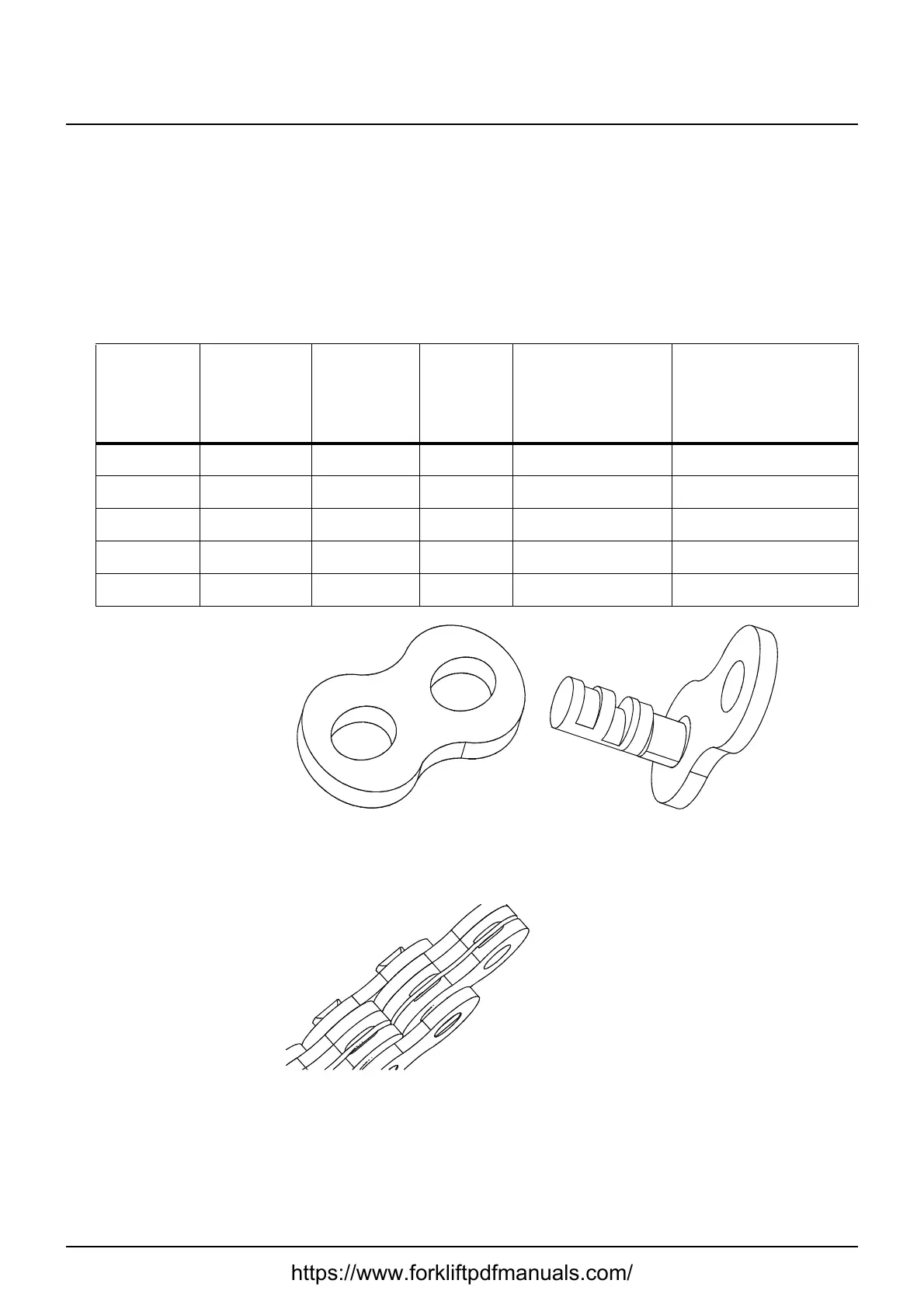

Stretching
The amount of stretch on a lifting chain is measured on the part of the chain
that runs over the chain roller. The amount of stretch may, at the most, be 2%
on the most worn section of the chain.
The measurement is best made over 300-1000 mm of chain.
The nominal and maximum permitted chain lengths for lift chains are stated in
the table below.
Wear to the bolts and around the holes on the discs is one reason why the
chain stretches. The chain must be replaced if is stretched more than 2%.
Damage
The chain should be replaced if damaged in any way.
Type of
chain
Nominal
disc
height H2
(mm)
Minimum
plate
height H3
(mm)
Pitch P
(mm)
Nominal chain
length for 20/30/
50 plates (mm)
Maximum
permitted chain
length for 20/30/50
plates (mm)
3/4", 2x3 17.8 16.9 19.05 381/572/953 389/583/972
3/4”, 3x4 17.8 16.9 19.05 381/572/953 389/583/972
3/4”, 4x6 17.8 16.9 19.05 381/572/953 389/583/972
1", 4x4 23.6 22.4 25.4 508/762/1270 518/777/1295
1”, 6x6 23.6 22.4 25.4 508/762/1270 518/777/1295
