DVP15MC11T Operation Manual
_8

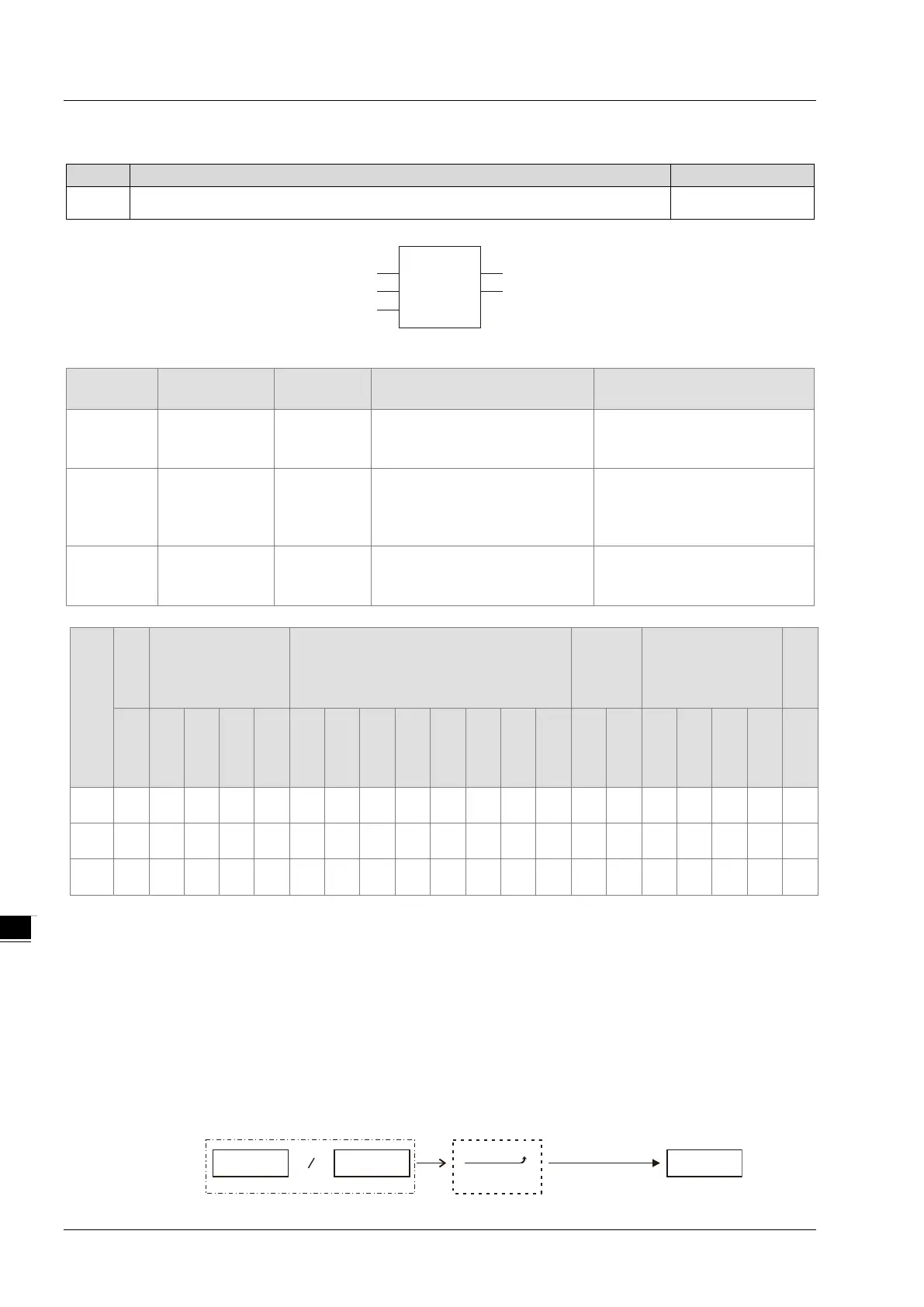

8.8.4 DIV
FB/FC
Explanation
Applicable model
FC
DIV is used for the division operation of two variables or constants.
DVP15MC11T
 Parameters
Parameter
name
Meaning
Input/
Output
Description Valid range
In1 Dividend Input Dividend
Depends on the data type of
the variable that the input
parameter is connected to.
In2 Divisor Input Divisor
Depends on the data type of
the variable that the input
parameter is connected to. 0
is excluded.
Out Quotient Output
The division result of In1
andIn2
Depends on the data type of
the variable that the output
parameter is connected to.
Boolean
Bit string Integer
Real
number
Time, date
String
BOOL
BYTE
WORD
DWORD
LWORD
USINT
UINT
UDINT
ULINT
SINT
INT
DINT
LINT
REAL
LREAL
TIME
DATE
TOD
DT
STRING
In1
● ● ● ● ● ● ● ● ● ● ● ● ● ●
In2
● ● ● ● ● ● ● ● ● ● ● ● ● ●
Out
● ● ● ● ● ● ● ● ● ● ● ● ● ●
Note:
The symbol ● indicates that the parameter is allowed to connect to the variable or constant of the data type.
 Function Explanation

The instruction is used for the division of two variables or constants. The result is output to Out, that
is, Out= In1 / In2.

The input parameters In1 and In2 are allowed to be the variables of different data types in this
instruction. When In1 and In2 are the variables of different data types, the division will be performed
based on the data type which can contain valid ranges of In1 and In2. For example, the data type of
Out is DINT if the data type of In1 is INT and In2 is DINT.
DIV
EN ENO
In1 Out
In2
In1 In2
Result
assignment
Input parameter
Division
Out
Output
parameter
8-62
