D.1 Explanation of Homing Modes
DVP15MC11T provides many homing modes from which user can choose the appropriate one in accordance
with the field condition and technical requirement.
 Mode 1 Homing which depends on the negative limit switch and Z pulse.
Circumstance 1： MC_Home instruction is executed when the negative limit switch is OFF and the axis
moves in the negative direction at the first-phase speed. The motion direction
changes and the axis moves at the second-phase speed when the axis encounters
that the negative limit switch is ON. Where the first Z pulse is met is the home position
when the negative limit switch is OFF.
Circumstance 2： MC_Home instruction is executed when the negative limit switch is ON and the axis
moves in the positive direction at the second-phase speed. Where the first Z pulse is
met is the home position when the negative limit switch is OFF.

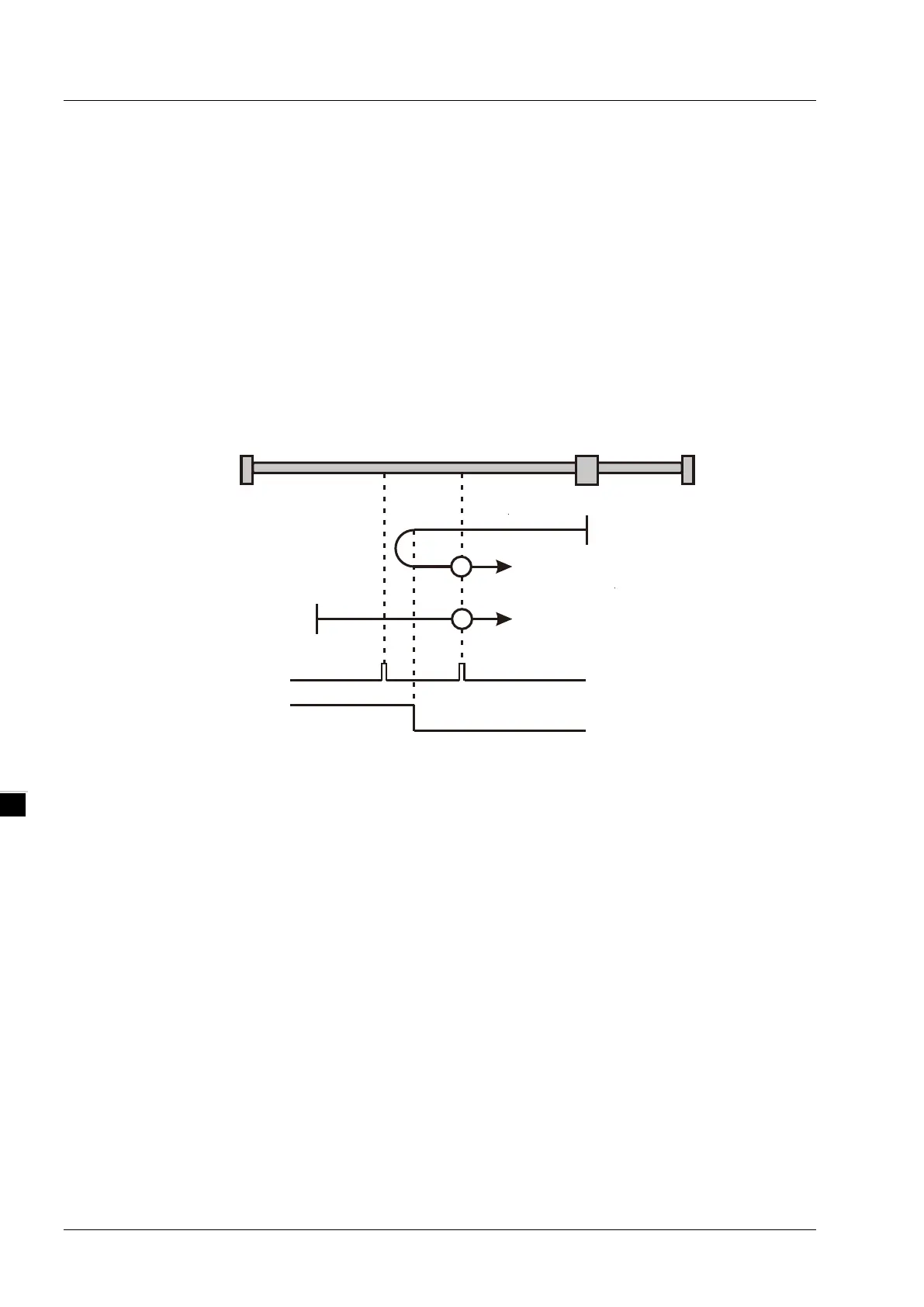

Homing depending on the negative limit switch and Z pulse (
: mode 1)
 Mode 2 Homing which depends on the positive limit switch and Z pulse
Circumstance 1： MC_Home instruction is executed when the positive limit switch is OFF and the axis
moves in the positive direction at the first-phase speed. The motion direction changes
and the axis moves at the second-phase speed when the axis encounters that the
positive limit switch is ON. Where the first Z pulse is met is the home position while
the positive limit switch is OFF.
Circumstance 2： MC_Home instruction is executed when the positive limit switch is ON and the axis
moves in the negative direction at the second-phase speed. Where the first Z pulse is
met is the home position while the positive limit switch is OFF.
1
1
Circumstance 1
Circumstance 2
Start point
Positive direction
Positive direction
Start point
Z pulse
Negative limit switch
D-2
