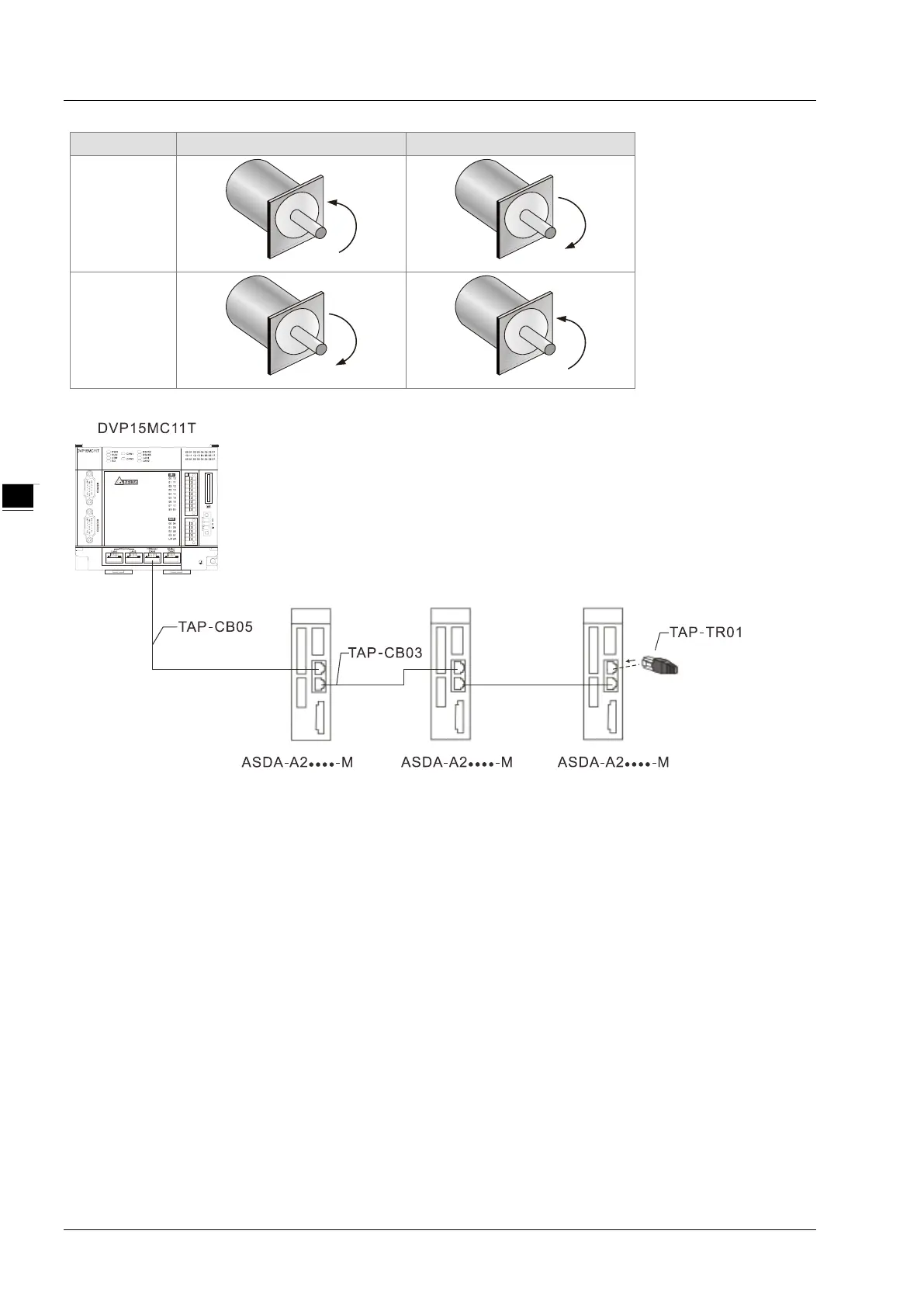

 The wiring figure of DVP15MC11T and ASDA-A2-XXXX-M-series servo drives
Notes:
1. Please refer to the servo user manual for the wiring of ASDA-A2-XXXX-M-series servo drives, servo
motors and encoders.
2. Choose UC-CMC003-01A or UC-CMC005-01A or UC-CMC010-01A communication cable according
to the field status.
3. There is one 120Ω terminal resistor embedded at Motion port. In the CANopen network consisting of
Motion port and servos, the other end of the network must be connected with a terminal resistor
TAP-TR01 which could be found in the packing box of DVP15MC11T.
4.6 SD Memory Card
4.6.1 Model and Specification

Model and Appearance
SD memory cards can be classified into SD, Mini SD and Micro SD according to its size. DVP15MC11T only
supports the standard-dimension SD.
4-6

Delta Electronics DVP15MC11T Specifications

General

Brand	Delta Electronics
Model	DVP15MC11T
Category	Controller
Language	English
