11.5.4 Introduction to Cam Curve with Rotary Cut Function
The cam curve with the rotary cut function could be divided into the SYNC area and adjustment area.
SYNC area: Feed axis and rotary-cut axis make the motion at a fixed speed ratio (Linear speed of the
knife is usually equal to that of the cut surface), and material cutting takes place in SYNC
area.
Adjustment area: Due to different cutting length, positioning need be adjusted accordingly.
Adjustment area can be in the following three situations based on various cutting
length.

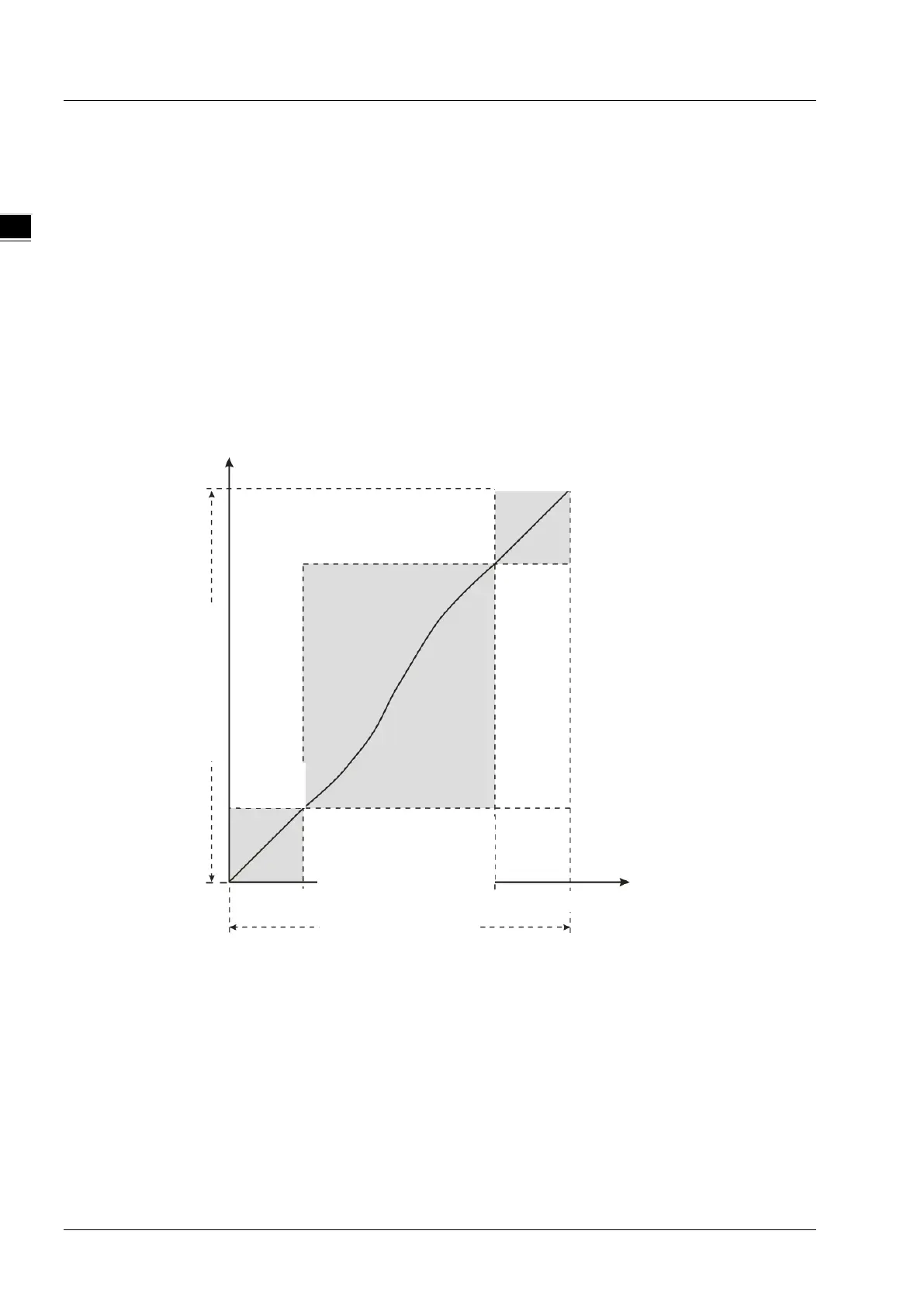

1. Short material cutting
When cutting length is less than the knife roller circumference, the rotary-cut curve for any cycle is
shown below.
For the cutting of short material, rotary cut axis must accelerate first in the adjustment area, and then
decelerate to the synchronous speed.
2. Equal-length cutting
When the cutting length is equal to the knife roller circumference, the rotary-cut curve for any cycle is
shown below.
Feed axis
SYNC
area
Adjustment area
Circumference of
the knife roller
End of SYNC area
Start of SYNC area
Cutting length
Cutting length is less
than the knife roller
circumference
Rotary cut axis
SYNC area
11-178
