DVP15MC11T Operation Manual
_6
6.6.3 Incremental Encoder Hardware Connection

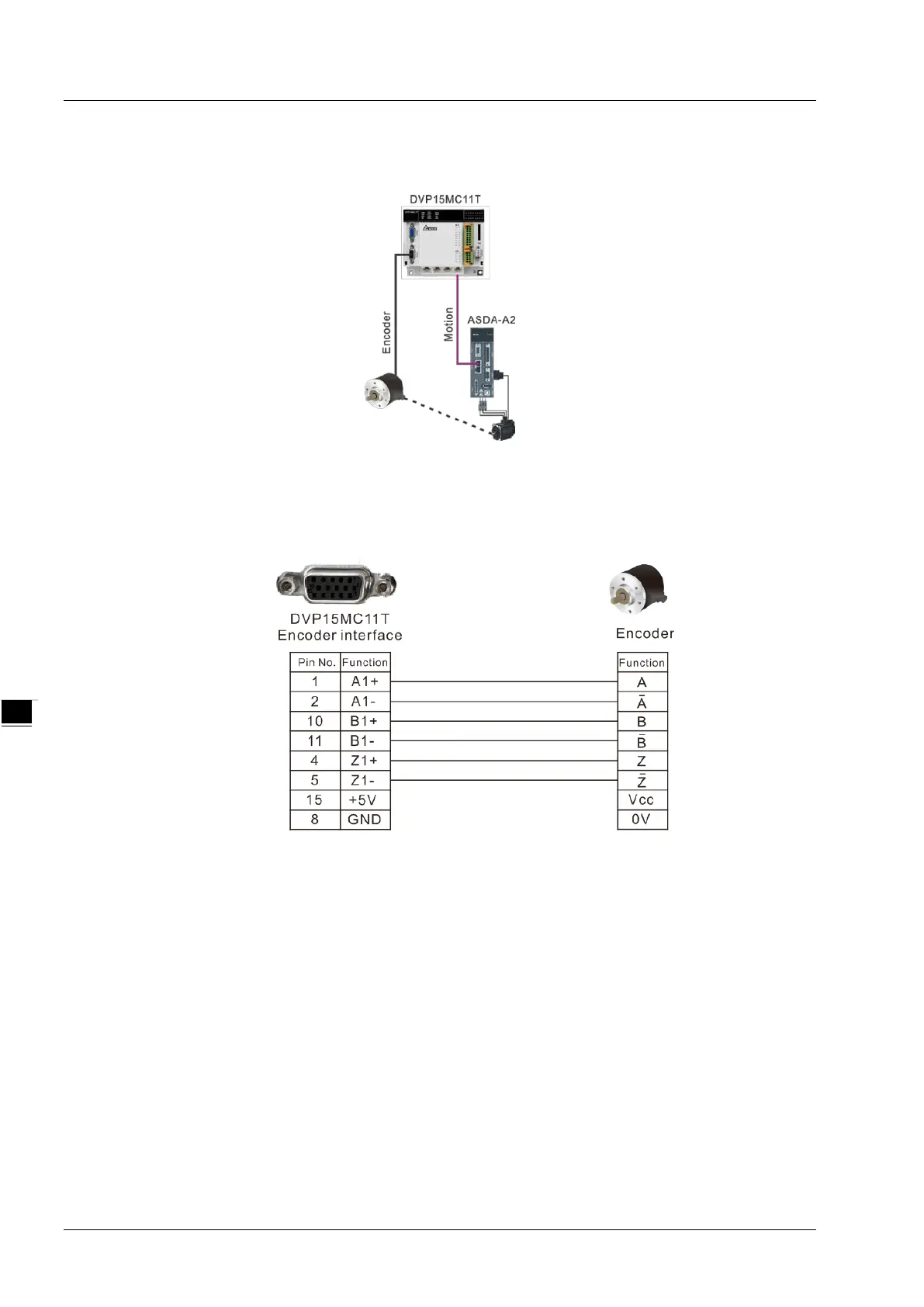

 Illustration of Incremental Encoder Wiring
 Specification for Incremental Encoder Port Wiring
The incremental encoder interface of DVP15MC11T and the wiring method are shown below.
Note: The power supply for Encoder port of DVP15MC11T is 5V power.
When VCC = 5V, connect the power voltage VCC of an encoder to pin 15 of DVP15MC11T’s Encoder
interface and 0V of the encoder to pin 8 of Encoder interface.
When VCC ǂ 5V, the power is supplied to the encoder alone according to the actual power voltage of
the encoder which is connected.
6-16
