Chapter 5 Installation
5_
5.2 Installing the Module in the Control Cabinet
5.2.1 Installing the Module to DIN rail
Pull down the clips at the bottom of DVP15MC11T. Then stick the horizontal slots at the rear of the module on
the DIN rail. Finally, push up the clips to fix the module inside the control cabinet.
Ether net
LAN 1 LAN 2 CAN1 CAN2
C AN open M ot ion
OU T
IN
DVP15MC 11T 00 0 1 02 03 0 4 05 06 0 7
10 11 12 13 1 4 15 16 1 7
00 0 1 02 03 0 4 05 06 0 7
0 0
0 1
0 2
0 3
0 4
0 5
0 6
0 7
S 0
10
11
12
13
14
15
16
17
S 1
0 0
0 1
0 2
0 3
04
05
06
07
U P ZP
0V 24V
15
10 5 1
6
11 15
10 5 1
6
11
ENCODER COM /SSI
CA N
ER R
1
RU N
ER R
2RUN
PWR
RUN
ERR
SD
R S232
RS485
LAN1
LAN2

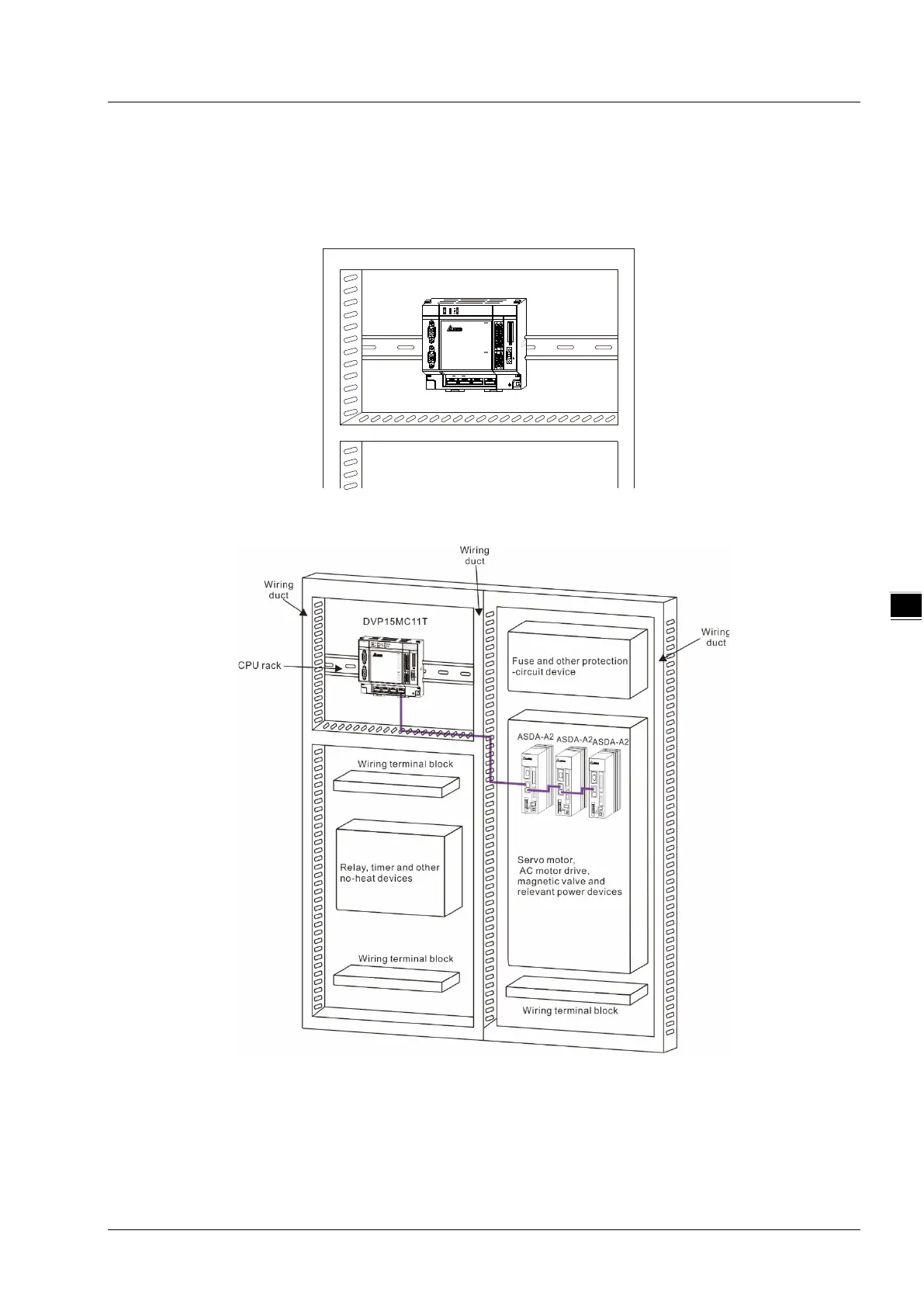

5.2.2 Illustration of Installation Inside the Control Cabinet
5.2.3 Environmental Temperature in the Control Cabinet
 Requirements
1. The environment inside the control cabinet for DVP15MC11T is 0°C ~ 55°C in temperature and 5 ~
95% in humidity.
2. Please do not make the installation near the equipment of high temperature.
5-7
