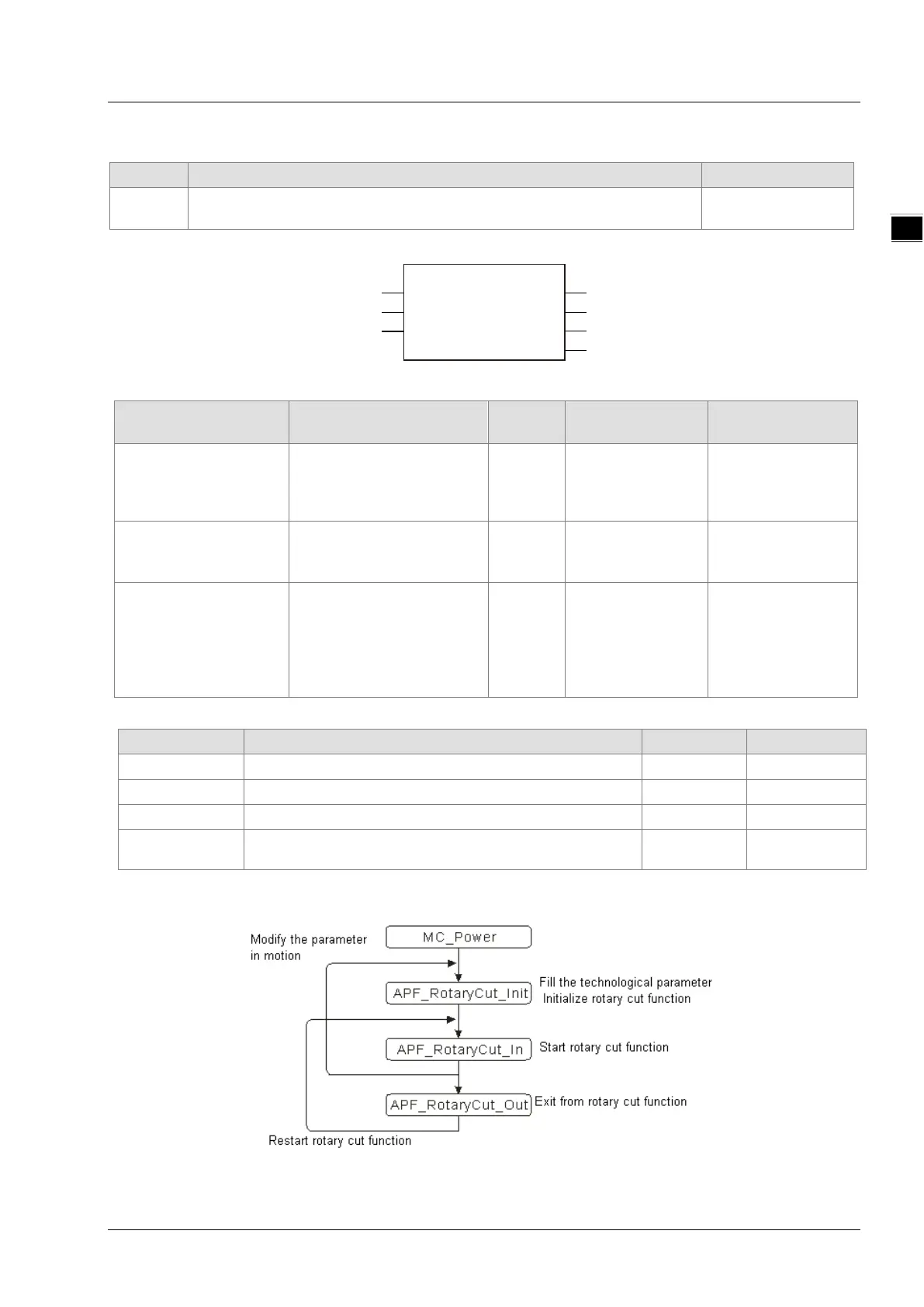

11.5.5.3 APF_RotaryCut_Out
FB/FC
Explanation
Applicable model
FB
APF_RotaryCut_Out is used for disconnecting the already established
rotary-cut relationship between the rotary-cut axis and feed axis.
DVP15MC11T
 Input Parameters
Parameter name Function Data type
Valid range
(Default)
Validation timing
Execute
The instruction is
executed when Execute
changes from FALSE to
TRUE.
BOOL
TRUE or FALSE
(FALSE)
RotaryAxis
The axis number of the
rotary axis
USINT
1~32
(The variable
value must be set)
When Execute
changes from
FALSE to TRUE
RotaryCutID
The number for a group of
rotary cut instructions; a
group of rotary cut
instructions use the same
number. Setting range:
1~8.
USINT
1~8
(The variable
value must be set)
When Execute
changes from
FALSE to TRUE
 Output Parameters
Parameter name
Function
Data type
Valid range
Done
TRUE when the instruction is completed.
BOOL
TRUE / FALSE
Busy TRUE when the instruction is being executed.
BOOL
TRUE / FALSE
Error TRUE when there is an error.
BOOL
TRUE / FALSE
ErrorID
Contains error codes when an error occurs. Please
refer to section 12.2 for the corresponding error code.
WORD
Notes:
1. Control Sequence Chart of Rotary Cut Function
Execute
RotaryAxis
Done
Busy
Error
ErrorID
RotaryCutID
APF_RotaryCut_Out
APF_RotaryCut_Out_instance
11-187
