Delta Electronics DVP15MC11T User Manual

Chapter 8 Logic Instructions
8_

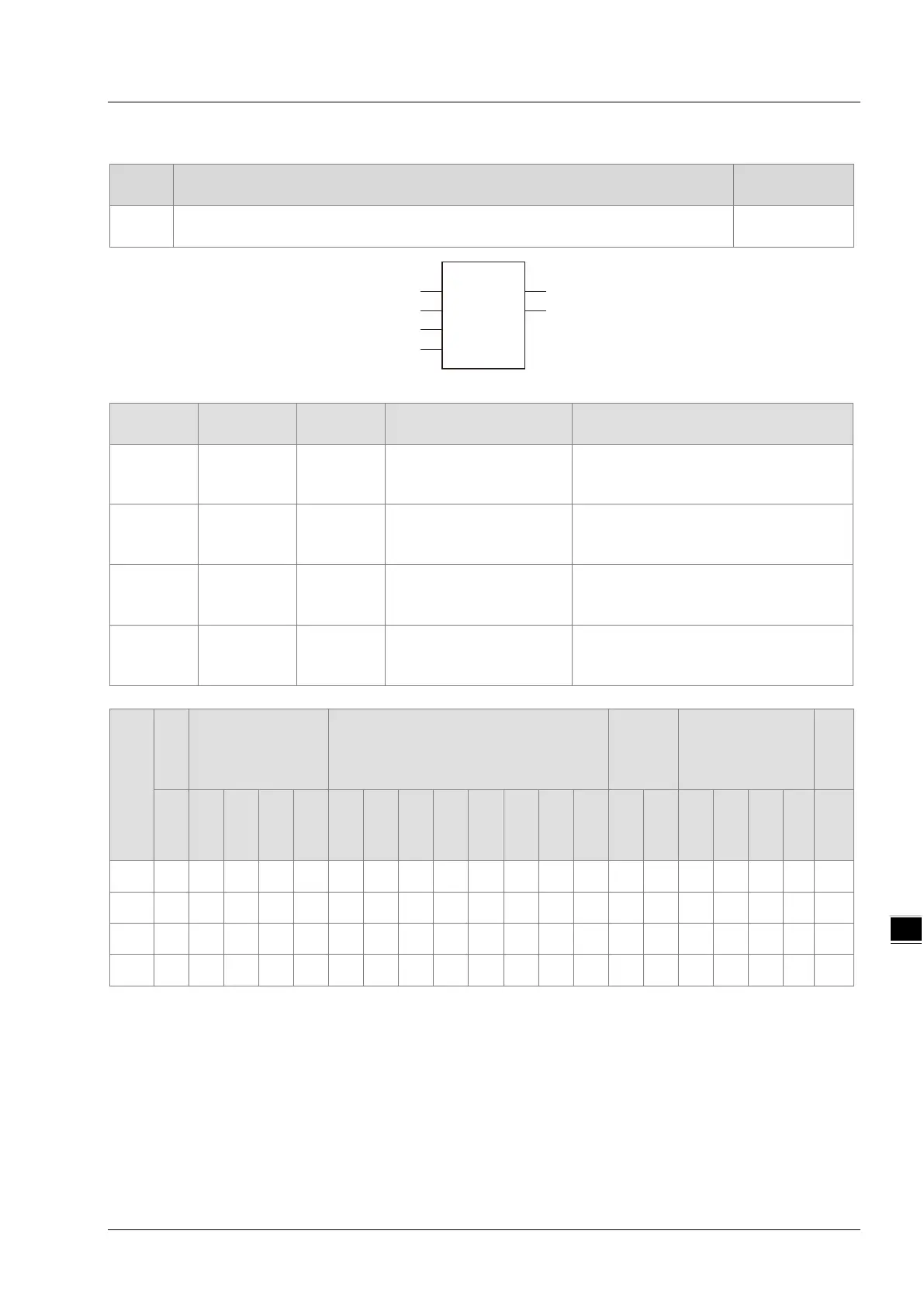

8.11.6 BAND
FB/FC
Explanation
Applicable
model
FC
BAND performs the deadband control and the processing result is output to
Out.
DVP15MC11T
 Parameters
Parameter
name
Meaning
Input/
Output
Description Valid range
MN
Minimum
value
Input
Minimum value
Depends on the data type of the
variable that the input parameter is
connected to.
In Data to limit
Input
Data to limit
Depends on the data type of the
variable that the input parameter is
connected to.
MX
Maximum
value
Input
Maximum value
Depends on the data type of the
variable that the input parameter is
connected to.
Out
Processing
result
Output Processing result
Depends on the data type of the
variable that the output parameter is
connected to.
Boolean
Bit string Integer
Real
number
Time, date
String
BOOL BYTE WORD DWORD LWORD USINT UINT UDINT ULINT SINT INT DINT LINT REAL LREAL TIME DATE TOD DT STRING
MN
● ●
In
● ●
MX
● ●
Out
● ●
Note:
The symbol ● indicates that the parameter is allowed to connect to the variable or constant of the data type.
 Function Explanation

The BAND instruction performs the dead band control of the value of In according to the maximum
value, MX and the minimum value, MN and the processing result is output to Out.
BAND
EN ENO
MN Out
MX
In
8-143
