Delta Electronics DVP15MC11T User Manual

Chapter 6 Wiring, Communication Setting and Network Construction
6
_
6.5 SSI Absolute Encoder Port
6.5.1 Function of SSI Absolute Encoder
DVP15MC11T’s COM/SSI port is a 15-pin D-SUB interface which can be used to connect SSI encoder. In
addition, the port also includes the 5V (400mA) power output which provides the power supply to the encoder.
Users can create an SSI encoder axis to control the motion of slave axes according to the number of pulses
received via the encoder port.
6.5.2 Definitions of SSI Port Pins
DVP15MC11T’s COM/SSI port is a 15-pin D-SUB interface. See the table below for definitions of respective
SSI communication port pins.
Pin
No.
Signal Definition
COM/SSI
1 DATA+
Positive pole of absolute encoder data
2
DATA-
Negative pole of absolute encoder data
6
CLK+
Positive pole of absolute encoder clock
14 CLK-
Negative pole of absolute encoder clock
8 GND
Power ground of the absolute encoder
15 5V
Absolute encoder power

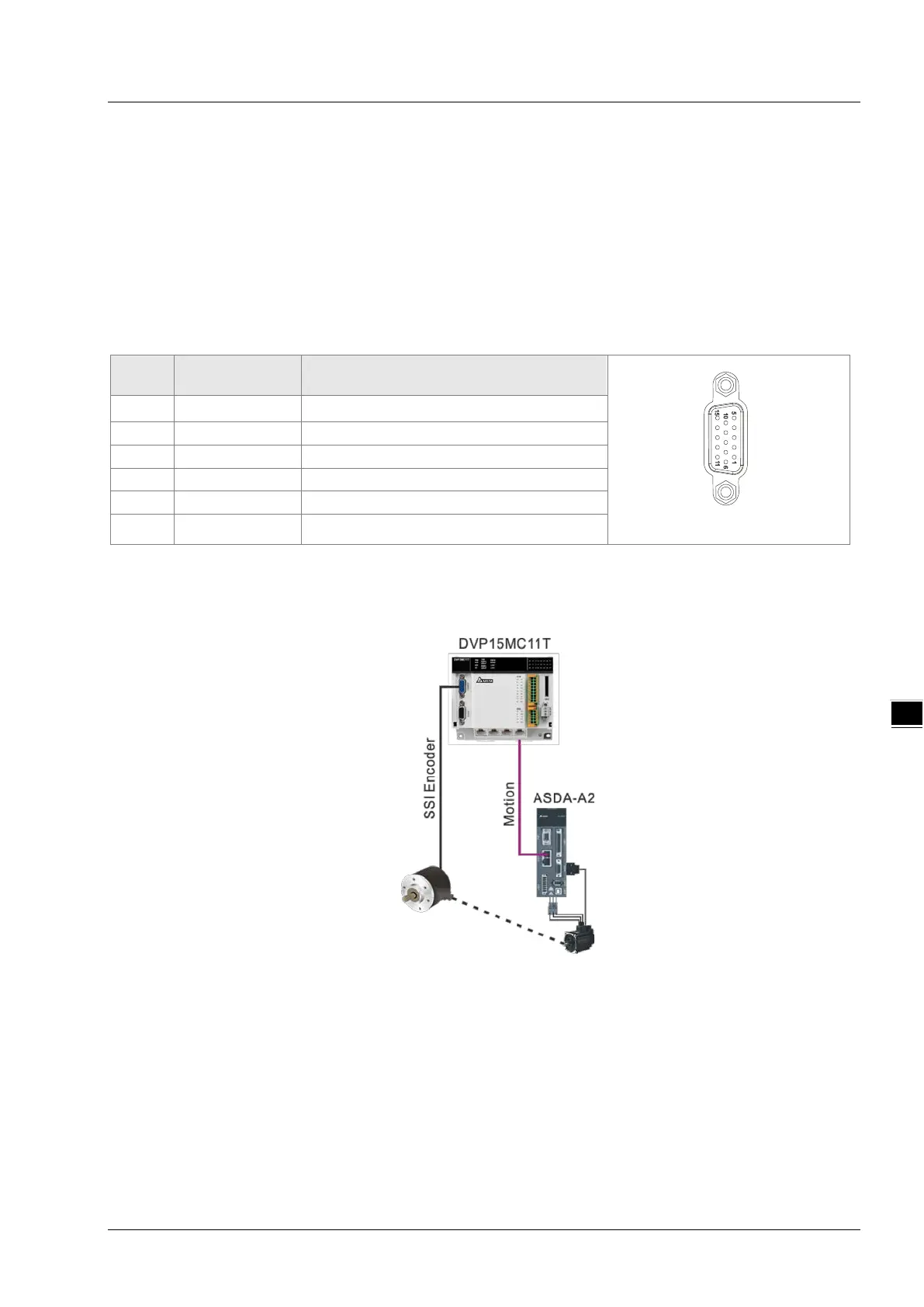

6.5.3 SSI Absolute Encoder Hardware Connection
 Illustration of SSI Absolute Encoder Wiring
 Specification for SSI Absolute Encoder Interface Wiring
SSI encoder interface of DVP15MC11T and the wiring method are shown below.
6-13
