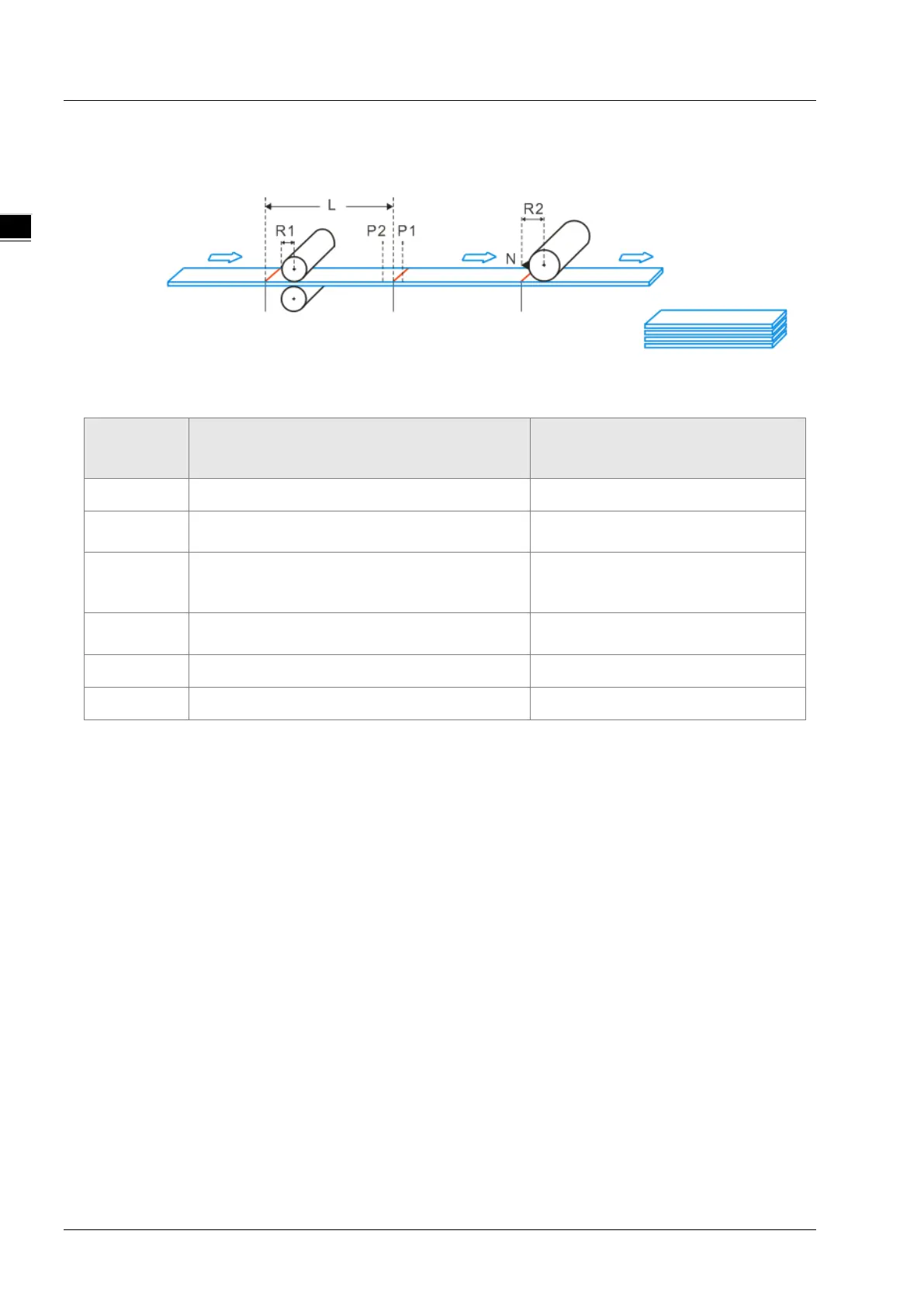

11.5.2 Rotary Cut Parameters
Parameter
in the figure
Explanation
Corresponding parameter name of
the instruction
L
The cutting length of the processed material
APF_RotaryCut_Init.CutLength
R1
The radius of the feed axis, i.e. the radius
length of the feed roller.
APF_RotaryCut_Init.FeedRadius
R2
The radius of the rotary axis, i.e. the distance
from the center of the rotary roller to the tool
bit.
APF_RotaryCut_Init.RotaryRadius
N
The number of knives of the rotary roller. The
number of knives is 1 in the figure above.
APF_RotaryCut_Init.KnifeNum
P1
The starting position of the synchronous area.
APF_RotaryCut_Init.SyncStartPos
P2
The end position of the synchronous area.
APF_RotaryCut_Init.SyncStopPos
Cutting
position
Cutting
position
Cutting
position
11-176
