DVP15MC11T Operation Manual
_7
Insufficient SYNC period time will result in the controlled device to fail to receive SYNC signal and
unpredictable operations. Refer to section 7.3 for SYNC period setting.
 Rising edge or falling edge of local input points (I0~I7，I10~I17)
The task is triggered when rising edge or falling edge of input point signal is detected. The response time
of input points can be set through the filter function.
 CANopen bus SYNC message
The task is triggered when SYNC signal is produced at CANopen port of the controller.
 Z pulse rising edge for incremental encoder 1
The task is triggered when the rising edge of Z signal of the first encoder is detected at Encoder port of
the controller.
 Z pulse rising edge for incremental encoder 2
The task is triggered when the rising edge of Z signal of the second encoder is detected at Encoder port of
the controller.
7.1.2 Priority levels of Tasks
The controller can not perform multiple tasks simultaneously. Every task must be given a priority level and
they are executed according to preset priorities. Priority level can be set within the range of 1 to 24. (1 is the
highest priority and 24 is the lowest priority.) The priority level of each task must be unique. The task with
higher priority takes priority to perform. The high-priority task can interrupt the low-priority task.
We recommend that the task which has a high requirement of real time should be given a high priority and the
task which has a low requirement of real time should be given a low priority. The priority of the default motion
control task built in the CANopen Builder software is 1 by default.

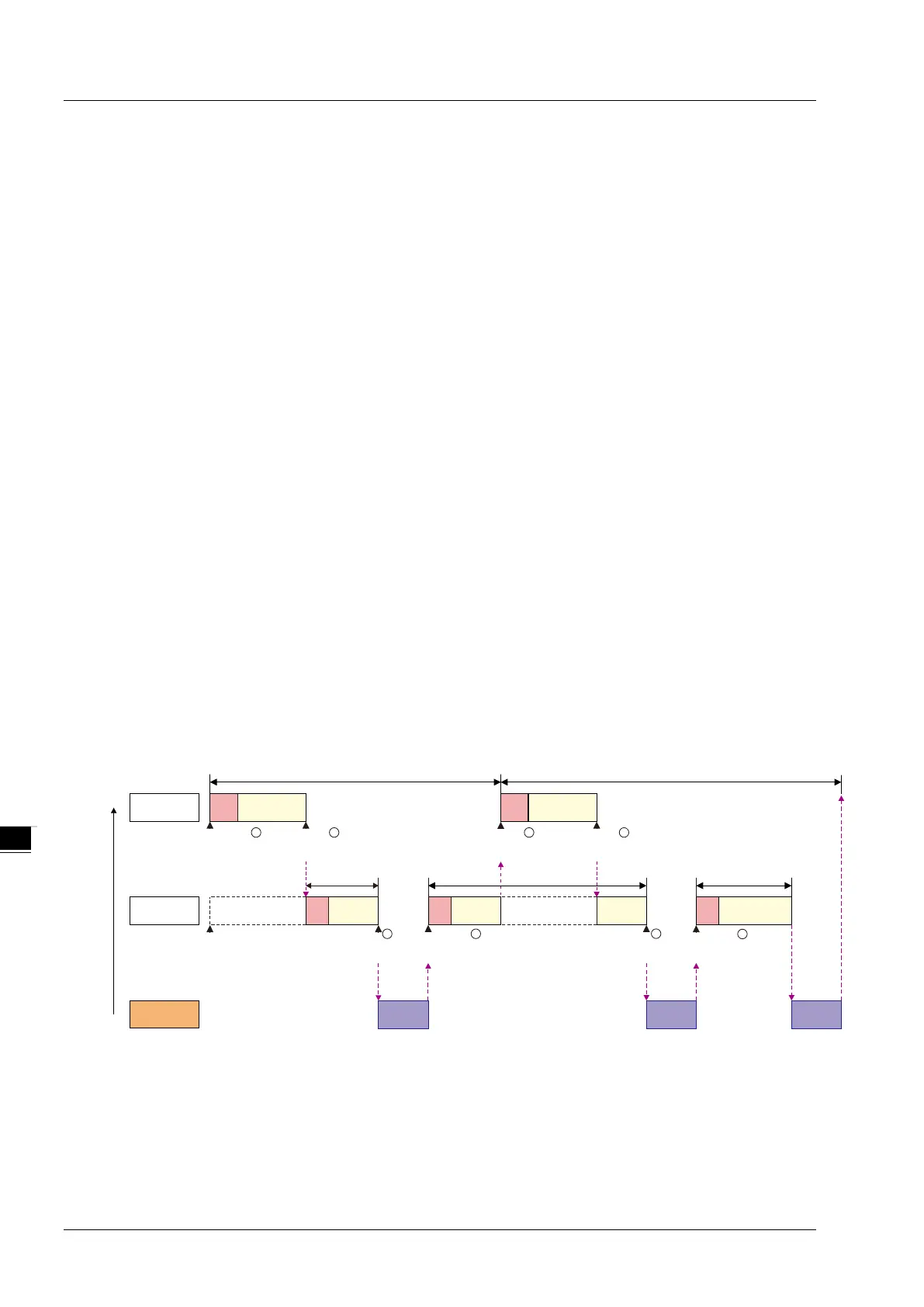

 The principle for multi-task execution
 When the execution conditions of two tasks are met simultaneously (Cyclic task and
freewheeling task)
IO
User
program
Time interval between tasks
Cyclic task
( )Priority 1
System
processing
Priority
High
Low
IO
User
program
Time interval between tasks
Task execution
condition met
IO
System
pr ocessing
Pause
User
program
IO
User
program
Pause IO
User
program
Freewheelin g task
( )Priority 2
Task execution
finished
Task execution
condition met
Task execution
finished
Task execution
condition met
Task execution
finished
Task execution
condition met
Task execution
condition met
Task execu tion tim e
Task execu tion time
Task execut ion time
Task execution
finished
1 2
3
5 6
7
8
4
System
processing
User
program
System
processing
○
1E A The execution conditions for the cyclic task and freewheeling task are met at the same time. The
cyclic task is executed first because of its higher priority.
A
○
2E A When the cyclic task execution is finished, the freewheeling task execution starts.
7-4
