Epson WF-7710 series User Manual

Aligning the Print Head
If you notice a misalignment of vertical lines or blurred images, align the print head.
Aligning the Print Head - Control Panel
1. Load A4-size plain paper in the paper cassette.
If your printer has two paper cassettes, load paper in paper cassette 1.
2. Select Settings on the home screen.
3. Select Maintenance > Print Head Alignment.
4. Select Vertic al Align ment or Horizontal Alignment, and then follow the on-screen instructions to print an
alignment pattern.
❏ Vertical Alignment: Select this if your printouts look blurry or vertical ruled lines appear misaligned.
❏ Horizontal Alignment: Select this if you see horizontal banding at regular intervals.
5. Follow the on-screen instructions to align the print head.

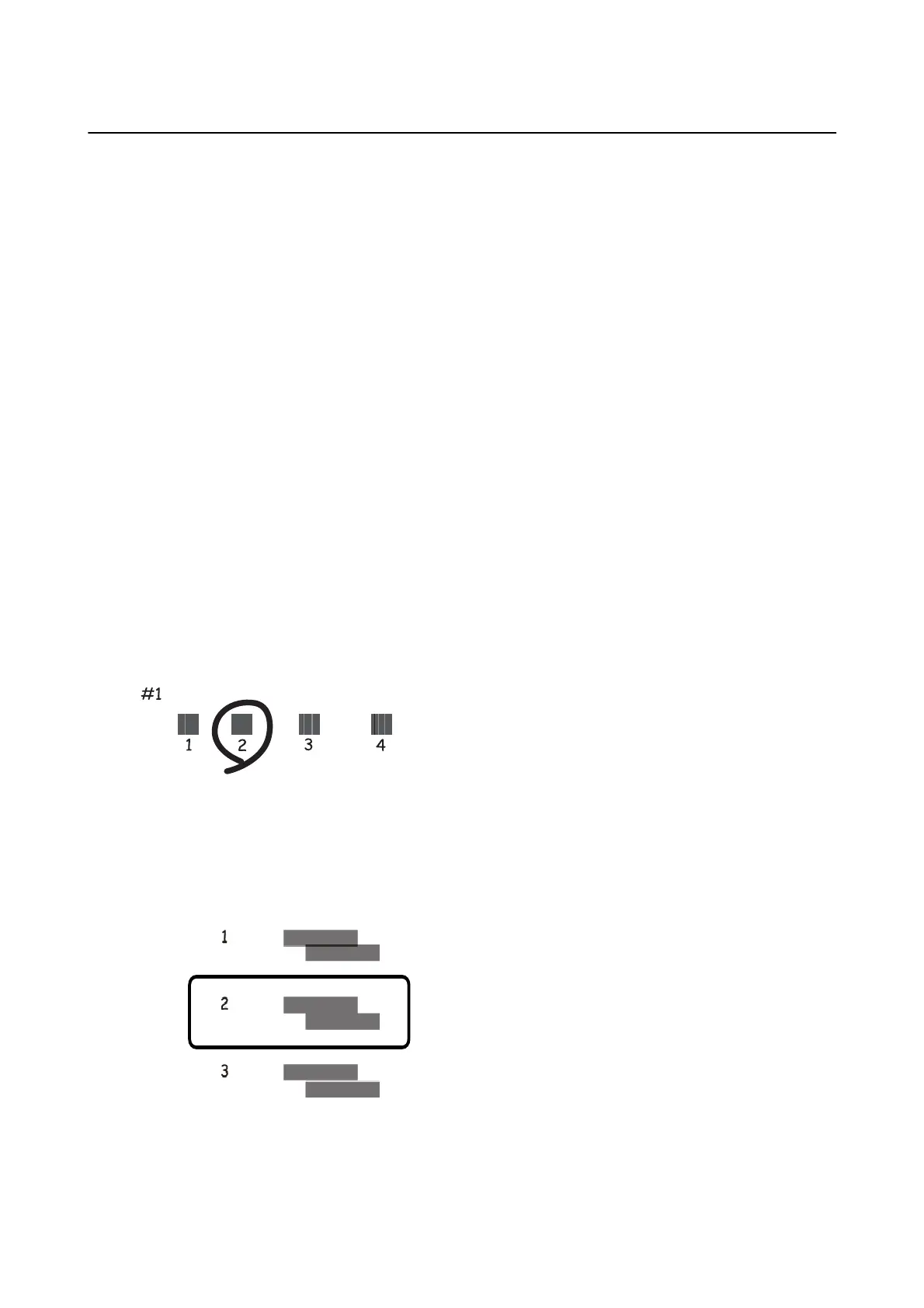

❏ Vertical Alignment: Find and enter the number for the most solid pattern in each group.
❏ Horizontal Alignment: Find and enter the number for the least separated and overlapping pattern.
Related Information
& “Loading Paper in the Paper Cassette” on page 46
User's Guide
Maintaining the Printer
212

Epson WF-7710 series Specifications

General

Type	all in one
Color	black
Touch Screen	yes
Display Size	4.3 inches
Tray Capacity	250
Output Tray Capacity	125
Automatic Document Feeder Capacity	35 sheets
Paper Size	3.5" x 5", 4" x 6", 5" x 7", 8" x 10", 8.5" x 11", 8.5" x 14", 11" x 17", 13" x 19", a4, a6, half letter, executive, user-definable (up to 47.2" length)
Paper Handling	up to 250 sheets
Printing Method	color
Color Print Speed	10 pages per minute
Mono Print Speed	18 pages per minute
Print Resolution Mono	up to 4800 x 2400
Print Resolution Color	up to 4800 x 1200
Media Types	plain paper, epson bright white paper, epson presentation paper matte, epson premium presentation paper matte
Two-Sided Printing	yes
Maximum Number of Pages Per Month	up to 20, 000
Photo Printing	yes
Scanner Type	flatbed
Scan Resolution	up to 9600
Duplex Scan	yes
Max Copies	999
Copier Resolution Mono	up to 600 x 600
Copier Resolution Color	up to 600 x 600
Fax Function	yes
Cartridges	252 durabrite ultra standard-capacity, 252xl durabrite ultra high-capacity, 254xl durabrite ultra extra high-capacity
Number Of Cartridges	4
Number of Ink Tanks	4
Internal Memory	yes
Memory Card	yes
Network	wired, wireless
Connectivity	apple airprint, epson iprint, google cloud print
OS Compatibility	windows® 10; 8/8.1; 7; vista®; server® 2003 (sp2) - server 2016, mac® os x® 10.6.8 - macos® 10.12.x
Mobile Devices Connection	yes

Weight and Dimensions

Height	13.4 inches
Width	22.3 inches
Net Weight	40.8 pounds
