4.2 Loading Paper 107
4.2 Loading Paper
This section explains how to load paper in the bypass tray or trays 1 - 4.
Loading Paper in the Bypass Tray
Important
• Make sure to load paper when the power is on.
• Do not load paper of different types in the same tray.
• Do not remove paper from or add paper to the paper trays during printing. Doing so can cause paper
jams.
• Do not place any objects other than paper on the bypass tray. Do not push down the tray or apply an
excessive force to the tray.

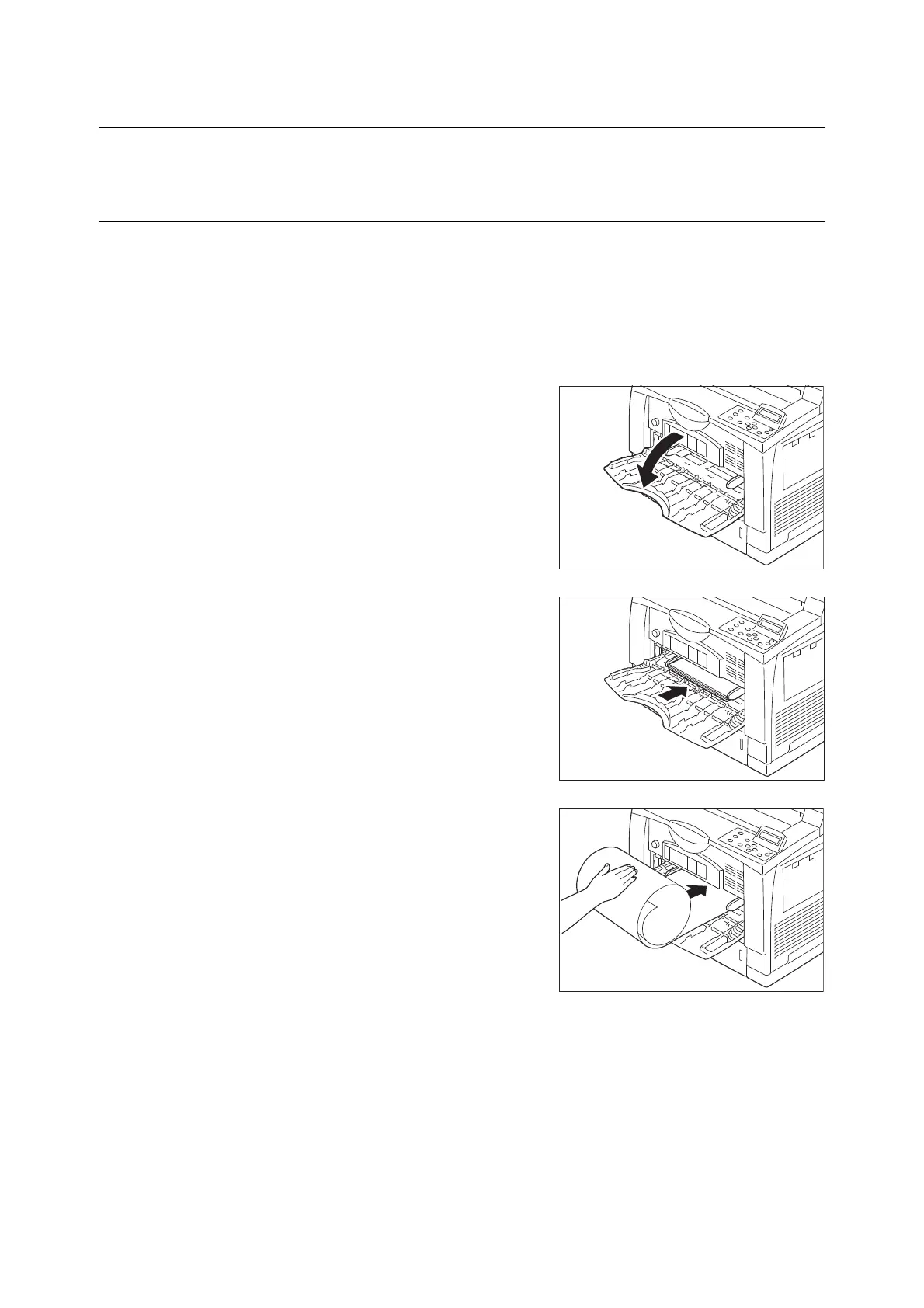

1. Lower the bypass tray.
Extend the tray as required. The extension
tray can extend two levels.
2. Neatly align the edges of the paper sheets
and insert them print side facing up into the
inlet slot until you feel them bump lightly.
Important
• Do not use creased or wrinkled paper.
• Do not load paper above the maximum fill-line. Doing
so can cause paper jams.
Note
• In the case of long-size paper, load the paper as
shown in the illustration.
To Next Page
