Keypad and menus of the ACU
5-46
5.4 Keypad and menus of the ACU
5.4.1 ACU display and keypad
In the ACU display you can see the current state of the system. You can also see events
(warnings, errors and information) and how the system has been configured. Use the
keypad to navigate through the menu tree.

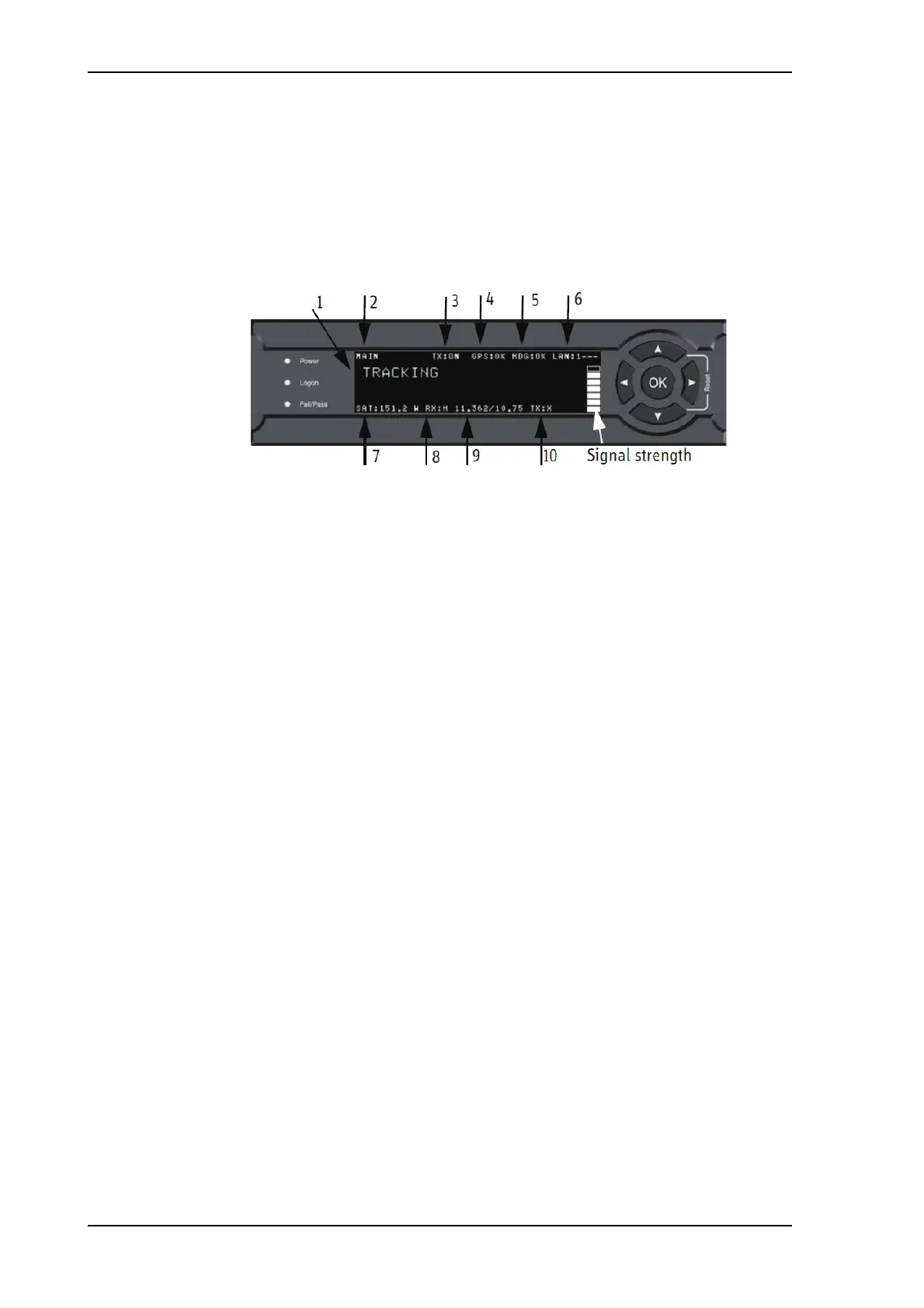

Figure 5-40: Display (example) and keypad of the ACU
1. Current status of the FV-110:
NOT READY (waiting for input from GNSS, e.g. GPS)
ANTENNA INITIALIZING
ANTENNA SW UPLOAD
ANTENNA POST ERROR
XIM DATA ERROR
UNRECOVERABLE XIM DATA ERROR
SYSTEM UPGRADE
ANTENNA POST PENDING
ANTENNA POST
SAFE MODE (error, followed by an error description)
SERVICE SWITCH (service switch in ADU activated)
Ready (waiting for data from the modem or no satellite profile selected)
POINTING ANTENNA (locating the satellite)
ACQUIRING SIGNAL (acquiring the satellite signal)
TRACKING (tracks the current satellite)
LINEUP (line up is activated)
AZIMUTH CALIBRATION
TX CABLE CALIBRATION
TEST
NOT READY (waiting for input from GNSS, e.g. GPS)
NOT READY: INITIALIZING
NOT READY: NEED POS
BLOCKING ZONE (antenna is pointing into a blocking zone)
NO TX ZONE (antenna is pointing in a no TX zone; TX is off)
2. Current menu.
3. TX: Current transmission state, ON or OFF (off when in blocking zone).
4. GPS: GPS signal is received from the GPS module, OK or ---.
