F.6 Separate ground cable
F.6.1 Ground cable - construction
When dealing with electrical installations in a marine environment, all wiring must be
done with double insulated, tinned strands, high quality and if exposed also UV resistant
cables. This shall also apply to the separate ground cable mentioned in the previous
paragraphs.
The ground cable is constructed using an appropriate cable with a cross section area of at
least 6 mm
2
(AWG10) and terminated with insulated ring crimp terminals – see
illustration below. The crimp terminals must be a marine approved type e.g. the DuraSeal
series from Raychem.

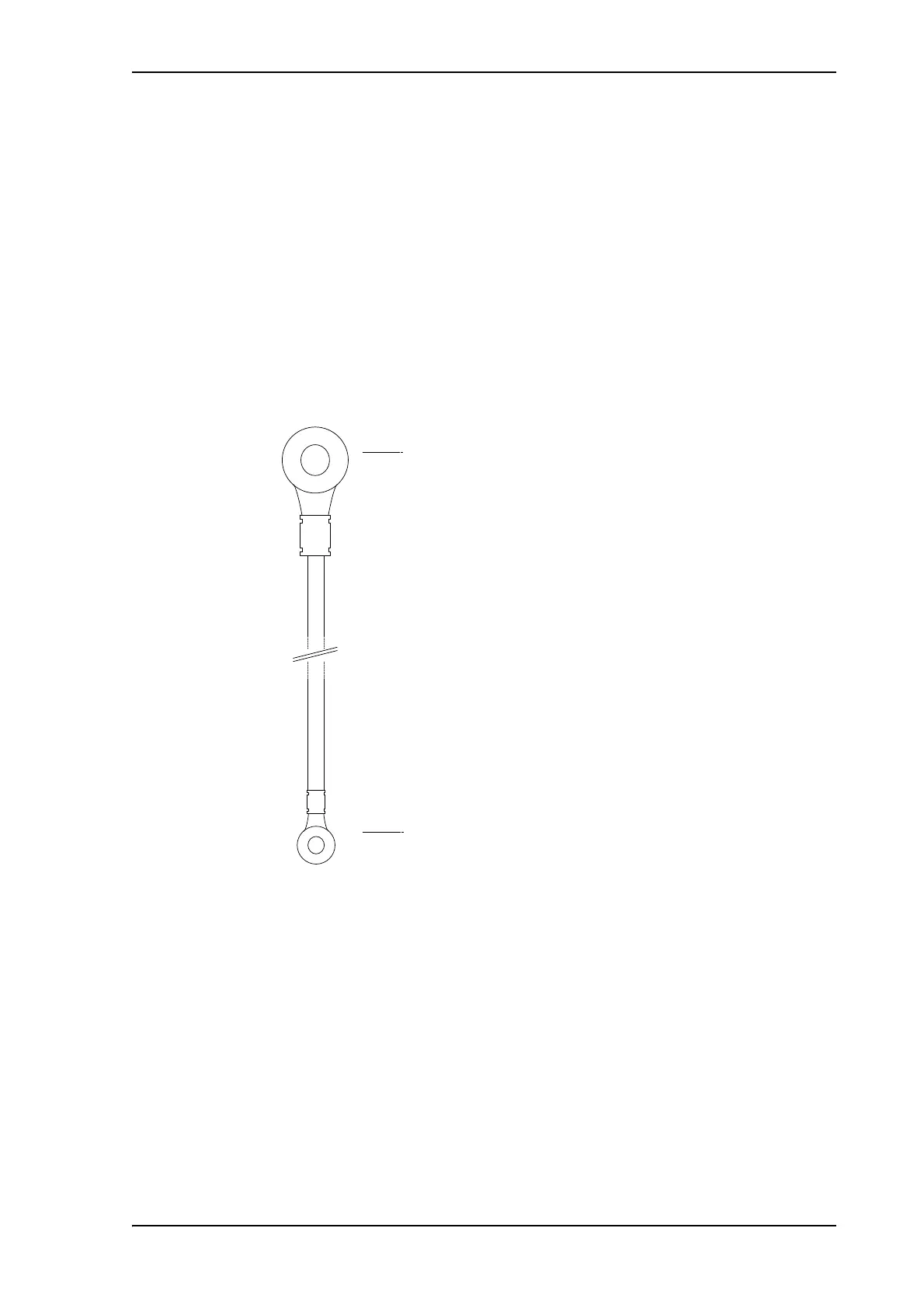

Figure F-6: Separate ground cable
$QWHQQD
0,QVXODWHG5LQJ7HUPLQDO
5D\FKHP'XUD6HDO6HULHV
7HUPLQDO
$SSURSULDWHVL]H
,QVXODWHG5LQJ7HUPLQDO
5D\FKHP'XUD6HDO6HULHV
