5.3.7 Dual antenna mode (optional)
The following tasks must be taken care of when setting up a dual-antenna system:
• To configure the Master ACU
• To configure the Slave ACU
• Blocking zone setup for dual antenna setup
• Line up and commissioning for dual antenna setup
At the bottom of the DASHBOARD of the web interface there is a section where you can
switch over to the other ACU dashboard. Next to Status you can see whether the current
ACU is active or not.

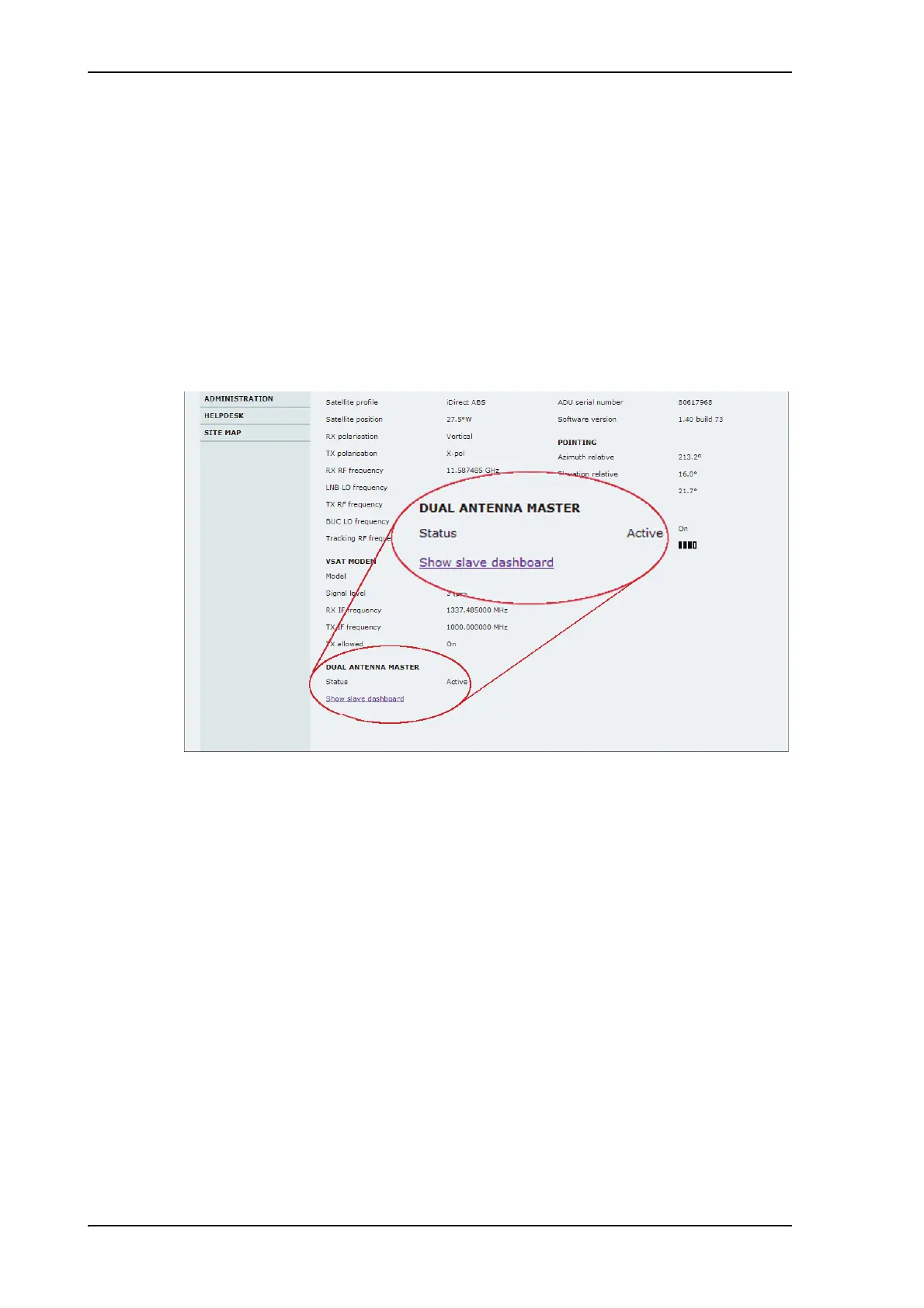

Figure 5-27: Dual-antenna mode, link on DASHBOARD
The dual-antenna system switches between the 2 antennas in the following scenarios:
• When in a programmed blocking zone.
• When the signal is blocked for more than 2 minutes.
• ADU is malfunctioning.
In the statistics report you can get more detailed information on the dual-antenna mode,
see also Table 5-18 on page 5-33.
