Inmarsat G5 modem
C-31
C.8.5 Configuration example (Inmarsat G5)

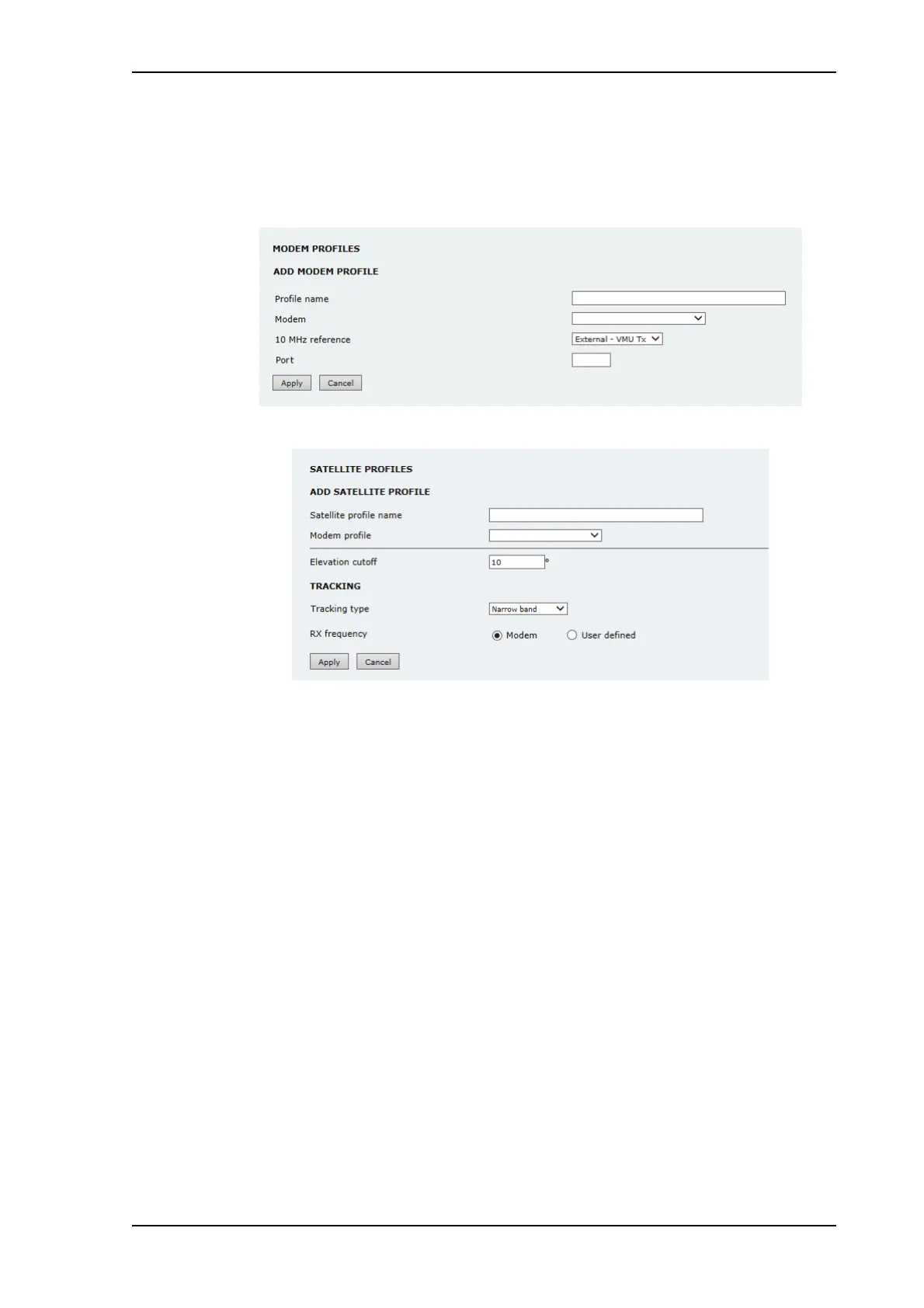

Examples of modem profile and satellite configuration from the ACU web MMI are
shown in the figures below.
Figure C-24: VSAT modem profile, Inmarsat G5 (example)
Figure C-25: Satellite profile, Inmarsat G5 (example)
C.8.6 LAN setup requirements for G5 system
Make sure that the following requirements are taken care of when configuring the LAN:
• LAN1: Static I
• LAN1: DHCP Server disabled
• DNS setup: Static IP
• GW setup: Static I
• LAN3: IP <> LAN1
• LAN4: IP <> LAN1
See also To configure the LAN network on page 5-29.
