Keypad and menus of the ACU
5-47
5. HDG: Ship heading data received from the ship’s gyro, OK or ---.
6. LAN: LAN connectors used, 1, 2, 3, 4, ---.
7. SAT: Satellite position of currently active satellite profile.
8. RX: RX polarisation of currently active satellite profile. H (horizontal), V (vertical),
L (left-hand) R (right-hand).
9. RF tracking frequency in GHz and LNB LO Frequency.
10.TX:XTX polarisation of currently active satellite profile. X (Cross polarisation) or Co
(Co-pol).
After 1 hour the display is dimmed to lowest intensity. Press any key to light up the
display.

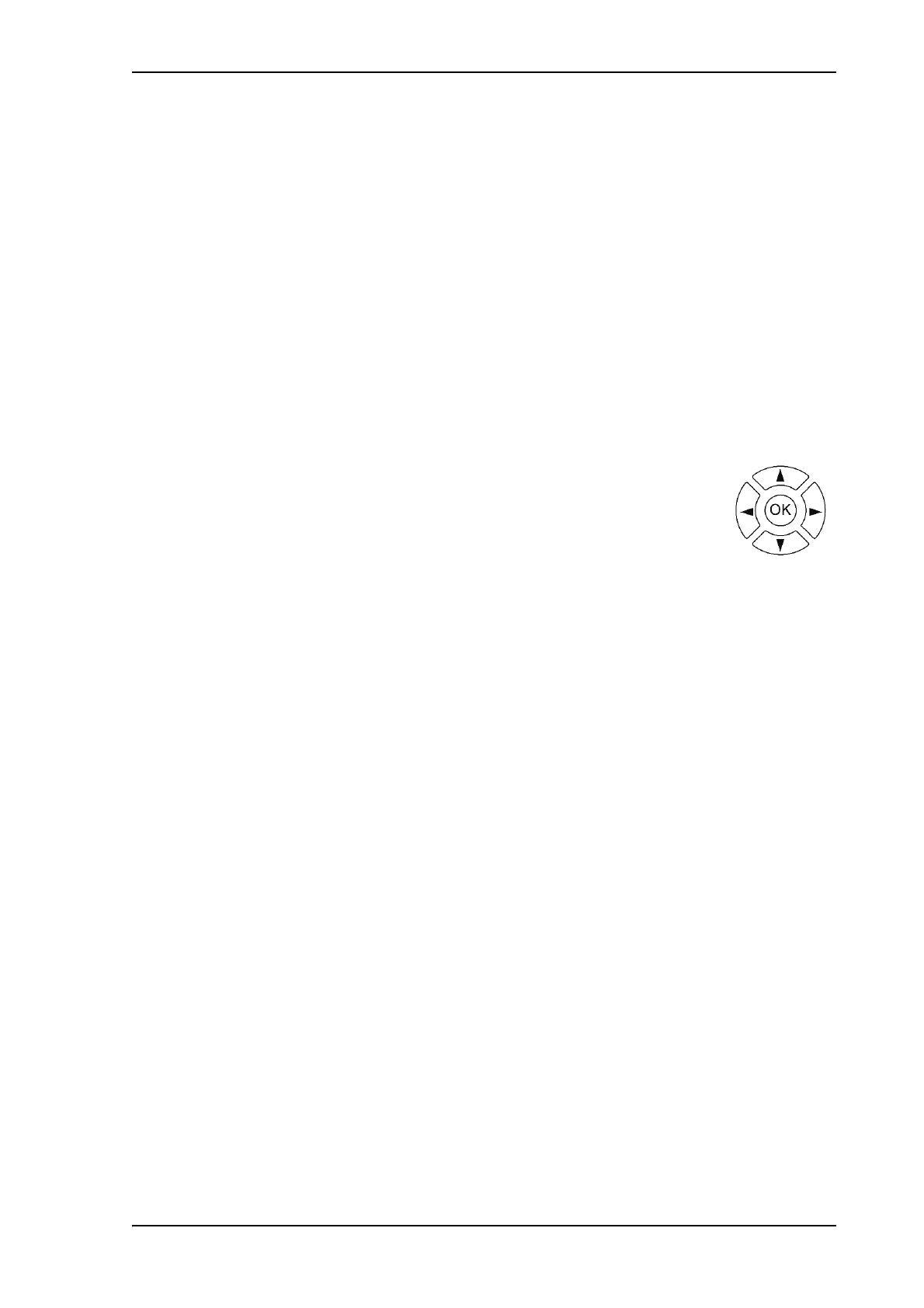

5.4.2 Navigating the menus
Use the keypad to navigate the menus.
• Press OK or to select a menu item.
• Use the arrow keys and to go through the menu items or
enter a number, digit by digit.
• Use the arrow keys and to go through the settings and move
from one digit to the next.
• Press OK to select a setting.
• Press again to move one level up. If applicable, confirm to store the new setting by
pressing OK.
