4 The Main Menu
97
Select OK to close the alarm pop-up window. The FiO2 setting is displayed with a
yellow background. You can change the FiO2 setting within a range from 21% to
100%.
A small red icon is displayed on the left corner of the status bar, showing O2
Sensor (Figure 84) When the O2 sensor failure is corrected, this icon changes to
green and can be cleared.
Low + Monitoring Option
The Low + Monitoring option is used for a low-pressure oxygen supply in
combination with VersaMed’s low-pressure adapter. If Low+ Monitoring is
selected, the FiO2 window in the Main screen is grayed out, and the O2 settings
cannot be changed. The display in the Main screen shows the measured FiO2
(the FiO2 delivered to the patient), as in the Alarm screen [Menu - Alarm Settings].
All O2 related alarms are enabled.

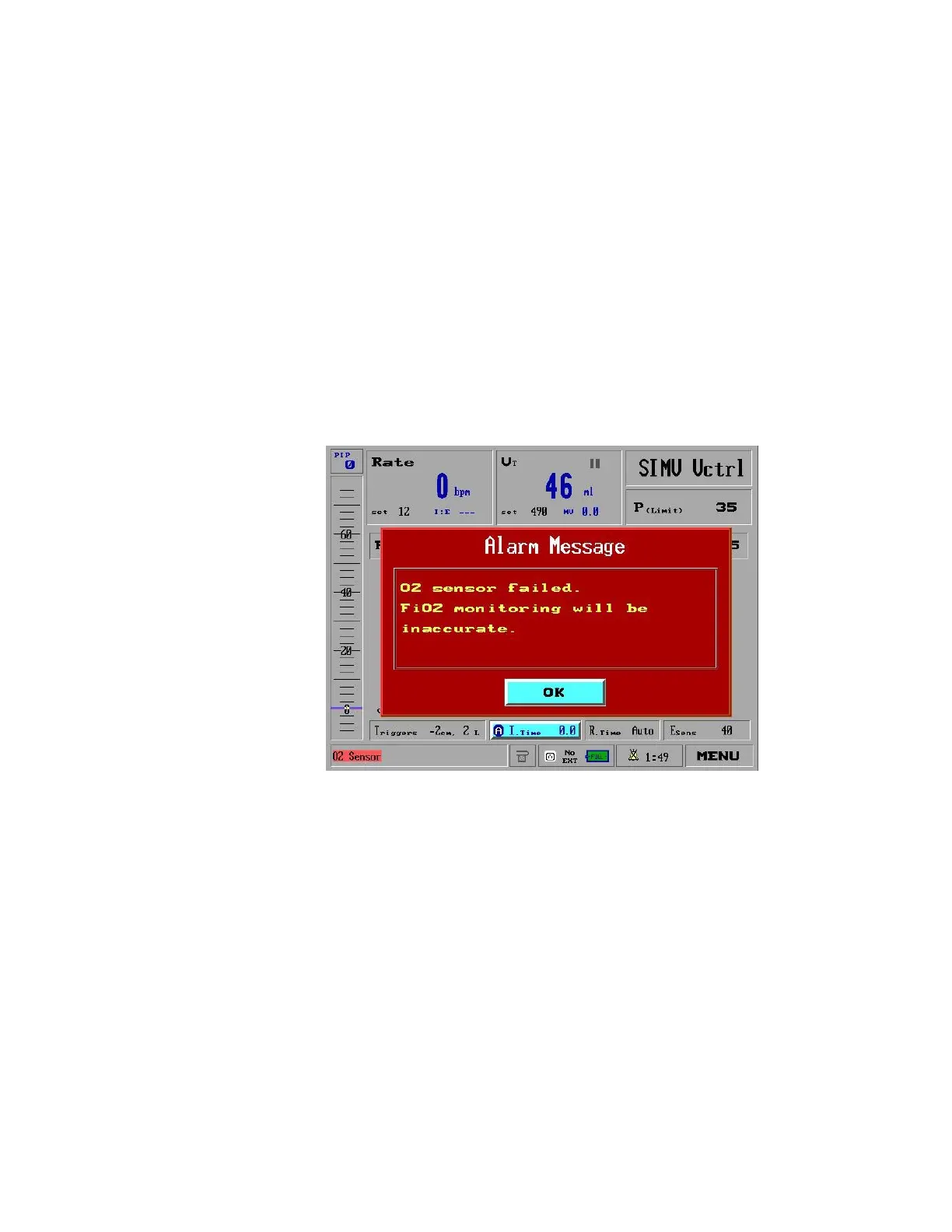

If the O2 sensor fails, the following alarm message is displayed:
Figure 85: Low+Monitoring O2 Sensor Failed Alarm Message
NOTE You cannot close this alarm using the Clear button.
When the O2 sensor alarm message is activated, the O2 alarm messages, such
as High O2 or Low O2, are not activated. The O2 alarm settings bar and the O2
readings are disabled.
A small red icon is displayed on the left corner of the status bar, showing O2
Sensor (see Figure 85 above) . When the sensor failure is corrected, this icon
changes to green and can be cleared.
Low Option
The Low option is used for a low-pressure supply in combination with VersaMed’s
low-pressure adapter. When this option is selected, all the O2 related alarms are
