148

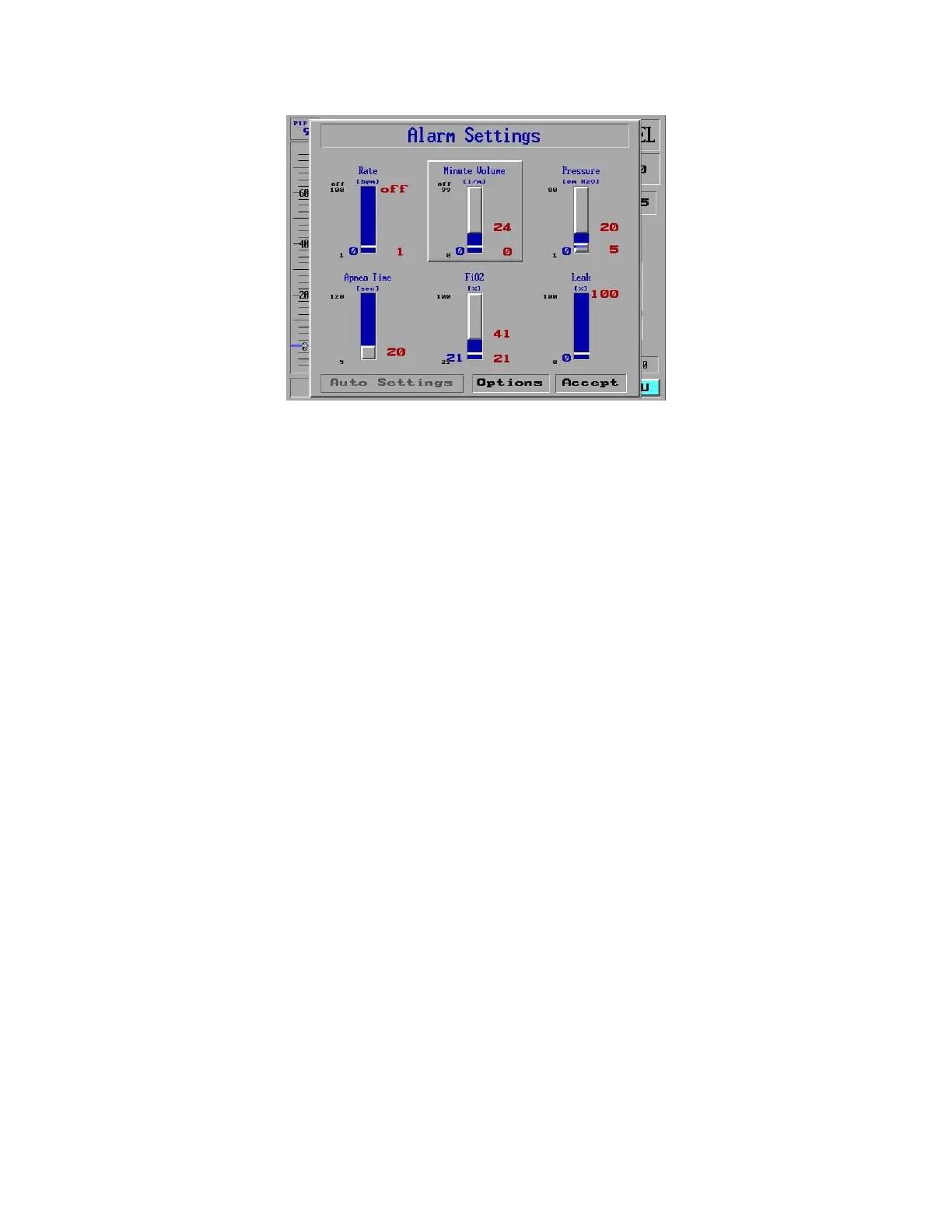

Figure 135: The Minute Volume Alarm Slider Selected
4. Press the Control Knob to change the alarm settings for the Minute Volume.
5. The top of the slider is selected bright blue. Turn the dial to adjust the alarm
for the upper limit in liters per minute. Notice if you attempt to adjust the
upper limit of the alarm below the currently-selected lower limit, you push
the lower limit down. Setting the Minute Volume alarm over the maximum
level of 99 turns off the alarm’s upper limit.
6. Press the Control Knob to confirm your selection.
7. The bottom of the slider is selected bright blue. Turn the dial to adjust the
alarm for the lower limit in liters per minute. Note that adjusting the lower
limit higher than the currently-selected higher limit moves the higher limit
up.
8. Press the Control Knob to confirm the settings.
9. The Alarm Setting screen is re-displayed. You can dial and select an
additional alarm setting to adjust, or dial and select Accept to accept all the
alarm settings and return to the Main screen.
Setting the Pressure Alarm
To set the pressure alarm upper and lower limits:
1. Select and press the Menu option in the Main screen to view the Main Menu.
2. Select and press the first item on the Main Menu, Alarm Settings.
3. In the Alarm Settings screen, dial the Control Knob until Pressure is selected
in relief (Figure 136).
