4 The Main Menu
103

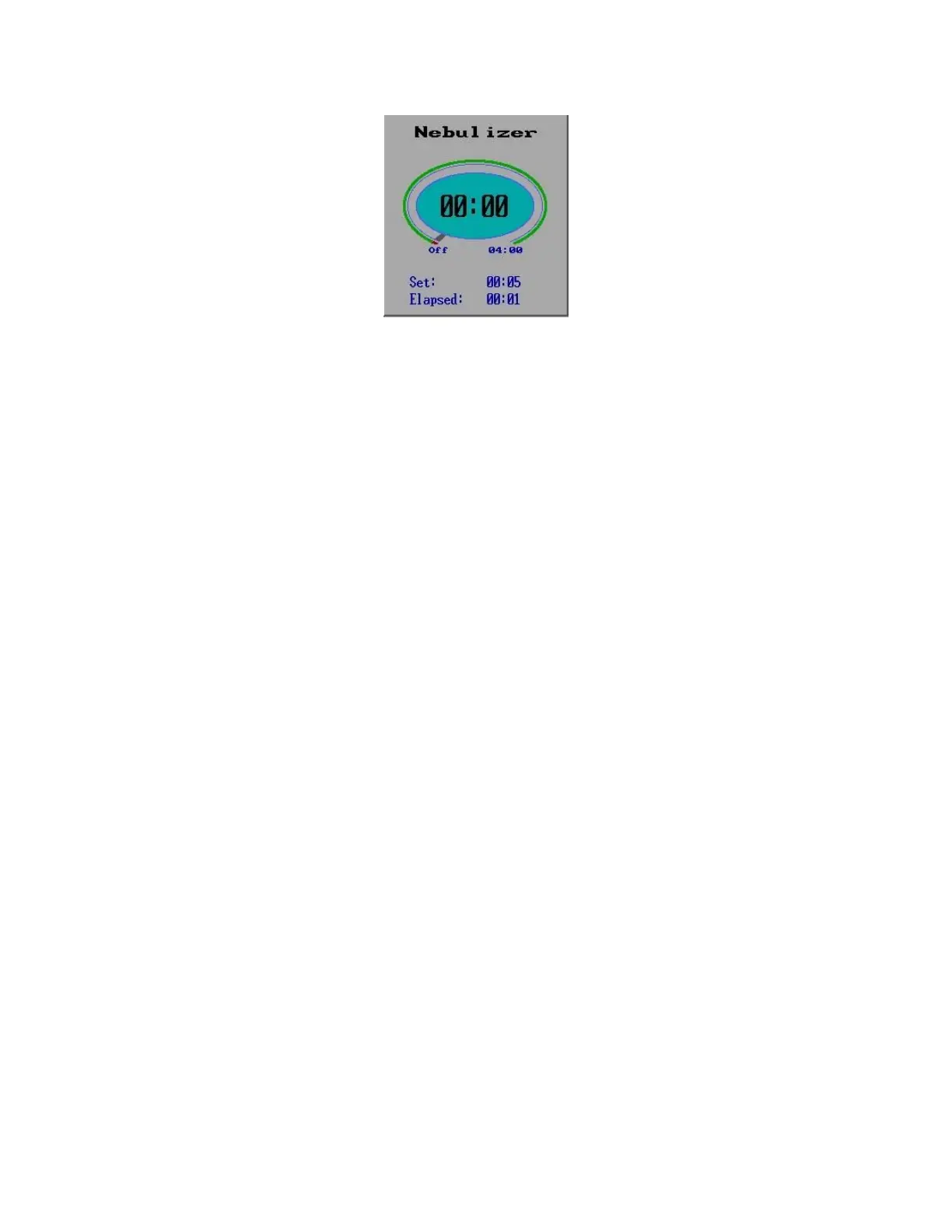

Figure 92: Nebulizer Pop Up Window
NOTE The Nebulizer option is active only during ventilation. You can however,
also set the Nebulizer in Standby Mode. It is activated after you start
ventilation.
The nebulizer is activated only when you set the Oxygen Supply to High
option (See page 38).
4. Turn the dial to set the time duration for nebulization. You can set the time
between 5 minutes and 4 hours. Each rotational detent of the knob
increases or decreases the nebulization time by 5 minutes.
The set time appears in the center of the ellipse and at the bottom of the screen.
A thick blue line surrounding the ellipse depicts the set time. The elapsed time is
displayed at the bottom of the screen and is depicted by a thick gray line.
You can set more nebuliziation time while the nebulizer is activated. The new set
time is the sum of the time you have added and the elapsed time.
5. Press the dial to activate the nebulizer and accept the settings.
During the nebulization process you can re-enter the Nebulizer screen and view
the elapsed time. Note that the remaining time is displayed in the Advanced
Settings Menu.
6. When the set time for the nebulizer operation has elapsed, the nebulizer is
deactivated automatically, and the nebulizer icon in the lower bar grays out
SET TIME AND DATE
The time and date, which are displayed in the Main screen, are adjusted from the
Advanced Setting screen.
To set the time and date:
1. From the Main screen select Menu – Advanced Setting.
2. In the Advanced Settings screen select Set Time and Date (Figure 93)
