Cineloop operation
When no ECG is
connected, a cine
gauge is displayed
indicating the cur-
rent frame. in the
cineloop.
When the scan mode is frozen, the unit automatically displays
cineloop boundary markers on either side of the last detected
heart cycles. The cineloop boundaries can be adjusted using
the cineloop assignable controls to cover one or more heart
cycles.
Cineloop overview

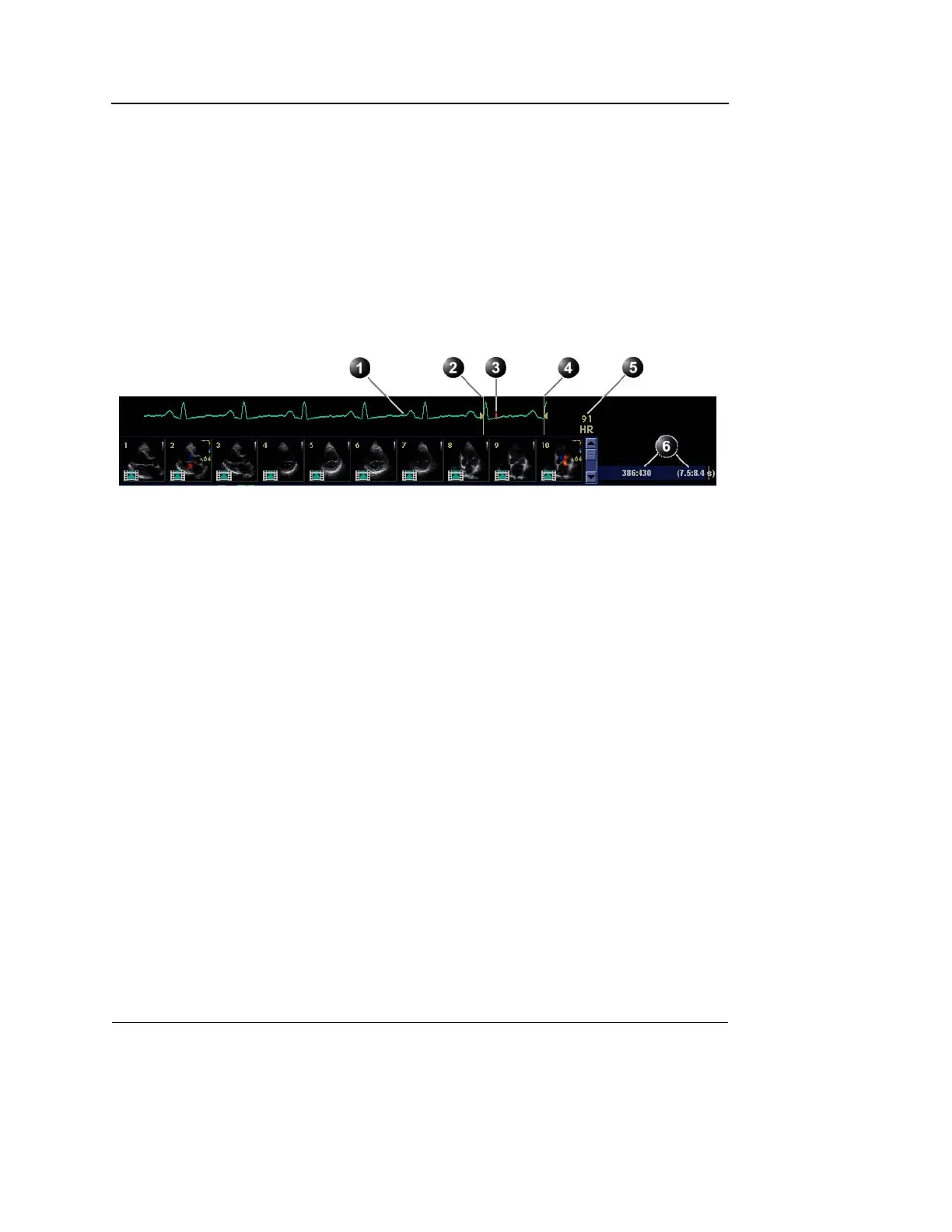

Figure 3-4: The cineloop controls display
1. ECG
2. Left marker
3. Current frame
4. Right marker
5. Heart rate or Cine speed (in replay)
6. Cine frame number values
