Probe Integration
This section covers:
• Connecting the probe
• Activating the probe
• Disconnecting the probe
Selecting probes
Selecting a new
probe unfreezes the
image.
• Only use approved probes.
• All imaging probes with an RS-type connector can be
plugged into any of the probe RS ports.
• Always start out with a probe that provides optimum focal
depths and penetration for the patient size and exam.
• Begin the scanning session by choosing the correct
application and preset for the examination by selecting
Preset.
• Begin the scan session using the default Power Output
setting for the probe and exam.
Connecting the probe
Probes can be connected at any time, whether the unit is on or
off.

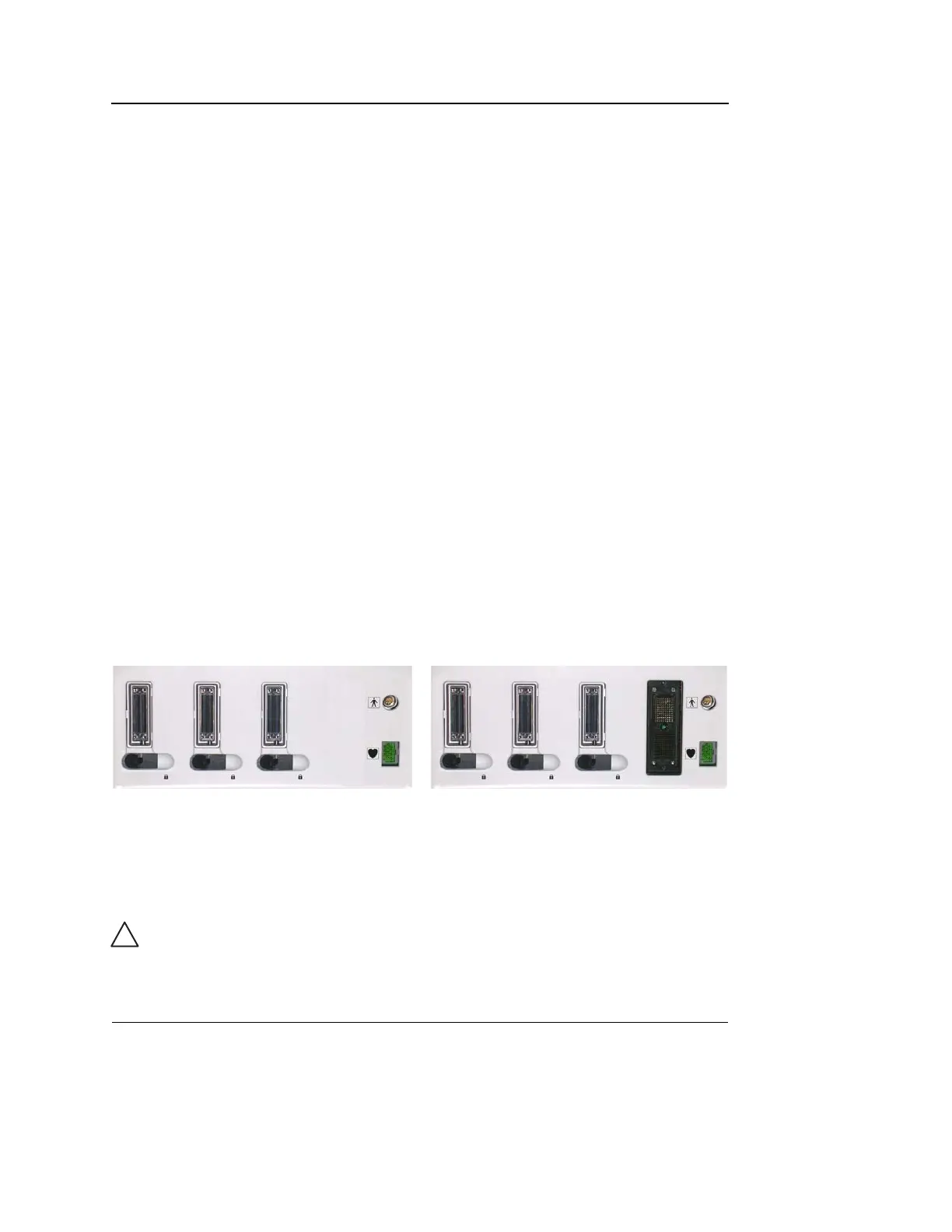

Figure 11-3: Probe ports
Vivid S5: 3 type RS ports Vivid S6: 3 type RS ports and one type OR
port to support TEE probes
CAUTION
Do not allow the probe head to hang freely. Impact to the probe
head may result in irreparable damage.
