Scanning Modes
Vivid
S5/Vivid
S6 User Man
ual
141
R2424458-100 Rev. 2

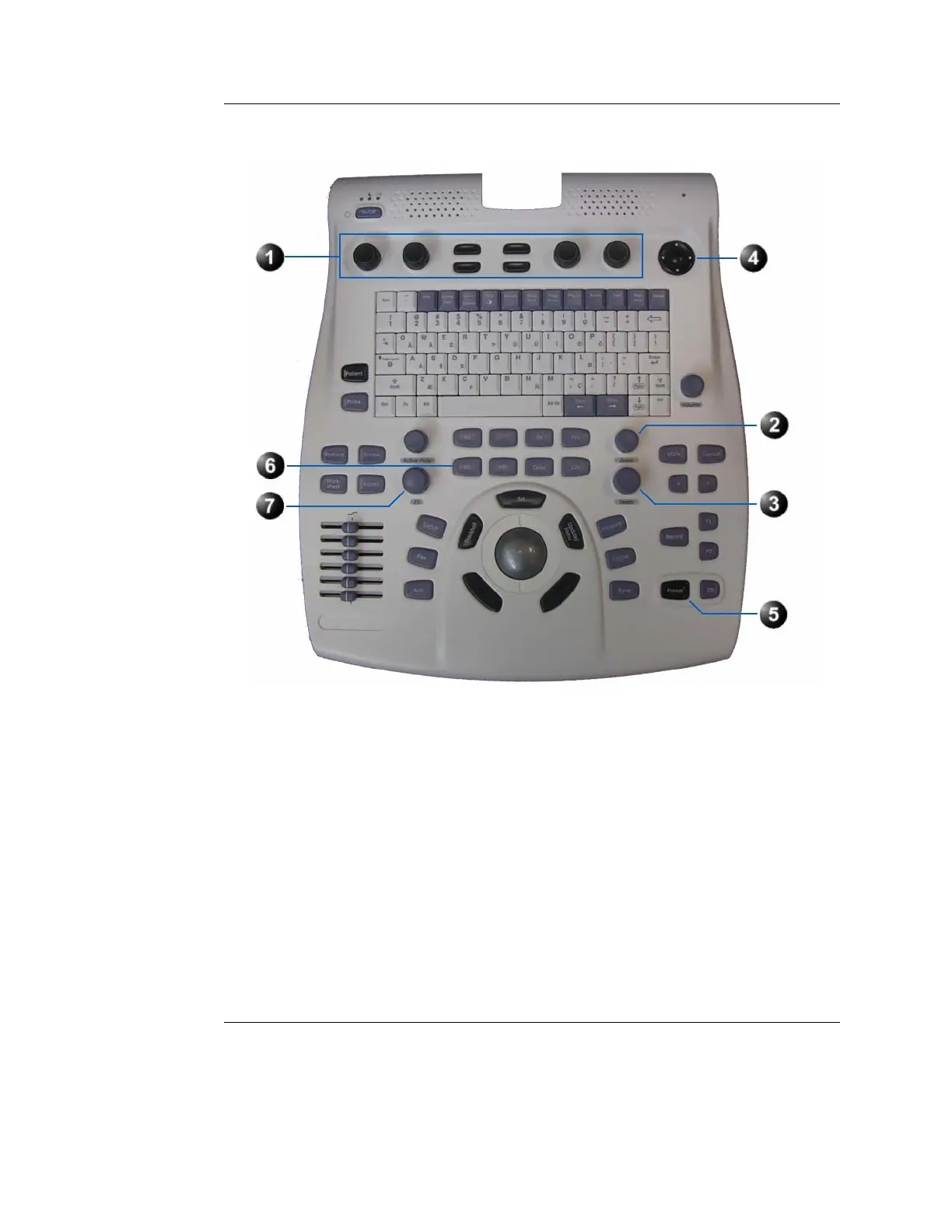

Figure
4-2: The 2D controls on the front p
anel
1.
Assig
nable keys:
• Width
• Frequency
• Focus Pos
• Frame rate
• Up/Down R
• Left/Right R
• Cineloop (in Freeze, on
ly)
• Dual focus
• B color maps
• Tilt
2.
Zoom
3.
Dep
th
4.
Sof
t menu
• Compress R
• Reject R
• Dynamic Range
• DDP R
• Speckle reduce R
• Contour
• Diff On/Off
• Power
5.
Freeze
6.
2D
7.
Gain
Controls marked with R are also available in freeze and cine replay
158
160
