Probes
568 Vivid S5/Vivid S6 User Manual
R2424458-100 Rev. 2
2. Orient the bracket so that the needle clip attachment is on
the same side as the probe orientation mark (notch or LED),
see Figure 11-7.

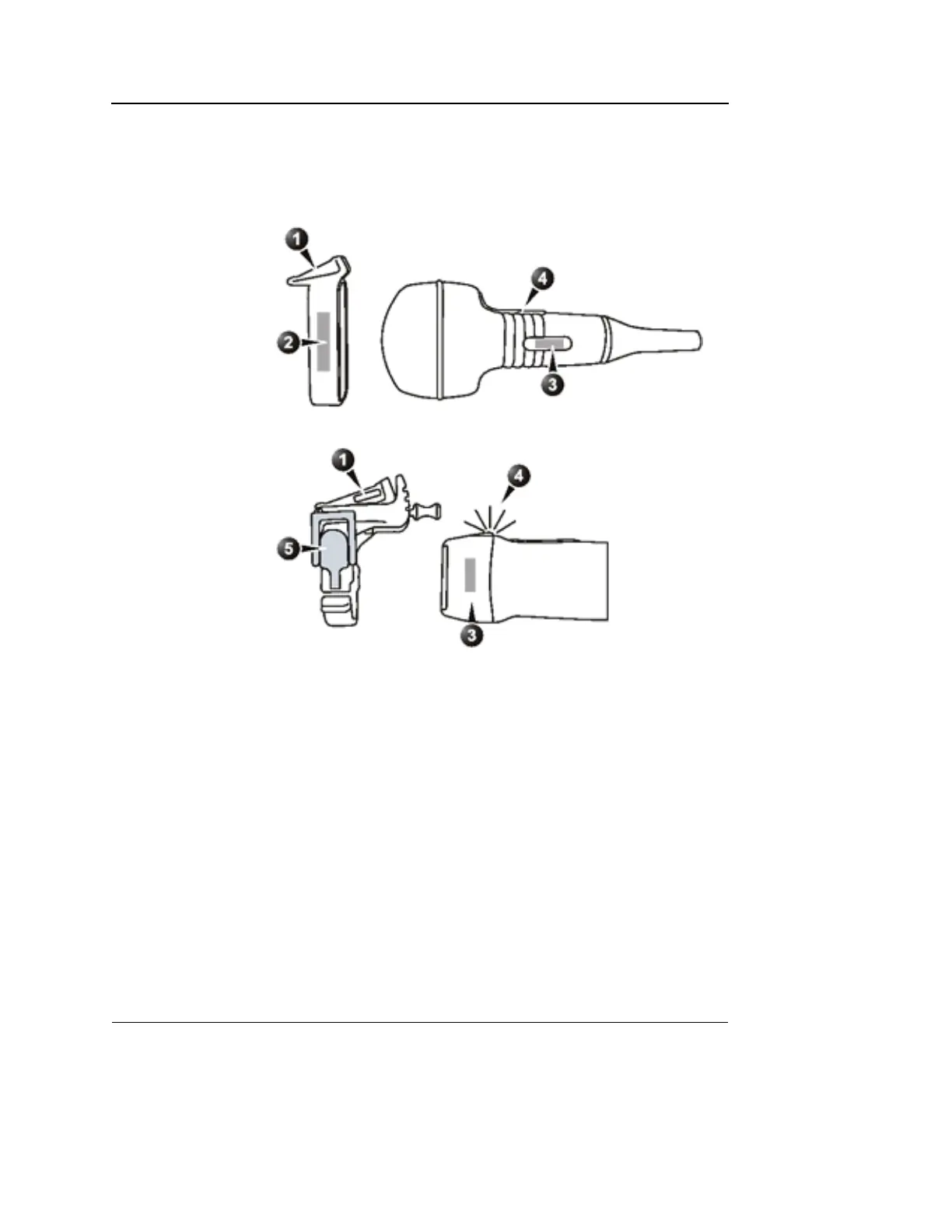

Figure 11-7: Probe/bracket alignment
3. Attach the biopsy bracket to the probe by sliding the bracket
over the end of the probe until it clicks or lock into place.
Make sure the bracket is firmly attached to the probe.
4. 3S probe: tighten the biopsy bracket to the probe by locking
the lever lock.
1. Needle clip attachment on the bracket
2. Bracket label
3. Probe label
4. Probe orientation mark (notch or LED)
5. Lever lock
