IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
Chapter 3 - System Setup 3-15
PRELIMINARY
11
Probe Holders Clean the gel wells with warm water and a damp cloth to remove all traces of gel.
12
Covers Check that all screws are in place, all chassis and internal covers are installed.
13
Peripherals
Check and clean the peripherals in accordance with the manufacturer’s directions.
To prevent EMI or system overheating, dress the peripheral cables inside the
peripheral cover.
14
AC System
Check the AC board connectors and the associated cabling for good connection
and proper insulation. Verify that the connections are secured.
15
Power Cord
Check the power cord for cuts, loose hardware, tire marks, exposed insulation, or
any deterioration. Verify continuity.
Tighten the clamps that secure the power cord to the unit and the outlet plug to the
cord. Replace the power cord and/or clamp, as required.
16
Plastic Clamp
Secure the cable to the back of the system using the plastic clamp provided.
17
Front Castors
Check that the front castors can roll and swivel, and can be placed in the locked
position by pressing the foot brake (lower lever) down on each.
Ensure that the wheels are locked and there is no movement in any direction.
18
Rear Castors
Check that the front castors can roll and swivel, and can be placed in the locked
position by pressing the foot brake (lower lever) down on each.
Ensure that the wheels are locked, unable to swivel left or right, and that there is
no movement forwards or backwards.

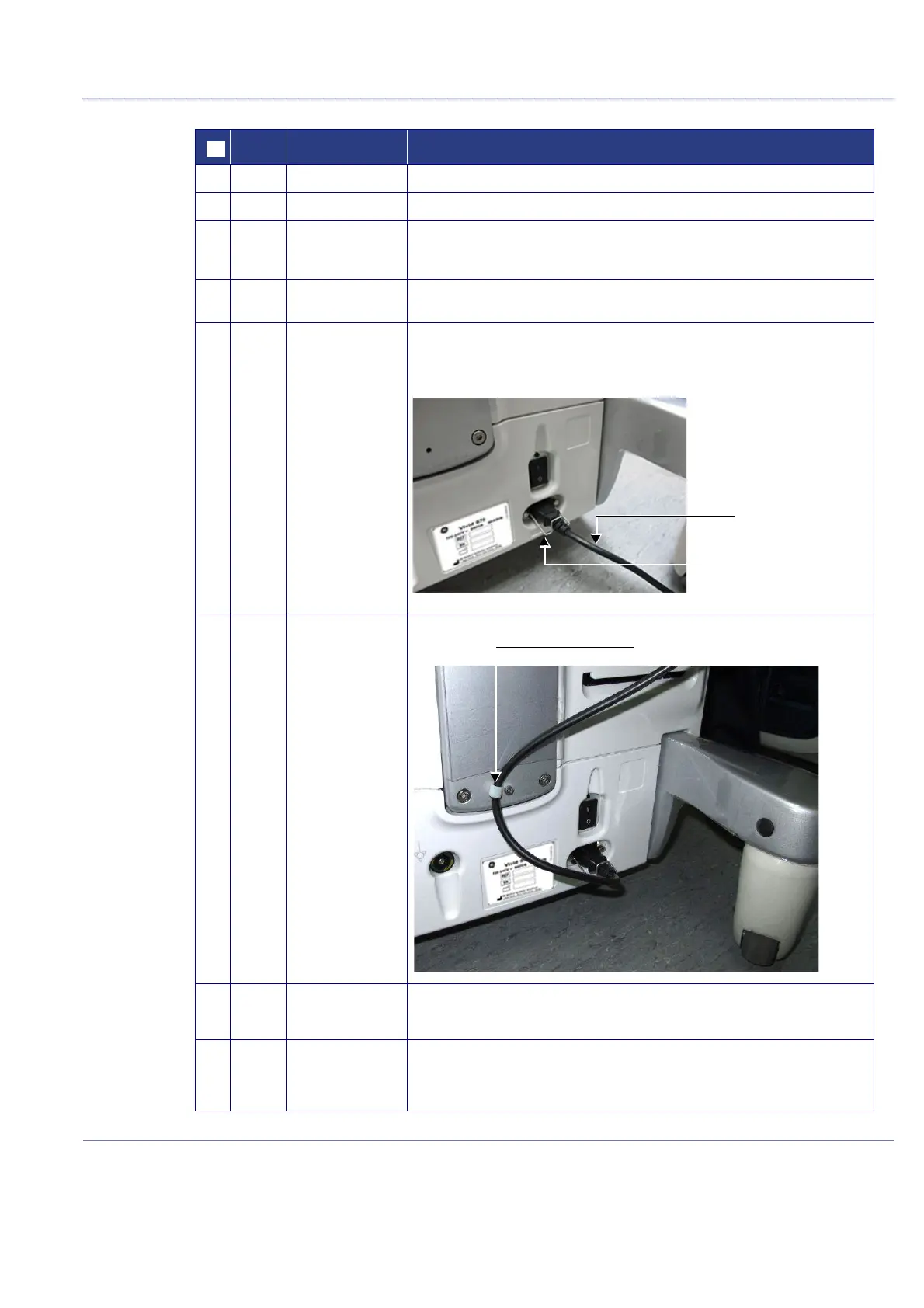

Table 3-9 Damage Inspection Checklist - Vivid S60N/Vivid S70N Systems (Continued)
Step Item Recommended Procedure
Clamp securing AC cable
AC cable
AC cable secured with plastic clamp
To Next Page
