D
IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
1-20 Section 1-1 - Overview
PRELIMINARY
1-7-2 Label Descriptions
The following table shows the labels and symbols that may be found on the Vivid S60N/Vivid S70N
ultrasound unit, and provides a description of each label’s purpose and location.

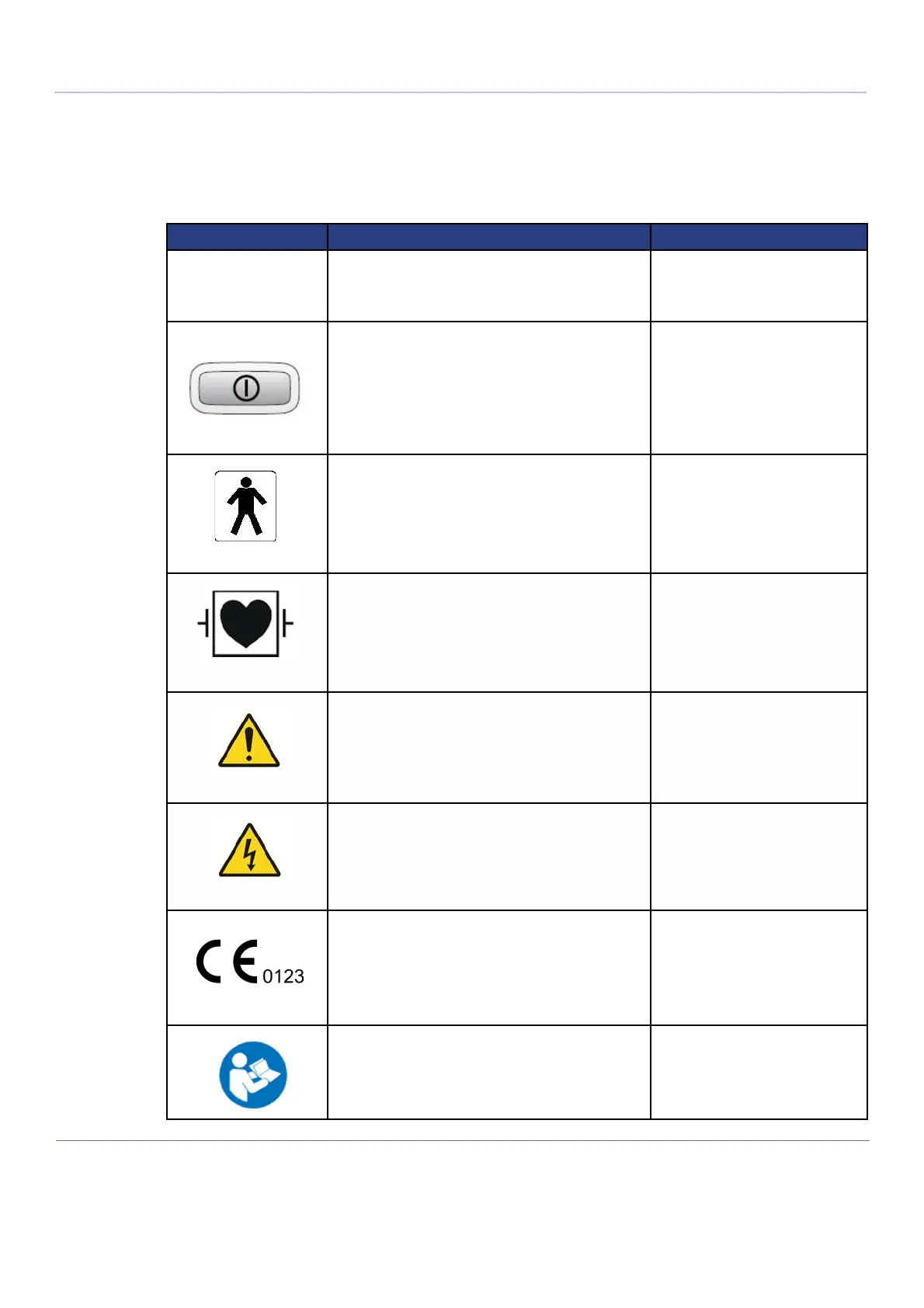

Table 1-7 Label Icons and Symbols - Description and Location
Label Name Description Location
Identification and Rating
Plate
Manufacturer’s name and address.
Date of Manufacture.
Model and Serial numbers.
Electrical ratings (Volts, Amps, phase, and frequency.
Rear of the system.
On/Off button
Warning: system shutdown using the On/ Off button does
not disconnect the ultrasound unit from mains voltage.
For disconnecting the ultrasound unit from mains voltage
after system shutdown, turn the Power ON/OFF switch on
the rear panel to the OFF position - refer to Figure 4-4 on
page 4-5.
Control panel
Equipment Type BF (man in the box symbol)
IEC 878-02-03 indicates B Type equipment having a
floating applied part.
Rear of the system.
Indicates defibrillation-proof Type CF equipment
Above the ECG inlet, ECG connector
and surgical probes.
CAUTION - General
(is intended to alert the user to refer to the User Manual or
other instructions when complete information cannot be
provided on the label).
Label on the rear of the system.
Also used near the peripherals output
power connector.
CAUTION - Dangerous voltage
(the lightning flash with arrowhead in equilateral triangle) is
used to indicate electric shock hazards.
Various.
This unit carries the CE mark.
The Vivid™ S60N and Vivid™ S70N unit complies with
regulatory requirements of the European Directive 93/ 42/
EEC concerning medical devices.
It also complies with emission limits for a Group 1, Class B
Medical Device as stated in EN 60601-1-2
(IEC 60601-1-2).
Rear of the system.
Read the Service Manual. Rear of the system.
