IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-119
PRELIMINARY
8-5-14 PSB (Probe Select Board) Board Replacement Procedure
NOTE: When tightening screws, do not over-tighten or use excessive force.
NOTE: The PSB (Probe Select Board), shown in Figure 8-145, forms an integral part of the electronic cage
door. The metal framework surrounding the Board incorporates the upper and lower hinges.
8-5-14-1 Tools
Phillips screwdriver.
8-5-14-2 Time Required
15 minutes
8-5-14-3 Preparation
Shut down the Vivid™ S60/Vivid™ S70 ultrasound unit, as described in Power Shut Down on page 4 - 7.
8-5-14-4 PSB Board Removal Procedure
1) Remove the following covers: left side, right side, DVD, front.
When performing these procedures, take precautions to avoid damage of
electrostatic-sensitive components. Always have the ESD wrist strap
connected either to the DIB chassis or to the GND plug at the rear of the
scanner, and to your hand.
If a battery is present, first remove the battery as it contains stored energy.
Refer to Battery Removal Procedure on page 8 - 145.

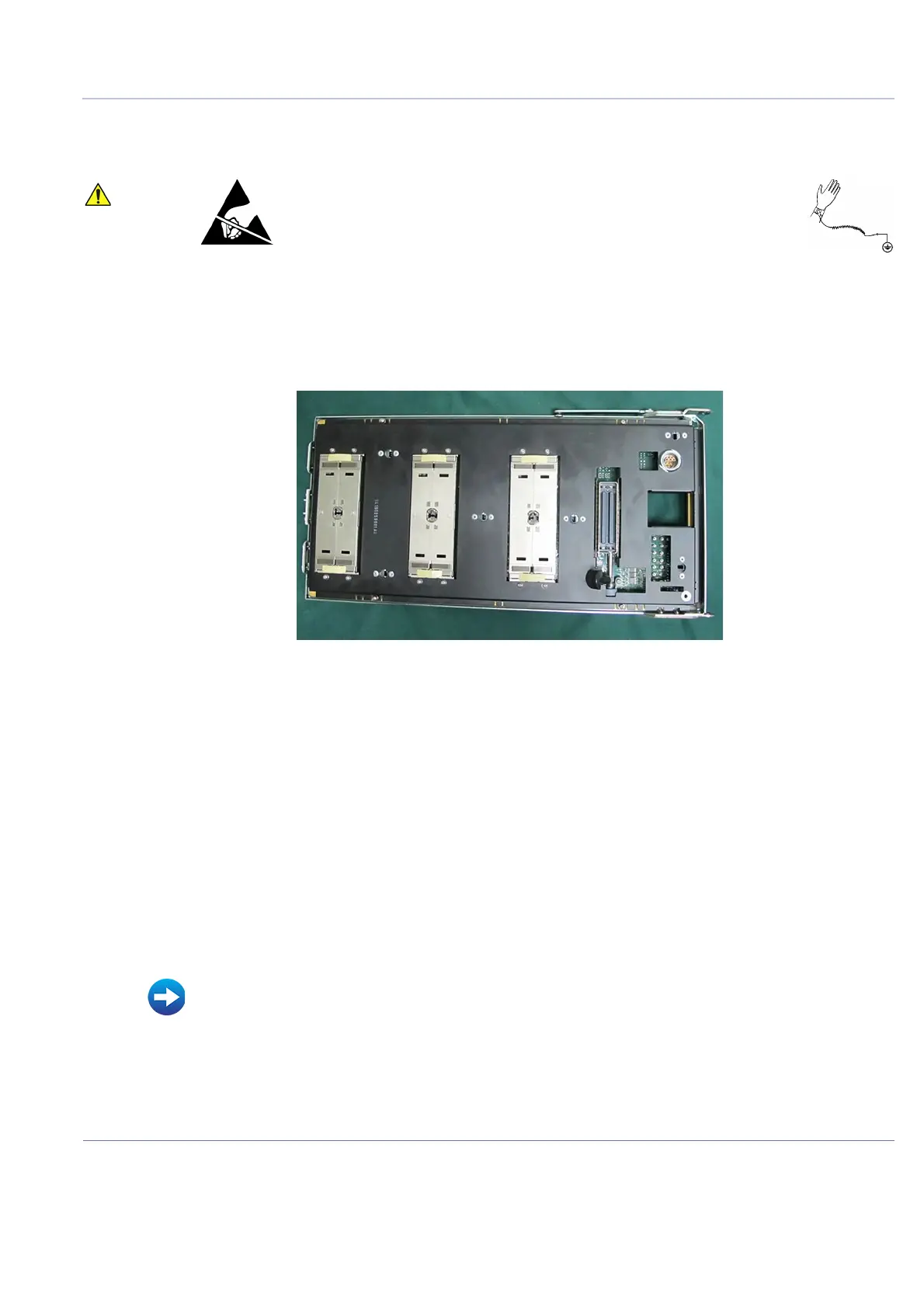

Figure 8-145 Probe Select Board (PSB)
Refer to Table 9-15 on page 9-14.
• Air Inlet (Left Side) Cover Removal Procedure on page 8 - 7
• Right Side Cover Removal Procedure on page 8 - 10
• DVD Cover Removal Procedure on page 8 - 11
• Front Cover Removal Procedure on page 8 - 16
