IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-29
PRELIMINARY
8-2-13 AC Distribution Box Cover Replacement Procedure
8-2-13-1 Tools
8-2-13-2 Time Required
5 min
8-2-13-3 Preparations
Shut down the Vivid™ S60/Vivid™ S70 ultrasound unit, as described in Power Shut Down on page 4 - 7.
8-2-13-4 AC Distribution Box Cover Removal Procedure
Note: The cover is secured to the base of the mechanical platform by two snap-lock securing clips
on the bottom inner side of the cover - illustrated below.
1) Working from the rear of the system, raise the AC cable securing clip to the UP position.
The clip is now aligned to clear the aperture in the cover.
2.) Grip the bottom of the AC Distribution Box cover and pull it towards you to release it from the lower
snap-lock securing clips. Remove the cover (Figure 8-30).
Refer to Table 9-8 on page 9-7.

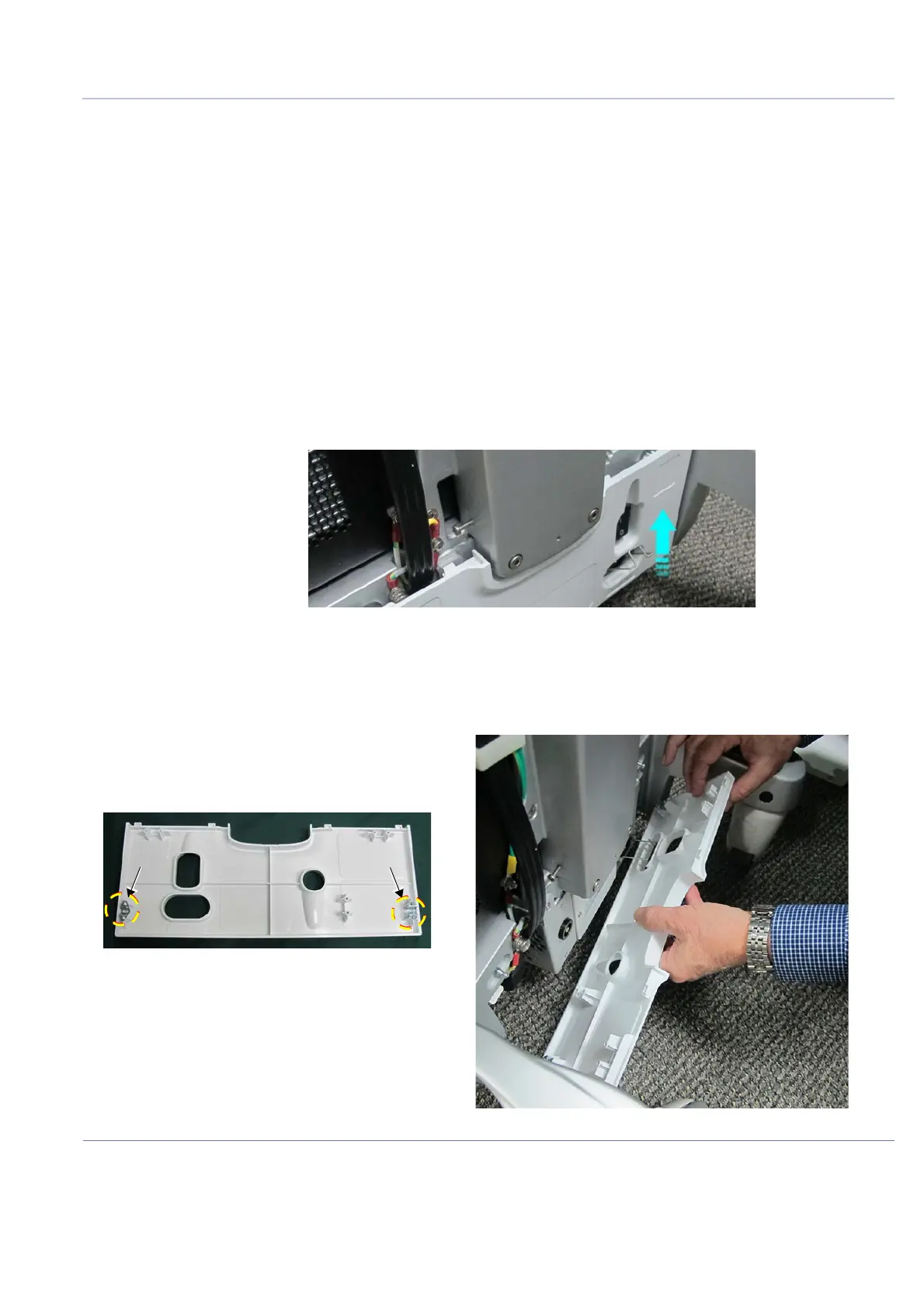

Figure 8-29 Removing the AC Distribution Box Cover
Figure 8-30 Removing the AC Distribution Box Cover
