Section 5-2
General Information
5-2-1 Introduction
The Vivid™ S60/Vivid™ S70 system is a compact ultrasound scanner that can be used with both
phased array and linear array ultrasound probes and Doppler (Pencil) probes.
Weighing only 75 kg (165 lb), the Vivid™ S60N/Vivid™ S70N ultrasound scanner is extremely versatile
and - depending upon the installed software - can be used for various imaging modes. These include:
• 2D Gray Scale and 2D Color Flow imaging
• 4D imaging
• M-Mode Gray Scale imaging
• Color M-Mode
• Doppler
• Different combinations of the above modes
The Vivid™ S60/Vivid™ S70 system main hardware components are configured as illustrated in Figure
5-1.

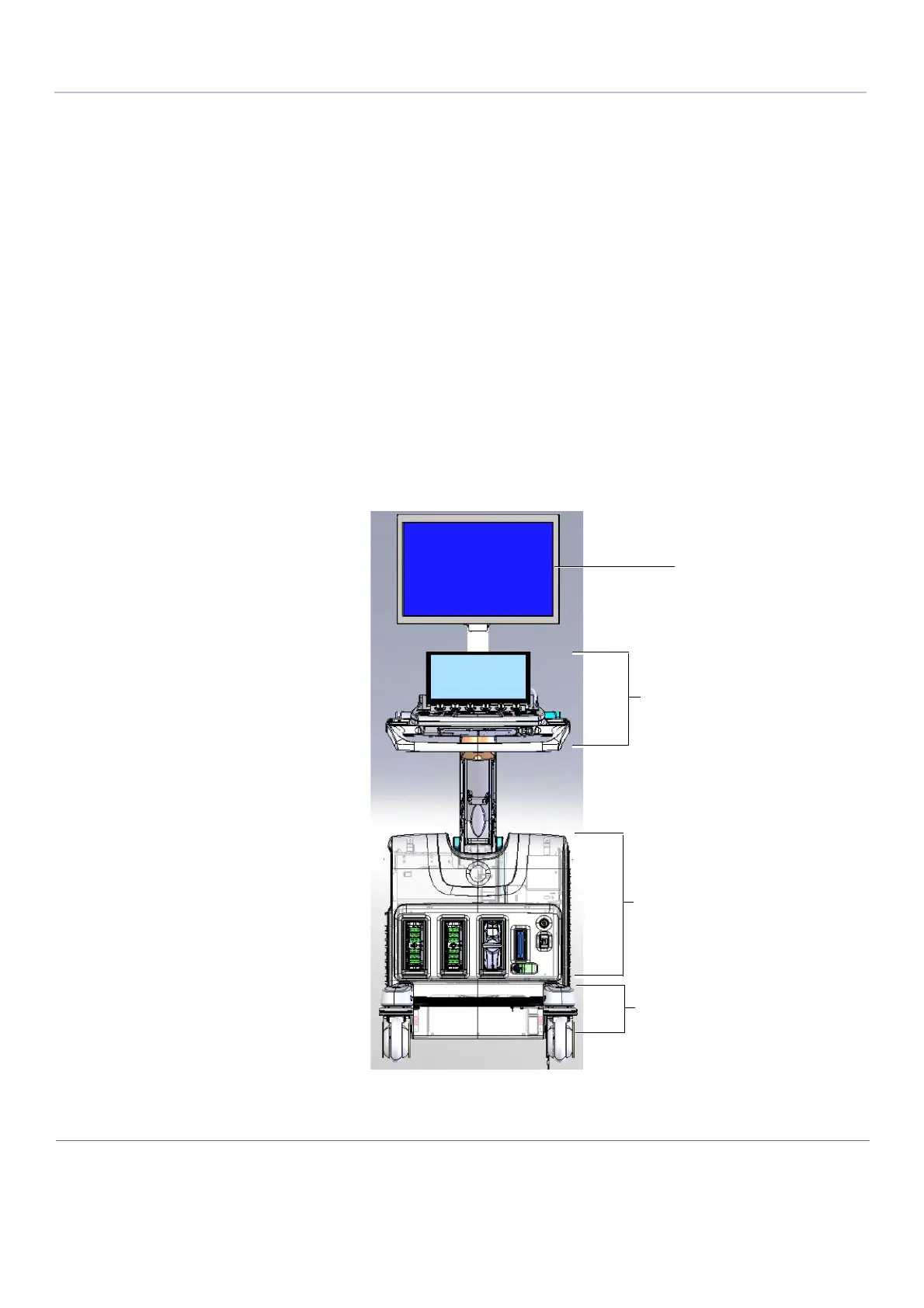

Figure 5-1 Vivid™ S60/Vivid™ S70 System - Configuration of Main Hardware Components
Operator Panel Input/Output
LCD Monitor
(incl. Touch Screen, Keyboard)
Electronic Cage
AC Distribution Box
To Next Page
