D
IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-25
PRELIMINARY
5.) Pull the cover towards you, then lift and remove it from the system.
8-2-10-5 Left Rear Cover Installation Procedure
1) Return the left rear cover to its original position at the rear of the system, taking care to tilt it
sufficiently so that the lower portion overlaps the system chassis on the left side - Figure 8-19.
2) Make sure the cutout in the cover is properly aligned with the locating pin (Figure 8-18) then push
the cover downwards to secure it in position.
3) Return the screw (previously removed) to the securing tab on the inner right side of the cover and
tighten securely - Figure 8-17, right.
4) Install the following covers: front, DVD, right side, left side
5.) Reconnect any peripherals previously connected to the system.

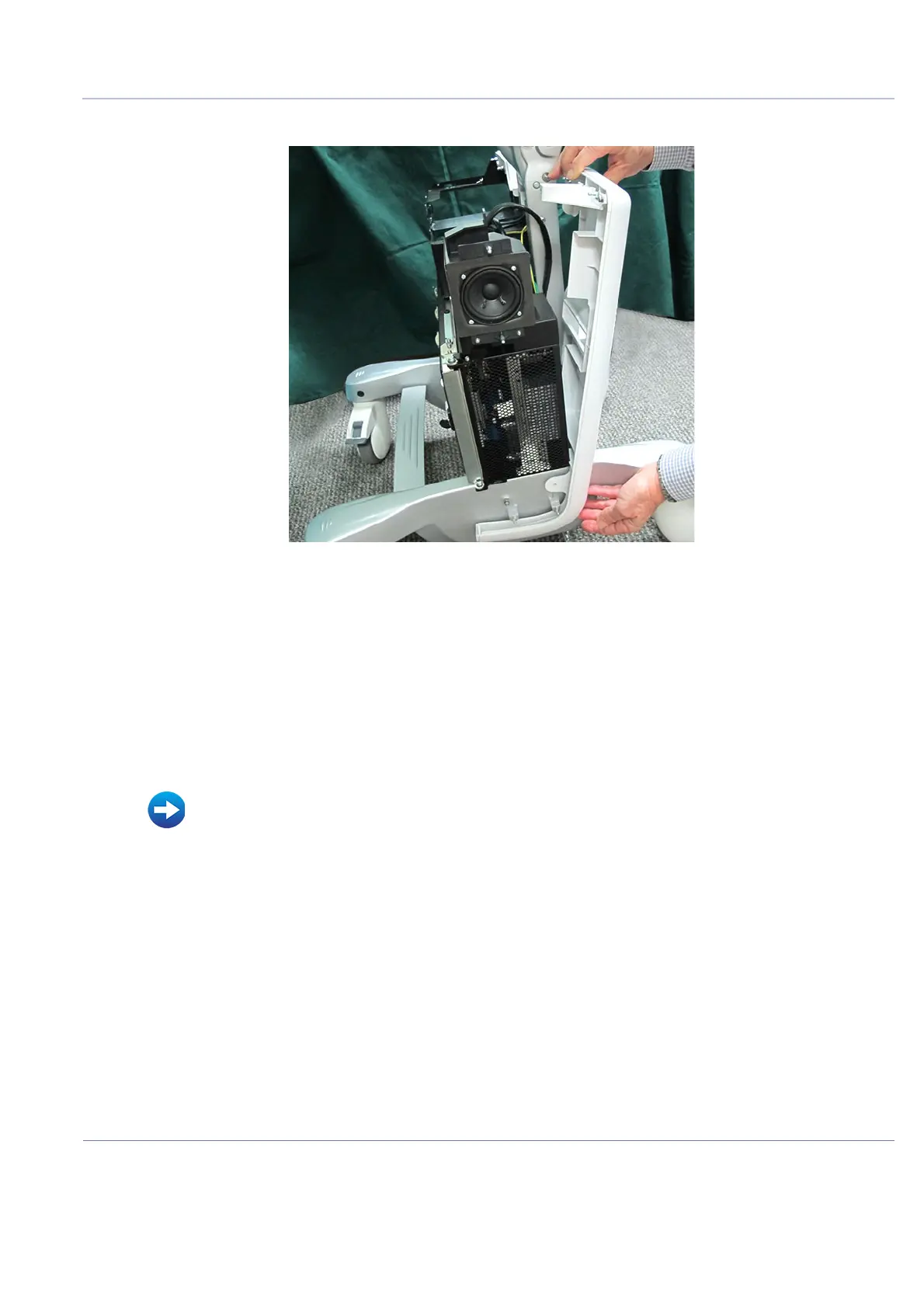

Figure 8-23 Removing the Left Rear Cover
• Front Cover Installation Procedure on page 8 - 19
• DVD Cover Installation Procedure on page 8 - 12
• Right Side Cover Installation Procedure on page 8 - 10
• Air Inlet (Left Side) Cover Installation Procedure on page 8 - 8
