8-10 Section 8-2 - Covers - Replacement Procedures
PRELIMINARY
8-2-3 Right Side Cover Replacement Procedure
8-2-3-1 Tools
None
8-2-3-2 Time Required
5 min
8-2-3-3 Preparations
Shut down the Vivid™ S60/Vivid™ S70 ultrasound unit, as described in Power Shut Down on page 4 - 7.
8-2-3-4 Right Side Cover Removal Procedure
Note: The right side cover is secured to the mechanical platform by 4 snap-lock securing clips on
the inner side of the cover - illustrated below.
1) Gripping the recess at the bottom of the cover pull the right side cover out towards you to release
it from the snap-lock securing clips (Figure 8-5).
2) Pull the top of the cover out towards you, releasing it from the upper securing clips.
3) Remove the cover from the system.
8-2-3-5 Right Side Cover Installation Procedure
1) Return the right side cover to the system, carefully aligning it with the securing clips.
2) Holding the recess with one hand, push the top of the cover upwards and inwards with the other
hand, until clicks into place.
3) Push the bottom of the cover upwards and inwards, until it clicks into place.
Refer to Table 9-8 on page 9-7.

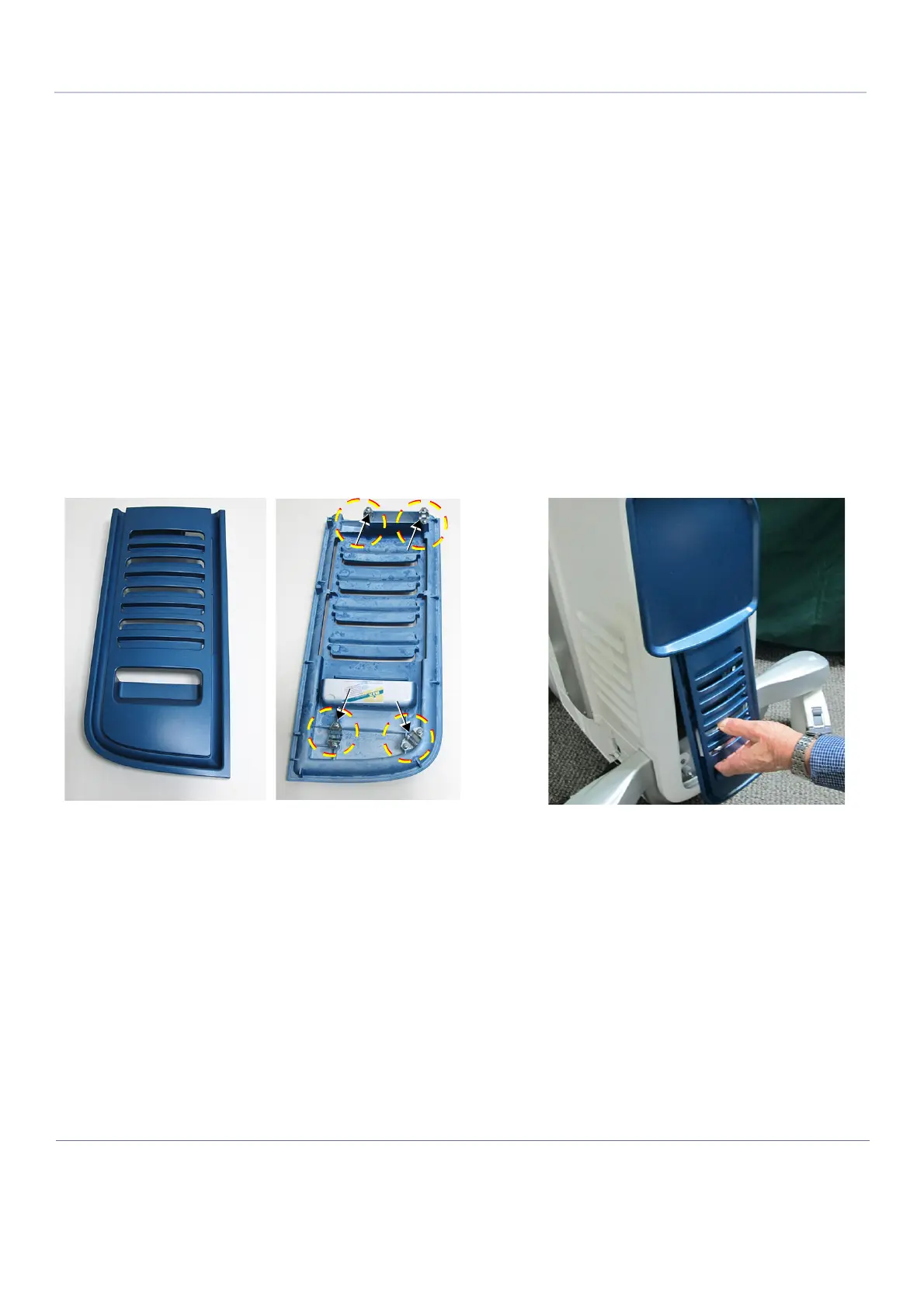

Figure 8-5 Removing the Right Side Cover
