D
IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-43
PRELIMINARY
7.) Using both hands, lift the Rotaries Board away from the Touch Screen and remove.
8-3-5-5 Touch Screen Rotaries Board Installation Procedure
1.) Carefully place the Touch Screen Rotaries Board in position at the rear of the Touch Screen.
2.) Fasten securely with the 8 screws (previously removed).
3.) Install the Touch Screen on the system:
4) Refit the following Touch Screen covers: rear, service:
5) Fit the six Touch Screen Rotary Knobs:

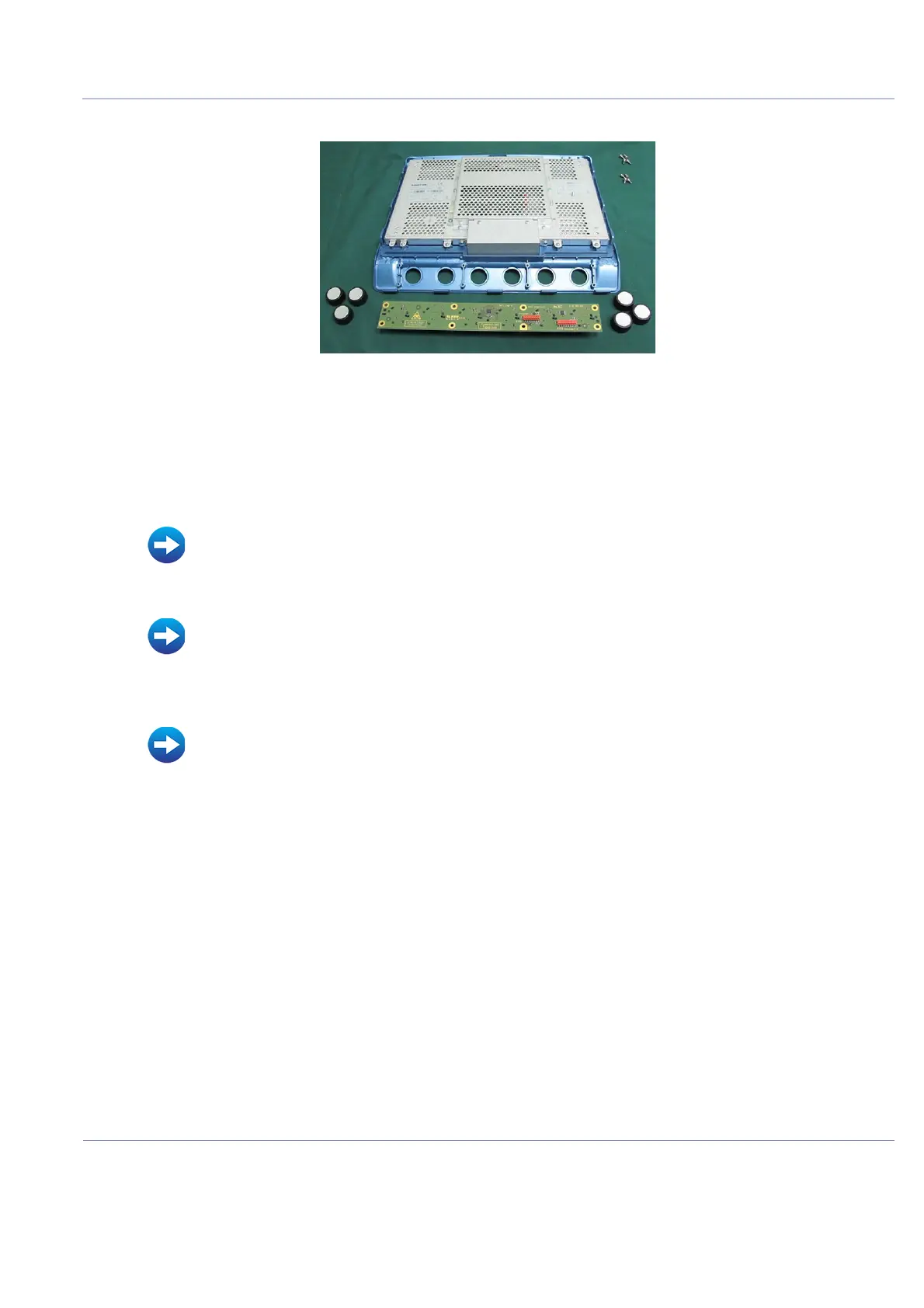

Figure 8-48 Touch Screen and Rotaries Board - Rotary Knobs Removed
• Touch Screen Installation Procedure on page 8 - 41
• Touch Screen Rear Cover Installation Procedure on page 8 - 37
• Touch Screen Service Cover Installation Procedure on page 8 - 35
• Rotary Knob Installation Procedure on page 8 - 58
