D
IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-151
PRELIMINARY
3.) Remove the screw and the Lower Service Cover.
4.) Using side cutting pliers, cut the following tie-wraps:
- three tie-wraps in the monitor end of the monitor cable
- two tie-wraps on each side of the Upper Arm
- two tie-wraps on each side of the Lower Arm
5.) Remove the cables from the Arm.
Lift the Arm a little, as illustrated below to ease the removing of the cables from the base of the Arm.
6.) Remove the Arm.

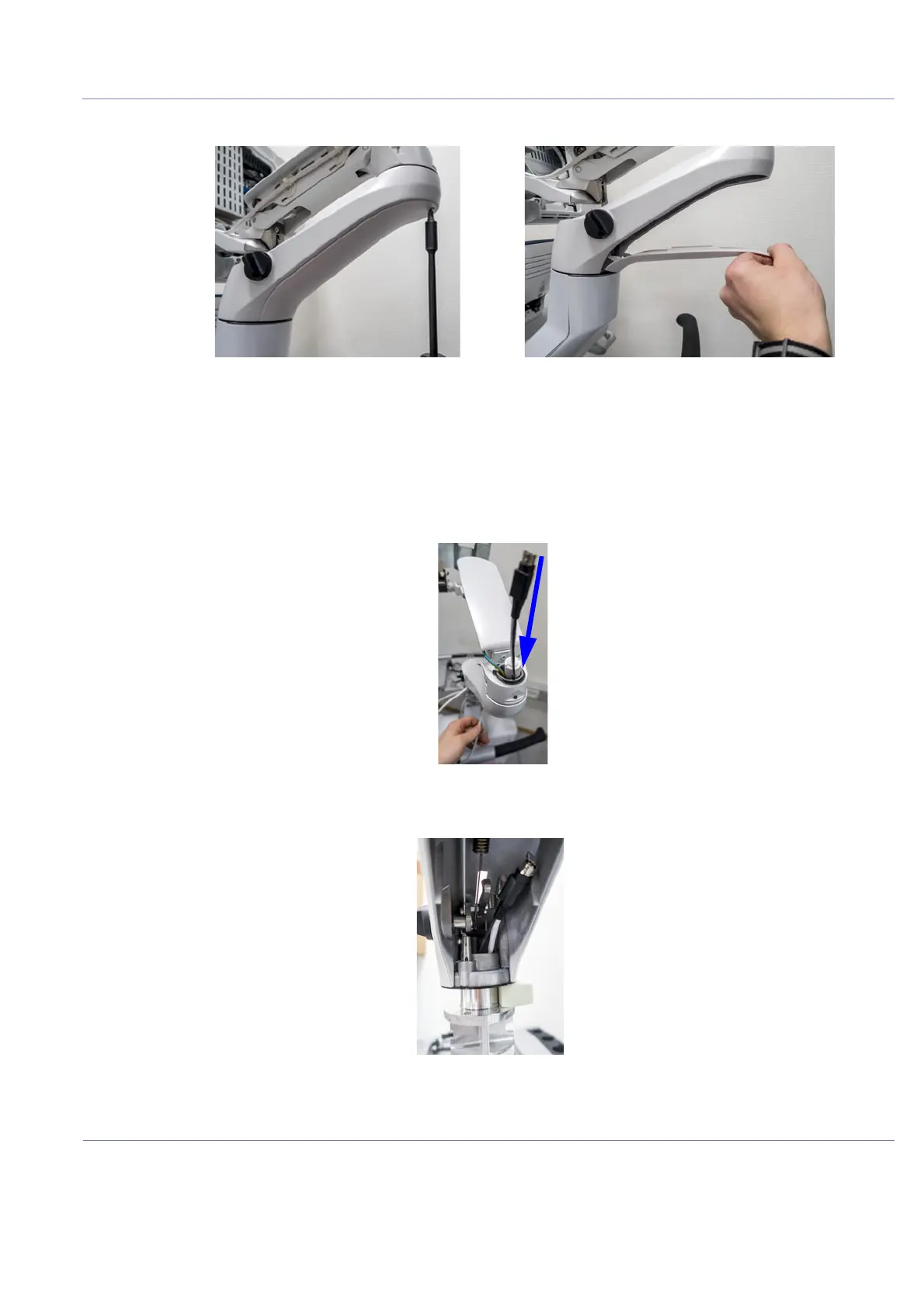

Figure 8-183 Remove the Lower Service Cover
Figure 8-184 Remove cables
Figure 8-185 Lift the Arm
