13 – 184 HEIDENHAIN Service Manual iTNC 530

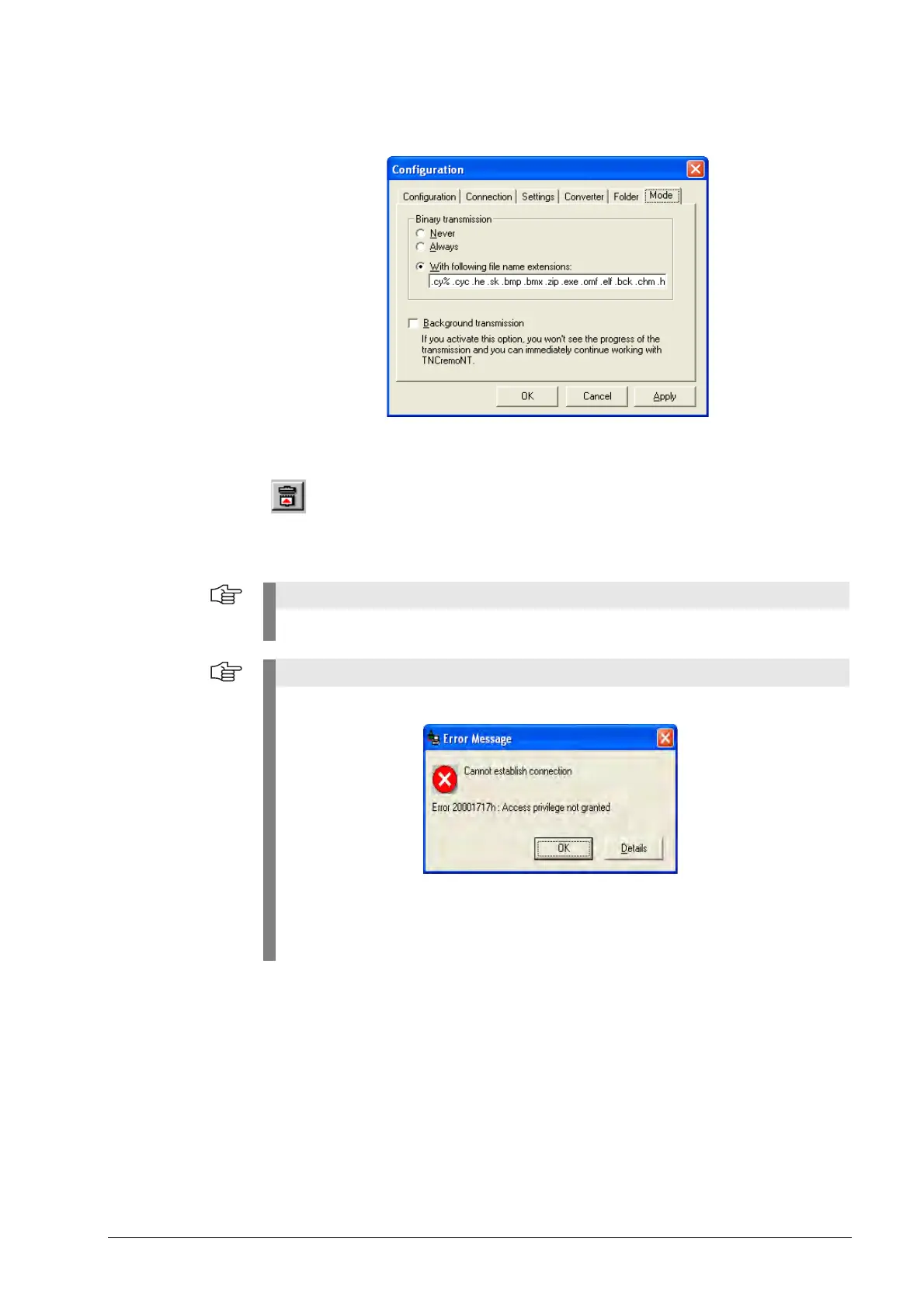

8 Check the transmission mode (BINARY-ASCII conversion). It should be set as follows:
8 Confirm with Apply and OK.
8 Click this icon. --> The connection is set up.
8 The TNCremo screen is split and the control's hard disk is shown in the lower half of the
screen.
If this does not work, check the connecting cable and the settings.
If the following error message is displayed during connection establishment, …
... the external access to the control is not permitted!
In this case press the MOD key and subsequently the EXTERNAL ACCESS ON/OFF soft key
in order to permit access.
