HEIDENHAIN ITNC 530 Service Manual

20 – 330 HEIDENHAIN Service Manual iTNC 530

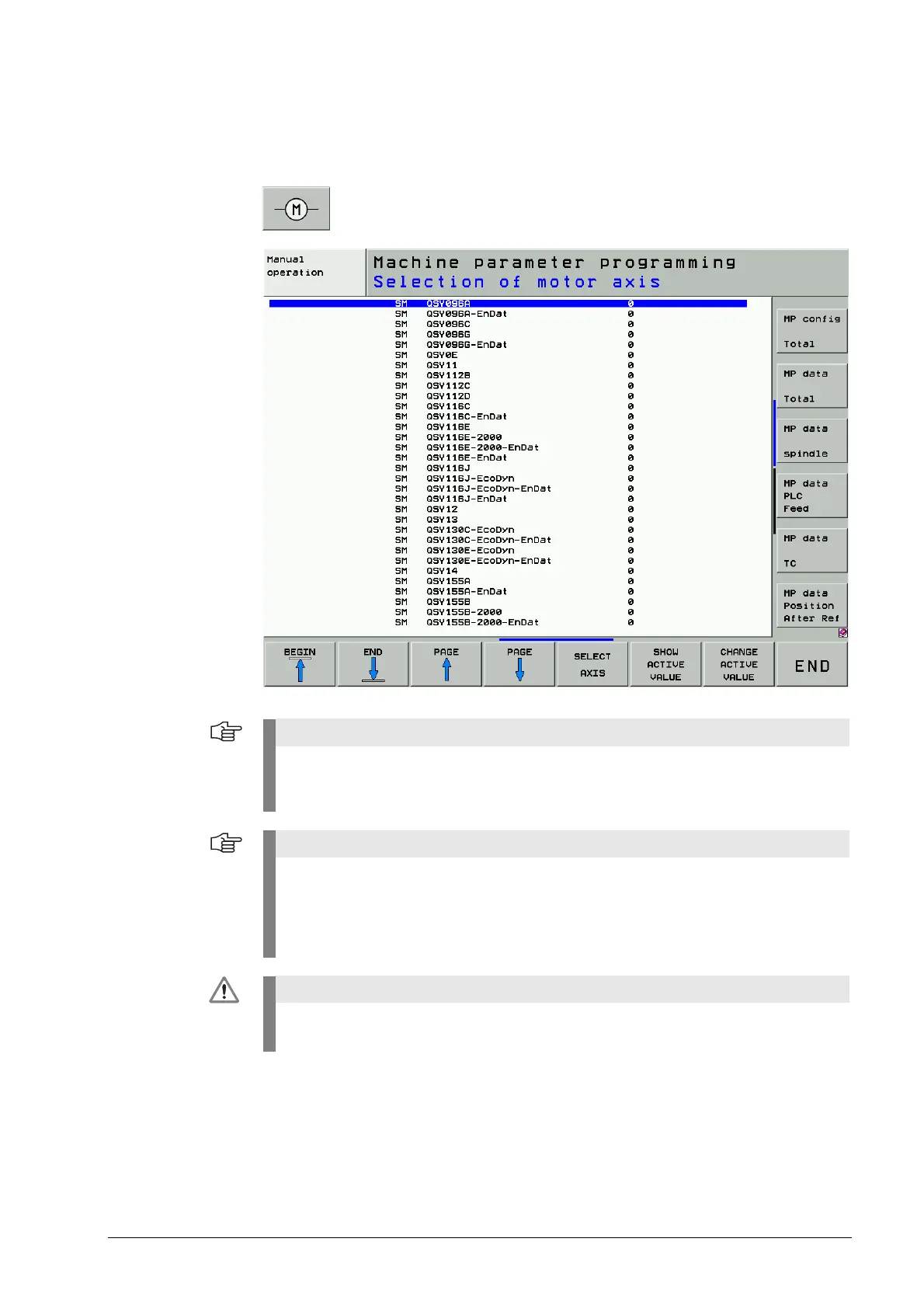

Motor table 8 Open the machine parameter list.
8 Place the cursor on machine parameter MP 2200.x for the axis/spindle concerned.
8 Switch to the next soft-key row.
8 Press this soft key. --> The table with the motors appears:
Note
The original table (MOTOR.MOT) contains asynchronous motors, linear motors, synchronous
motors, torque motors and special spindle motors for the volts-per-hertz control mode of
various manufacturers.
Note
The original motor table by HEIDENHAIN is stored in the SYS partition of the hard disk.
The OEM can create his own motor table (with additional motors and/or edited data) which
is stored in the PLC partition of the hard disk.
If the designation of motor tables (MOTOR.MOT) is the same, the data of the OEM table have
priority.
DANGER
Do not change any values in the motor table!
This could lead to damage to property or persons!

HEIDENHAIN ITNC 530 Specifications

General

Control Type	CNC
Look-ahead	Yes
Spindle control	Yes
Touch probe cycles	Yes
Operating voltage	24 V DC
Programming	Conversational and DIN/ISO programming
Interpolation	Linear, Circular, Helical
Data Interface	Ethernet, USB, RS-232
Memory	1 GB
Programming Language	HEIDENHAIN plain language
Operating Modes	Manual, Automatic, MDA
Software Options	Various software options available
