8 – 86 HEIDENHAIN Service Manual iTNC 530
Entry of
NC programs
Not each single block of an NC program is recorded in the log (as the size of the log file has not
been designed for this purpose). Information is recorded at the start and end of an NC
program.

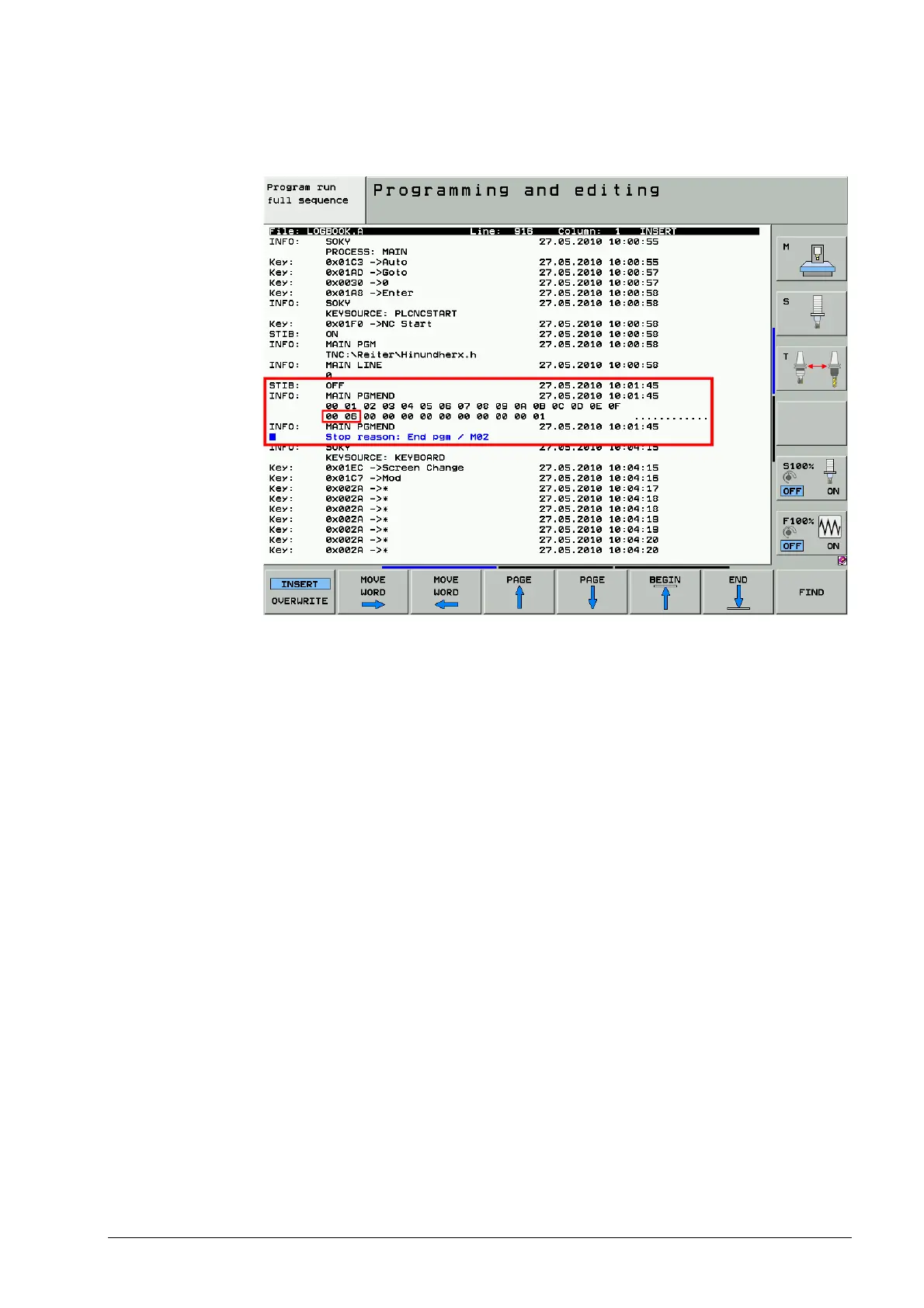

Figure: Example for information at program end
Here an NC program was exited properly:
STIB: OFF
The machine does not operate any more; the "*" in the display goes out.
INFO: MAIN PGMEND
The code 00 06 in the second line means END PGM, M02 (Siehe “Overview of Log Entries”
on page 8 – 83).
INFO: MAIN PGMEND
Information about the program end in conversational format.
