OPERATOR'S STATION
2
MNEC-01-006
Height Kickout ON/OFF, Stop Height Setting
Rotate selector knob (2) to highlight ON (8).
ON/OFF Selection
Press selector knob (2) to turn ON (enabled).
(A box next to ON turns green.)
This enables the setting of the lift arm height.
Press selector knob (2) again to turn OFF (disabled).
When the height kickout is ON (enabled), indicator
(12) will be displayed on the monitor.
Display content

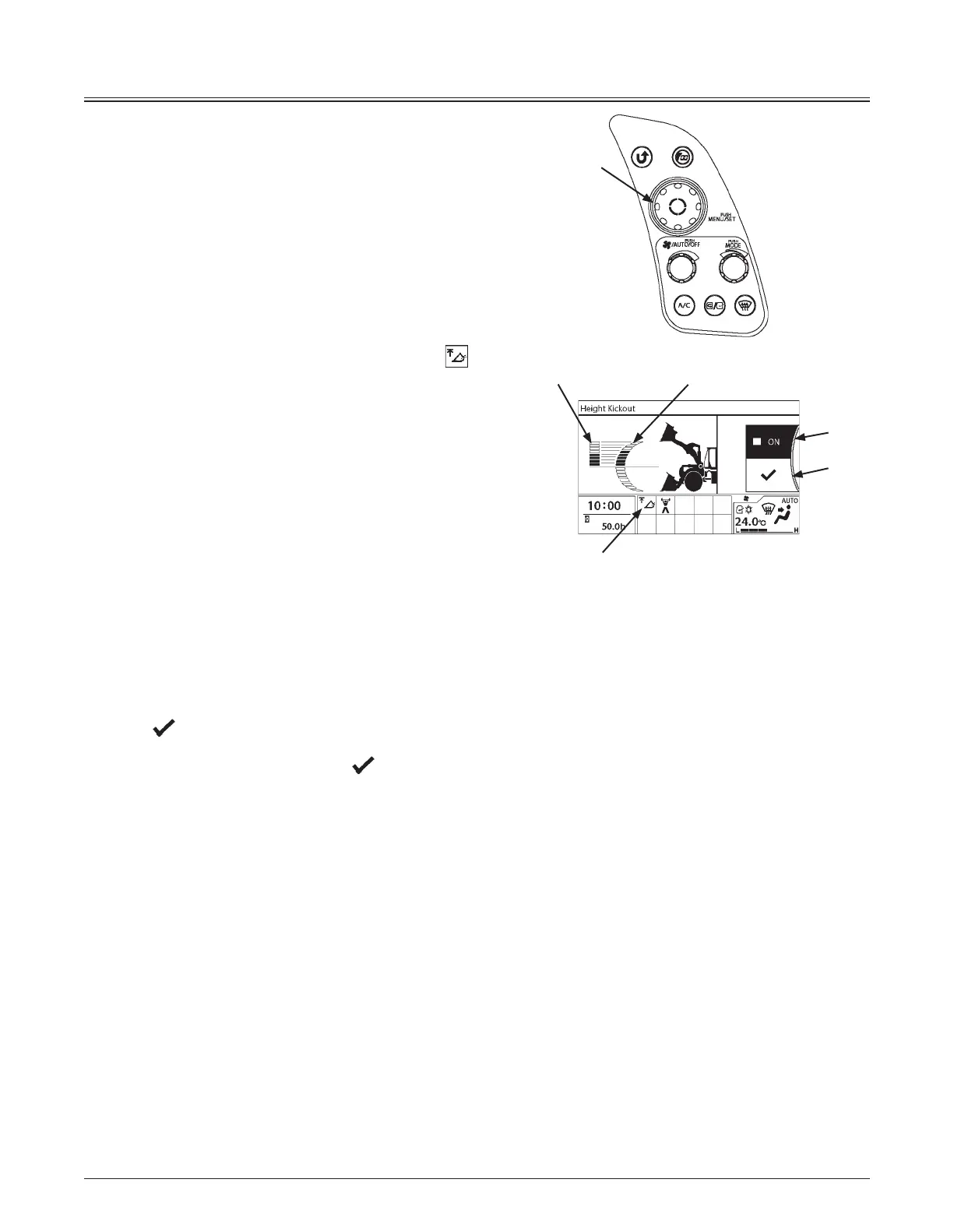

Segment (10) indicates current set value of the height
kickout.
Segment (11) indicates current height of the lift arm.
Setting Operation
When the height kickout is ON (enabled), the lift arm stop
height can be set.
When the lift arm height changes by operating the lift
arm control lever, the height is displayed on segment
(11).
When the lift arm height is within the setting range, the
mark (9) will be displayed.
Rotate selector knob (2) to highlight (9).
Press selector knob (2) to change the height kickout
setting value.
When the height kickout set value changes, the value
displayed on segment (10) will change accordingly.
8
9
10 11
MNEK-01-112EN
12
