OPERATOR'S STATION
1-90
Tilt, Telescopic Lever/Steering Column Tilt
Pedal
d
WARNING:
Before operating the machine, be sure that the
steering wheel is locked.

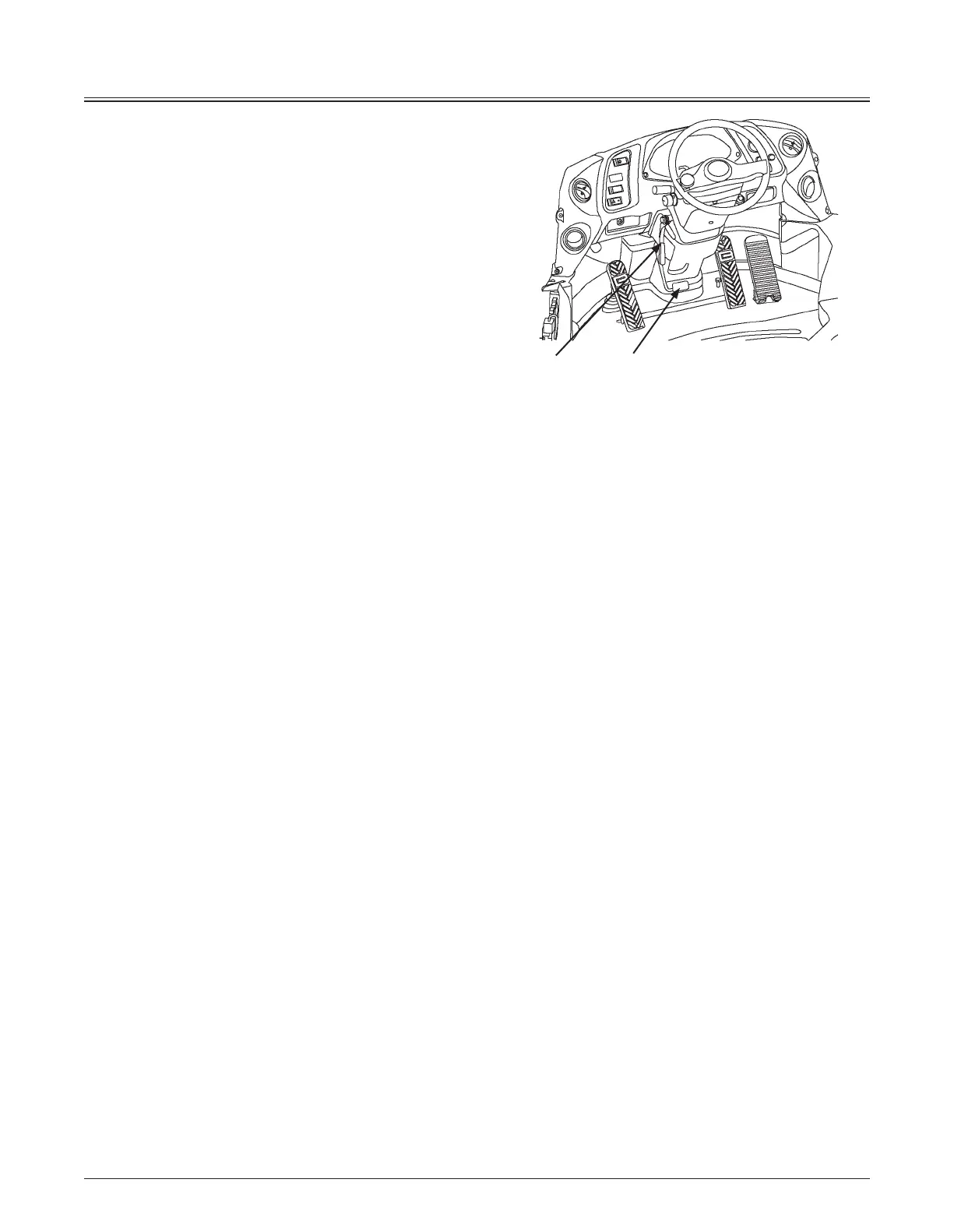

Do not operate the tilt, telescopic lever (1) and
steering column tilt pedal (2) during operation.
Before operating the machine, adjust the steering
column inclination so as to match the operator's
needs.
Pull lever (1) to set the steering column inclination to
the desired position. Push lever (1) until it contacts the
stopper, ensuring the steering column is locked.
By depressing steering column tilt pedal (2), the
steering column moves forward, and the distance
between the operator's seat and the steering wheel
increases, allowing operator to get in and out of the
machine easily.
After moving the steering column forward, pull the
steering wheel toward the operator. The steering
column will be automatically locked in the regular
position and the machine becomes operable.
d
CAUTION: Never attempt to drive the machine
while moving the steering column.
MNEC-01-037
1
2
